Description

Price

11057

BRACKET,LWR COWL.,RH

11057-0133

$14.37

23062

BRACKET-COMP,LWR,LH

23062-1247

$16.74

39156

PAD,120X10X10

39156-2502

$2.78

39156A

PAD,37X10X5

39156-2504

$1.47

39156B

PAD,20X10X8

39156-2581

$0.95

39156C

PAD,SIDE COWL.,RR,LH,UPP

39156-2621

$14.51

39156D

PAD,SIDE COWL.,RR,LH,LWR

39156-2622

$11.59

39156E

PAD,SIDE COWL.,RR,RH,UPP

39156-2623

$14.51

39156F

PAD,SIDE COWL.,RR,RH,LWR

39156-2624

$11.59

55028

COWLING,LWR,RH,P.R.WHITE

55028-0599-68N

$138.33

55028A

COWLING,LWR,RH,M.M.G.GRAY

55028-0599-68P

$138.33

55028B

COWLING,LWR,FR,LH

55028-0600

$9.69

55028C

COWLING,LWR,FR,RH

55028-0601

$9.69

55028D

COWLING,LWR,LH,P.R.WHITE

55028-0634-68N

$96.10

55028E

COWLING,LWR,LH,M.M.G.GRAY

55028-0634-68P

$96.10

55028F

COWLING,SIDE,CNT,LH

55028-0717

$87.98

55028G

COWLING,SIDE,CNT,RH

55028-0718

$87.72

55028H

COWLING,SIDE,RR,LH

55028-0797

$44.82

55028I

COWLING,SIDE,RR,RH

55028-0798

$44.82

55028J

COWLING,SIDE,LH,M.M.G.GRAY

55028-0828-68P

$339.51

55028K

COWLING,SIDE,RH,M.M.G.GRAY

55028-0829-68P

$331.95

55059

COWLING,LWR,LH,P.B.WHITE

55059-5270-54X

$227.54

55059A

COWLING,LWR,RH,P.B.WHITE

55059-5272-54X

$216.74

55060

COWLING,SIDE,LH,M.C.GRAY+GRN

55060-5031-68U

$584.81

55060A

COWLING,SIDE,RH,M.C.GRAY+GRN

55060-5033-68U

$575.71

55060B

COWLING,SIDE,LH,EBONY

55060-5115-H8

$559.15

55060C

COWLING,SIDE,RH,EBONY

55060-5116-H8

$559.15

92015

NUT,WELL,5MM

92015-1757

$7.29

92039

RIVET,HOLE 8MM

92039-0014

$3.29

92039A

RIVET

92039-0709

$2.67

92071

GROMMET

92071-1043

$5.46

92152

COLLAR

92152-1359

$7.65

92152A

COLLAR

92152-1592

$3.02

92153

BOLT,6X18

92153-0478

$2.55

92154

BOLT,SOCKET,5X16

92154-0209

$2.75

92154A

BOLT,SOCKET,5X20

92154-0210

$2.12

92154B

BOLT,FLANGED,6X14

92154-1426

$2.00

92160

DAMPER

92160-1613

$3.74

92161

DAMPER,8X16X8.6

92161-0685

$6.61

92172

SCREW,TAPPING,5X10

92172-0262

$1.34

92172A

SCREW,5X12

92172-0821

$0.85

92200

WASHER,10.4X15.9X0.5

92200-0157

$2.15

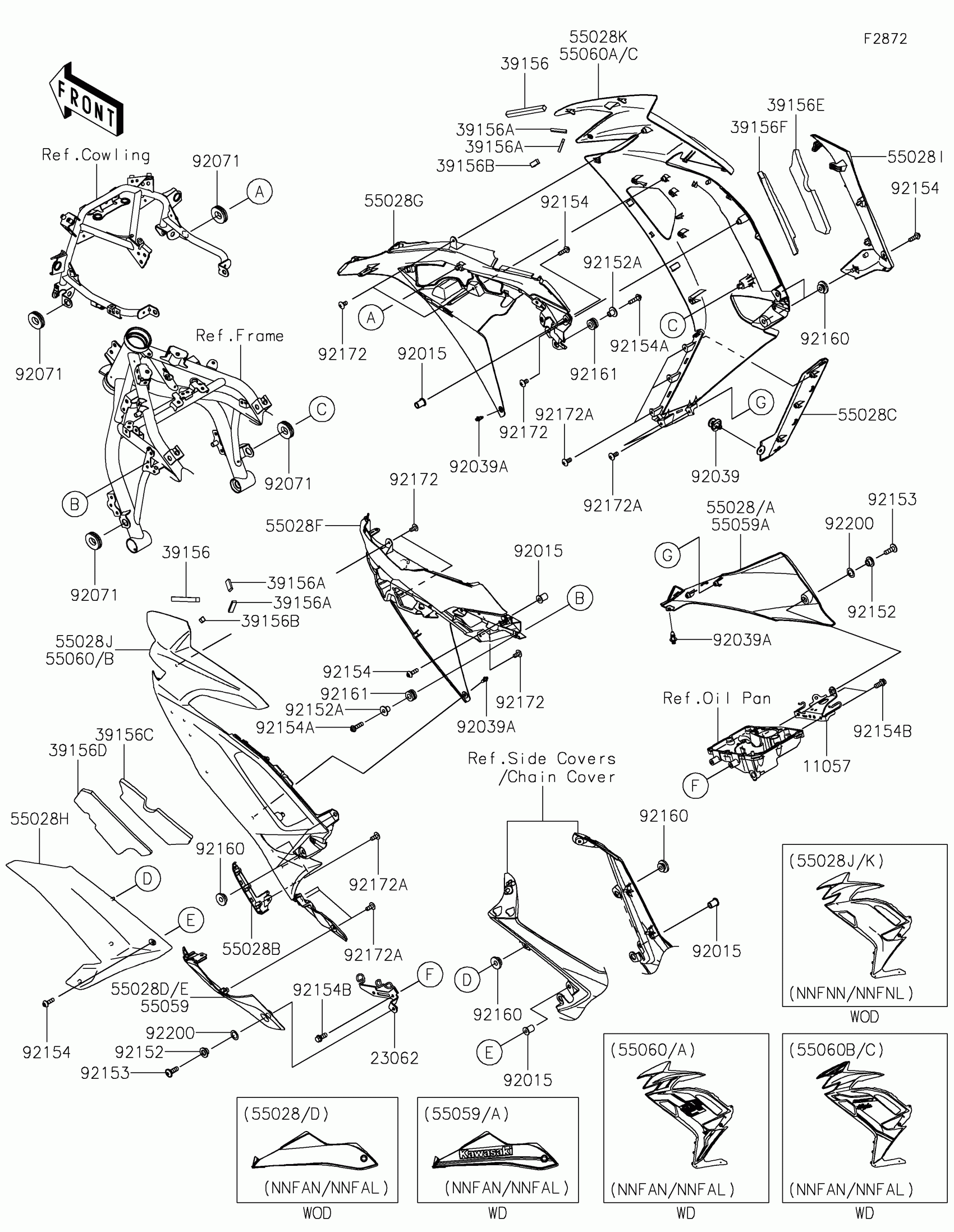

Kawasaki NINJA® 650 Cowling Lowers Diagram

BRACKET,LWR COWL.,RH

BRACKET-COMP,LWR,LH

PAD,120X10X10

PAD,37X10X5

PAD,20X10X8

PAD,SIDE COWL.,RR,LH,UPP

PAD,SIDE COWL.,RR,LH,LWR

PAD,SIDE COWL.,RR,RH,UPP

PAD,SIDE COWL.,RR,RH,LWR

COWLING,LWR,RH,P.R.WHITE

COWLING,LWR,RH,M.M.G.GRAY

COWLING,LWR,FR,LH

COWLING,LWR,FR,RH

COWLING,LWR,LH,P.R.WHITE

COWLING,LWR,LH,M.M.G.GRAY

COWLING,SIDE,CNT,LH

COWLING,SIDE,CNT,RH

COWLING,SIDE,RR,LH

COWLING,SIDE,RR,RH

COWLING,SIDE,LH,M.M.G.GRAY

COWLING,SIDE,RH,M.M.G.GRAY

COWLING,LWR,LH,P.B.WHITE

COWLING,LWR,RH,P.B.WHITE

COWLING,SIDE,LH,M.C.GRAY+GRN

COWLING,SIDE,RH,M.C.GRAY+GRN

COWLING,SIDE,LH,EBONY

COWLING,SIDE,RH,EBONY

NUT,WELL,5MM

RIVET,HOLE 8MM

RIVET

GROMMET

COLLAR

COLLAR

BOLT,6X18

BOLT,SOCKET,5X16

BOLT,SOCKET,5X20

BOLT,FLANGED,6X14

DAMPER

DAMPER,8X16X8.6

SCREW,TAPPING,5X10

SCREW,5X12

WASHER,10.4X15.9X0.5
