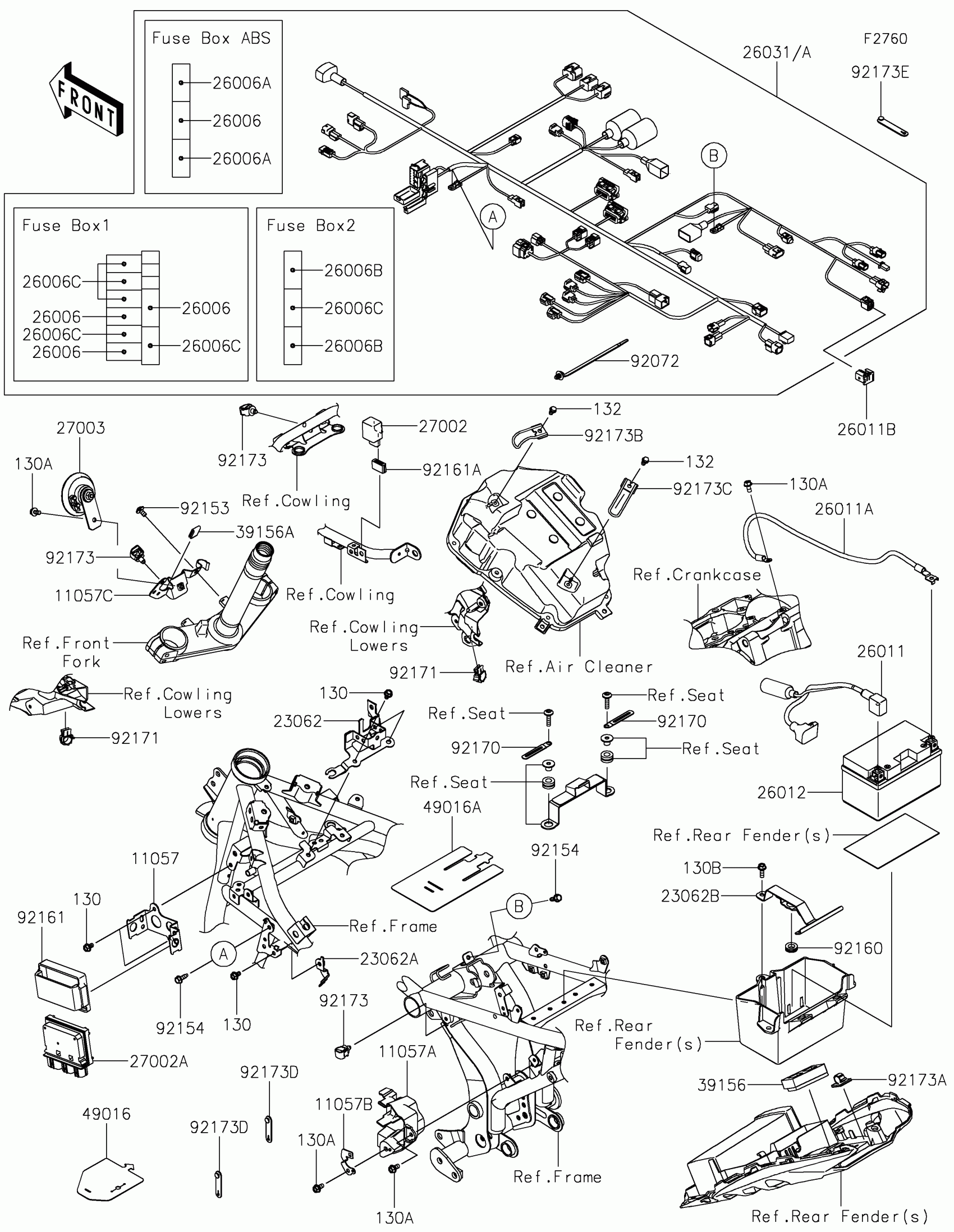

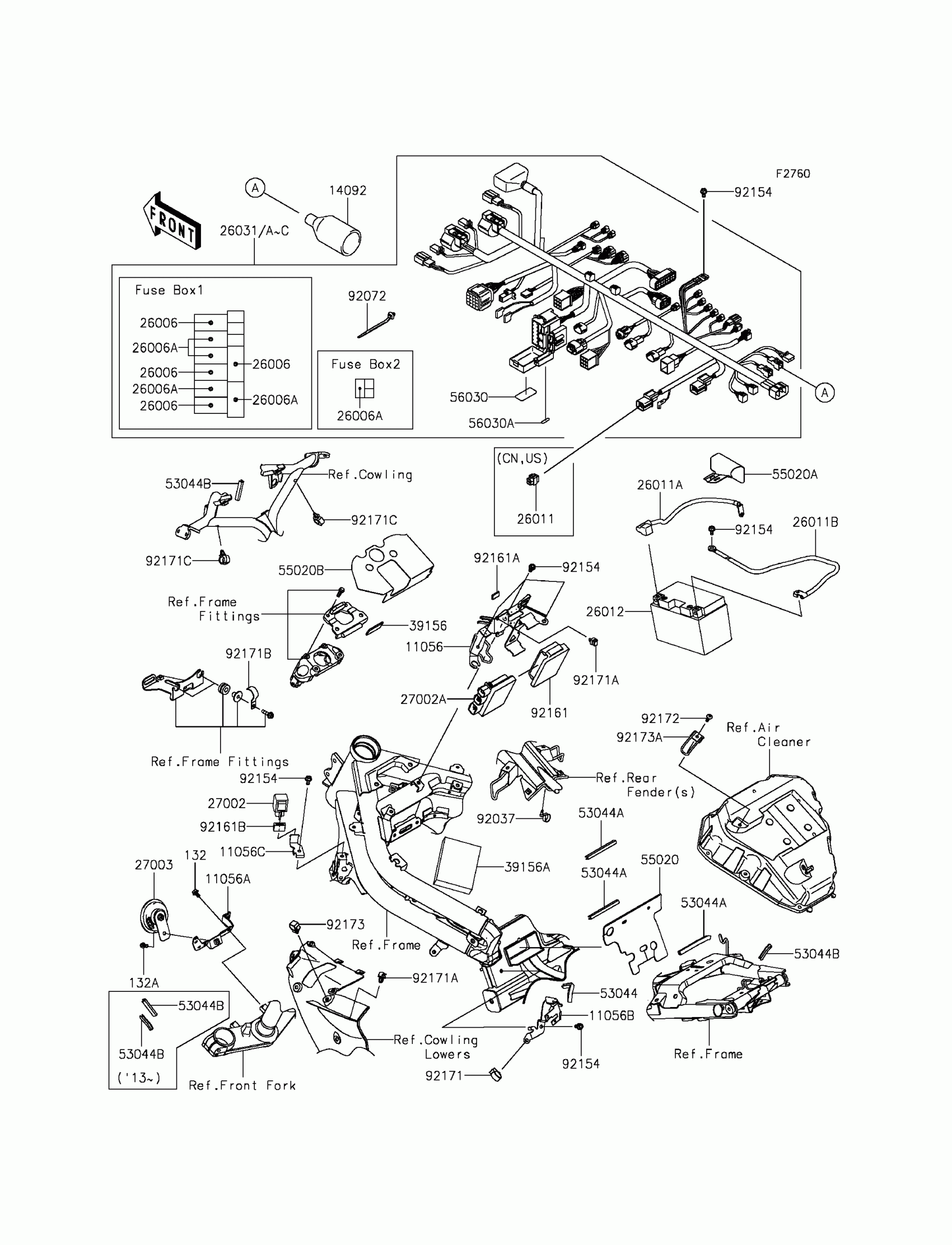

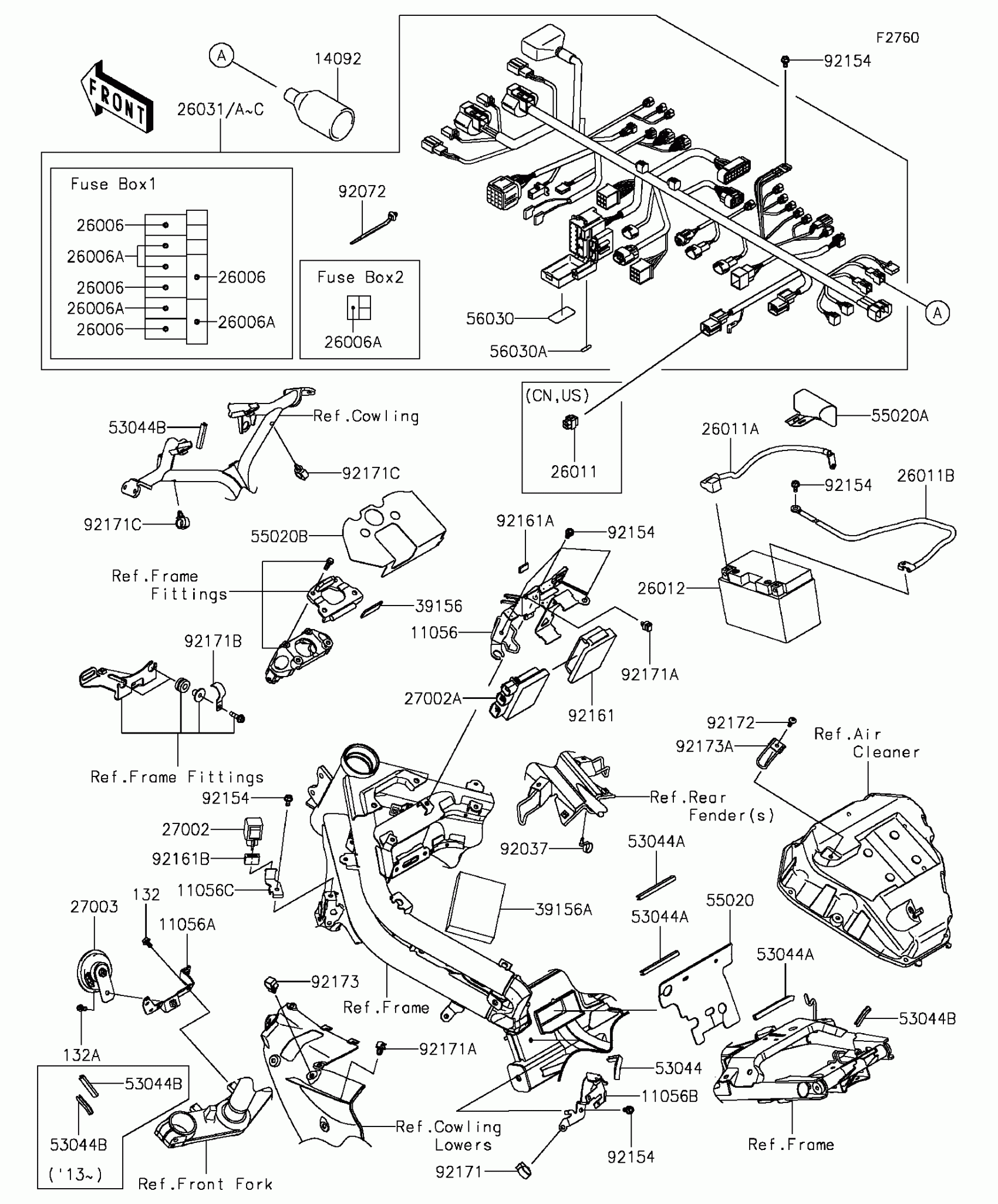

Kawasaki Ninja® 650 Chassis Electrical Equipment Diagram

#

Description
Price

11056

BRACKET,RELAY-ASSY

11056-0806

$32.03

11056A

BRACKET,HORN

11056-1821

$13.04

11056B

BRACKET,PIVOT,UPP,LH

11056-1867

$23.21

11056C

BRACKET,SIGNAL RELAY

11056-3791

$2.34

14092

COVER

14092-0902

$10.99

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$6.12

26006A

FUSE,MINI BLADE,10A,RED

26006-1078

$4.87

26011

WIRE-LEAD,SENSOR CONNECTOR

26011-0101

$15.35

26011A

WIRE-LEAD,BATTERY(+)

26011-0709

$41.79

26011B

WIRE-LEAD,BATTERY(-)

26011-0711

$36.45

26012

BATTERY,YT12A-BS,12V

26012-0556

Unavailable

26031B

HARNESS,MAIN

26031-1458

$772.52

26031C

HARNESS,MAIN

26031-1459

$772.52

27002

RELAY-ASSY,SIGNAL LAMP

27002-0006

$54.81

27002A

RELAY-ASSY

27002-0007

Unavailable

27003

HORN

27003-0065

$68.06

39156

PAD,20X40X3

39156-0831

$1.18

39156A

PAD,100X80X30

39156-0872

$14.76

53044

TRIM

53044-0018

$4.65

53044A

TRIM,L=85

53044-0556

$12.58

53044B

TRIM,L=48

53044-1324

$3.69

55020

GUARD,AIR CLEANER

55020-0760

$7.99

55020A

GUARD,MG. SWITCH

55020-0822

$8.89

55020B

GUARD,FUSE BOX

55020-0826

$13.99

56030

LABEL,FUSE BOX1

56030-0705

$4.37

56030A

LABEL,FUSE BOX2

56030-0706

$4.37

92037

CLAMP,SPEED,L=58

92037-1163

$6.57

92072

BAND,OS170-FT7(BLACK)

92072-1414

$3.74

92154

BOLT,FLANGED,6X12

92154-1050

$1.97

92161

DAMPER,RELAY BOX

92161-0203

$10.37

92161A

DAMPER,20X20,T1.0

92161-1431

$0.85

92161B

DAMPER,15X25X8.5

92161-1443

$1.94

92171

CLAMP,BRAKE HOSE

92171-0316

$3.88

92171A

CLAMP

92171-0640

$3.90

92171B

CLAMP,L=60

92171-0652

$2.61

92171C

CLAMP,13MM DIA.

92171-1415

$2.03

92172

SCREW,TAPPING,5X16

92172-0742

$1.94

92173

CLAMP,12MM DIA.

92173-0736

$5.05

92173A

CLAMP,AIR CLEANER

92173-0889

$5.65

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.71

132A

BOLT-FLANGED-SMALL,6X12

132BB0612

$2.06
