Description

Price

11056

BRACKET,LWR,LH

11056-0994

$7.50

11056A

BRACKET,LWR,RH

11056-0995

$13.99

11056B

BRACKET,FR COWLING,LH

11056-1214

$4.56

11056C

BRACKET,FR COWLING,RH

11056-1215

$4.56

11056D

BRACKET,PAD,RH

11056-1216

$7.70

11056E

BRACKET,PAD,LH

11056-1545

$7.70

39156

PAD,10X25

39156-0721

$3.70

39156A

PAD

39156-0796

$2.64

39156B

PAD

39156-0797

$8.22

39156C

PAD,152X20X10

39156-0798

$1.93

39156D

PAD,166X40X10

39156-0799

$3.32

39156E

PAD

39156-0860

$23.01

39156F

PAD

39156-0861

$13.37

39156G

PAD

39156-0871

$13.90

55028

COWLING,SIDE,LH,M.C.GRAY

55028-0370-51A

$385.27

55028A

COWLING,SIDE,LH,M.S.BLACK

55028-0370-660

$385.27

55028B

COWLING,SIDE,RH,M.C.GRAY

55028-0371-51A

$385.27

55028C

COWLING,SIDE,RH,M.S.BLACK

55028-0371-660

$385.27

55028D

COWLING,FIN,LH,M.C.GRAY

55028-0372-51A

$106.95

55028E

COWLING,FIN,LH,C.L.GREEN

55028-0372-51P

$97.98

55028F

COWLING,FIN,LH,C.P.RED

55028-0372-A5

$106.95

55028G

COWLING,FIN,RH,M.C.GRAY

55028-0373-51A

$106.95

55028H

COWLING,FIN,RH,C.L.GREEN

55028-0373-51P

$97.98

55028I

COWLING,FIN,RH,C.P.RED

55028-0373-A5

$106.95

55028J

COWLING,LWR,LH,M.F.S.BLACK

55028-0374-739

$226.44

55028K

COWLING,LWR,LH,G.SILVER

55028-0374-X1

$226.44

55028L

COWLING,LWR,RH,M.F.S.BLACK

55028-0375-739

$226.44

55028M

COWLING,LWR,RH,G.SILVER

55028-0375-X1

$226.44

55028N

COWLING,FR,LH

55028-0376

$57.69

55028O

COWLING,FR,RH

55028-0377

$55.42

92039

RIVET,HOLE 8MM

92039-0014

$3.29

92039A

RIVET

92039-0068

$2.97

92039B

RIVET

92039-0090

$3.52

92039C

RIVET

92039-1283

$2.80

92071

GROMMET

92071-0710

$1.93

92152

COLLAR

92152-1359

$7.65

92153

BOLT,6X18

92153-0478

$2.55

92154

BOLT,FLANGED,6X14

92154-0777

$2.67

92154A

BOLT,FLANGED,BUTTON,6X18

92154-0996

$2.26

92161

DAMPER,10X20X1

92161-1447

$0.85

92161A

DAMPER,12X3

92161-1448

$2.69

92172

SCREW,TAPPING,5X16

92172-0742

$1.94

92200

WASHER,10.4X15.9X0.5

92200-0157

$2.15

92210

NUT

92210-0571

$3.52

130

BOLT-FLANGED,5X12

130BA0512

$2.22

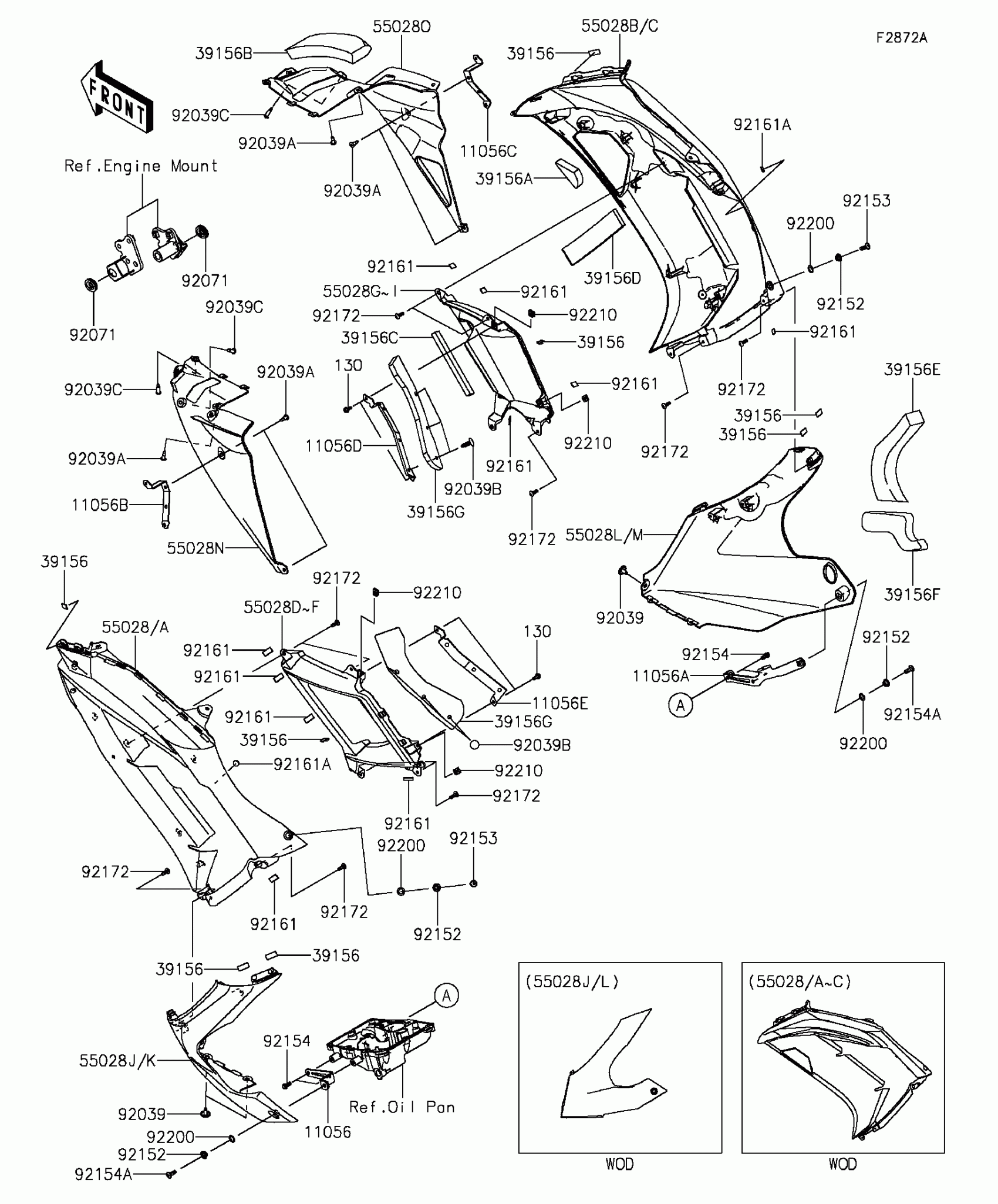

Kawasaki Ninja® 650 ABS Cowling Lowers(FGF) Diagram

BRACKET,LWR,LH

BRACKET,LWR,RH

BRACKET,FR COWLING,LH

BRACKET,FR COWLING,RH

BRACKET,PAD,RH

BRACKET,PAD,LH

PAD,10X25

PAD

PAD

PAD,152X20X10

PAD,166X40X10

PAD

PAD

PAD

COWLING,SIDE,LH,M.C.GRAY

COWLING,SIDE,LH,M.S.BLACK

COWLING,SIDE,RH,M.C.GRAY

COWLING,SIDE,RH,M.S.BLACK

COWLING,FIN,LH,M.C.GRAY

COWLING,FIN,LH,C.L.GREEN

COWLING,FIN,LH,C.P.RED

COWLING,FIN,RH,M.C.GRAY

COWLING,FIN,RH,C.L.GREEN

COWLING,FIN,RH,C.P.RED

COWLING,LWR,LH,M.F.S.BLACK

COWLING,LWR,LH,G.SILVER

COWLING,LWR,RH,M.F.S.BLACK

COWLING,LWR,RH,G.SILVER

COWLING,FR,LH

COWLING,FR,RH

RIVET,HOLE 8MM

RIVET

RIVET

RIVET

GROMMET

COLLAR

BOLT,6X18

BOLT,FLANGED,6X14

BOLT,FLANGED,BUTTON,6X18

DAMPER,10X20X1

DAMPER,12X3

SCREW,TAPPING,5X16

WASHER,10.4X15.9X0.5

NUT

BOLT-FLANGED,5X12
