Description

Price

11045

BRACKET,COWLING

11045-1538

Unavailable

14024

COVER,HEAD LAMP,C.P.RED

14024-1408-A5

Unavailable

14024A

COVER,HEAD LAMP,EBONY

14024-1408-H8

Unavailable

14024B

COVER,COWLING,INNER,RH

14024-1538

Unavailable

14024C

COVER,TRIM END

14025-1756

$7.60

39154

WINDSHIELD

39154-1107

Unavailable

53044

TRIM,WINDSHIELD

53044-1130

Unavailable

53044A

TRIM,COWLING,LH

53044-1193

Unavailable

53044B

TRIM,COWLING,RH

53044-1194

Unavailable

53044C

TRIM

53044-1198

$15.92

55028

COWLING,LWR,EBONY

55028-1156-H8

$339.46

55028A

COWLING,UPP,LH,EBONY/GRAY

55028-5359-T4

$616.53

55028B

COWLING,UPP,RH.EBONY/GRAY

55028-5360-T4

$616.53

55028C

COWLING,UPP,LH,C.P.RED

55028-5377-A5

$617.19

55028D

COWLING,UPP,RH,C.P.RED

55028-5378-A5

$616.53

55028E

COWLING,LWR,RED/GRAYSTONE

55028-5379-CF

$541.69

56001

MIRROR-ASSY,LH

56001-1317

$96.18

56001A

MIRROR-ASSY,RH

56001-1318

$87.61

92002

BOLT,SOCKET,6X18,BLACK

92002-1514

$6.22

92002A

BOLT,SOCKET,6X18,WHITE

92002-1889

$6.15

92009

SCREW,6X14

92009-1288

$3.92

92009A

SCREW,5X16,BLACK

92009-1301

$3.13

92009B

SCREW,5X20,BLACK

92009-1453

$3.96

92009C

SCREW,5X20,WHITE

92009-1491

$5.11

92015

NUT,CAP,8MM,BLACK

92015-1174

$5.00

92015A

NUT,WELL,5MM

92015-1640

$7.29

92015B

NUT,5MM

92015-1710

$6.22

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$3.92

92022A

WASHER,6.5X16X1.0

92022-1654

$3.65

92027

COLLAR,L=6.5,WHITE

92027-1886

$13.68

92071

GROMMET

92071-056

$4.26

92075

DAMPER

92075-1634

$4.69

92075A

DAMPER,MIRROR

92075-1929

$6.82

92075B

DAMPER

92075-1936

$5.47

92143

COLLAR,L=6.5,BLACK

92143-1086

$16.16

92143A

COLLAR,L=19.6

92143-1100

$7.79

92143B

COLLAR,BLACK

92143-1226

$11.49

92143C

COLLAR,WHITE

92143-1273

$16.72

92150

BOLT,SOCKET,6X30,BLACK

92002-1945

$5.52

92150A

BOLT,SOCKET,6X30,WHITE

92002-1998

Unavailable

130

BOLT-FLANGED,8X12,BLACK

130C0812

$0.72

221

SCREW-CSK-CROSS

221C0630

$1.69

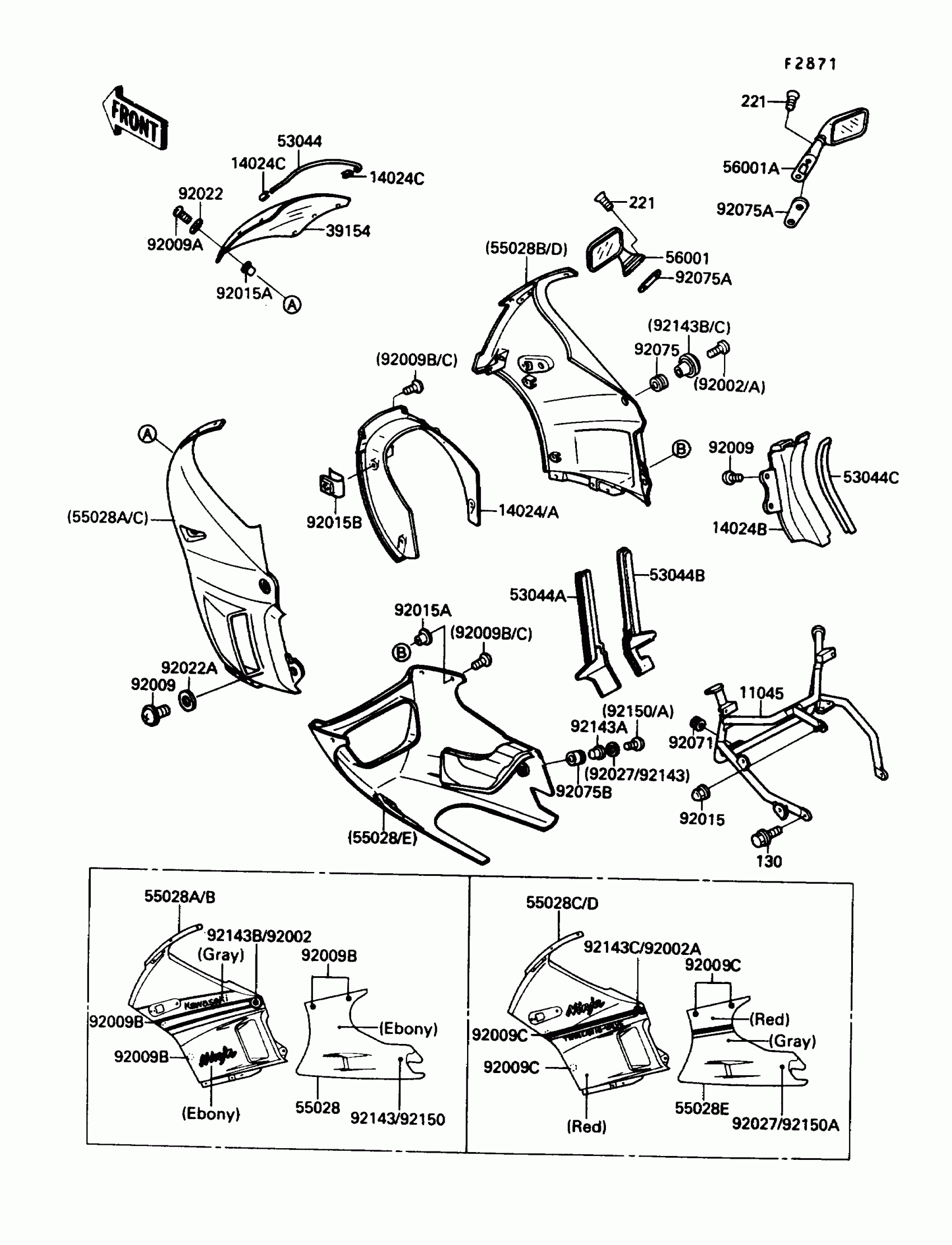

Kawasaki NINJA® 600R Cowling (ZX600-C1) Diagram

BRACKET,COWLING

COVER,HEAD LAMP,C.P.RED

COVER,HEAD LAMP,EBONY

COVER,COWLING,INNER,RH

COVER,TRIM END

WINDSHIELD

TRIM,WINDSHIELD

TRIM,COWLING,LH

TRIM,COWLING,RH

TRIM

COWLING,LWR,EBONY

COWLING,UPP,LH,EBONY/GRAY

COWLING,UPP,RH.EBONY/GRAY

COWLING,UPP,LH,C.P.RED

COWLING,UPP,RH,C.P.RED

COWLING,LWR,RED/GRAYSTONE

MIRROR-ASSY,LH

MIRROR-ASSY,RH

BOLT,SOCKET,6X18,BLACK

BOLT,SOCKET,6X18,WHITE

SCREW,6X14

SCREW,5X16,BLACK

SCREW,5X20,BLACK

SCREW,5X20,WHITE

NUT,CAP,8MM,BLACK

NUT,WELL,5MM

NUT,5MM

WASHER,NYLON,5.3X11.5X1.5

WASHER,6.5X16X1.0

COLLAR,L=6.5,WHITE

GROMMET

DAMPER

DAMPER,MIRROR

DAMPER

COLLAR,L=6.5,BLACK

COLLAR,L=19.6

COLLAR,BLACK

COLLAR,WHITE

BOLT,SOCKET,6X30,BLACK

BOLT,SOCKET,6X30,WHITE

BOLT-FLANGED,8X12,BLACK

SCREW-CSK-CROSS
