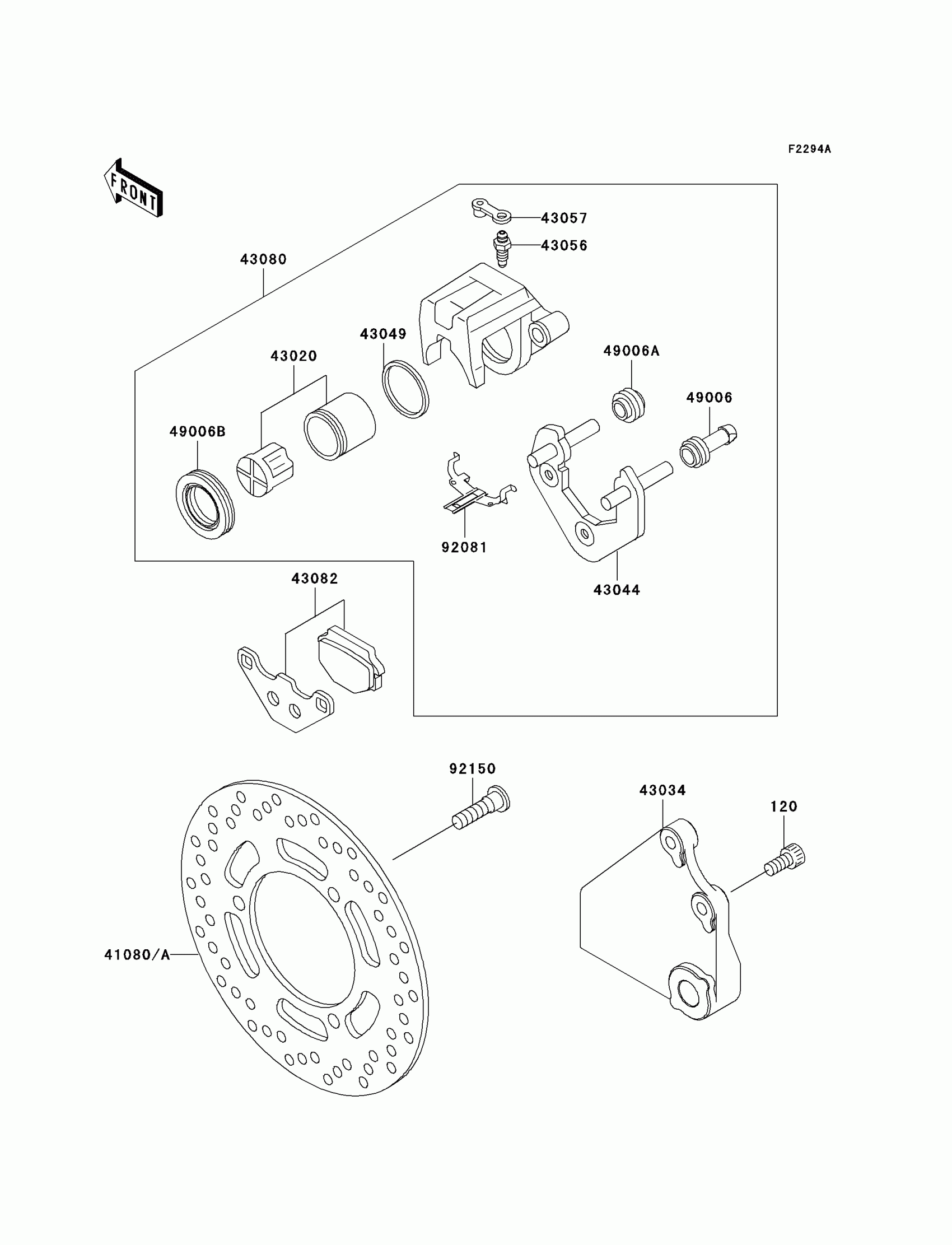

Kawasaki Ninja® 500R Rear Brake(D11/D12) Diagram

Description

Price

120

BOLT-SOCKET,8X16

120P0816

$4.15

41080

DISC,RR,C.GRAY

41080-0033-FB

$333.28

43020

PISTON-COMP-BRAKE

43020-1082

$72.80

43034

HOLDER-BRAKE,REAR CALIPER

43034-1131

$132.19

43044

HOLDER-COMP-CALIPER,RR

43044-1075

$166.48

43049

PACKING,PISTON SEAL

43049-1095

$13.10

43056

BREATHER-BRAKE

43056-1054

$24.57

43057

CAP-BREATHER

43057-003

$2.45

43080

CALIPER-SUB-ASSY,RR,BLACK

43080-5021-DJ

$414.96

43082

PAD-ASSY-BRAKE

43082-1163

$58.88

49006

BOOT,CALIPER

49006-1054

$11.61

49006A

BOOT,CALIPER

49006-1055

$7.27

49006B

BOOT,PISTON

49006-1091

$17.39

92081

SPRING,PAD

92081-1341

$14.76

92150

BOLT,SOCKET,8X30

92150-1771

$4.69
