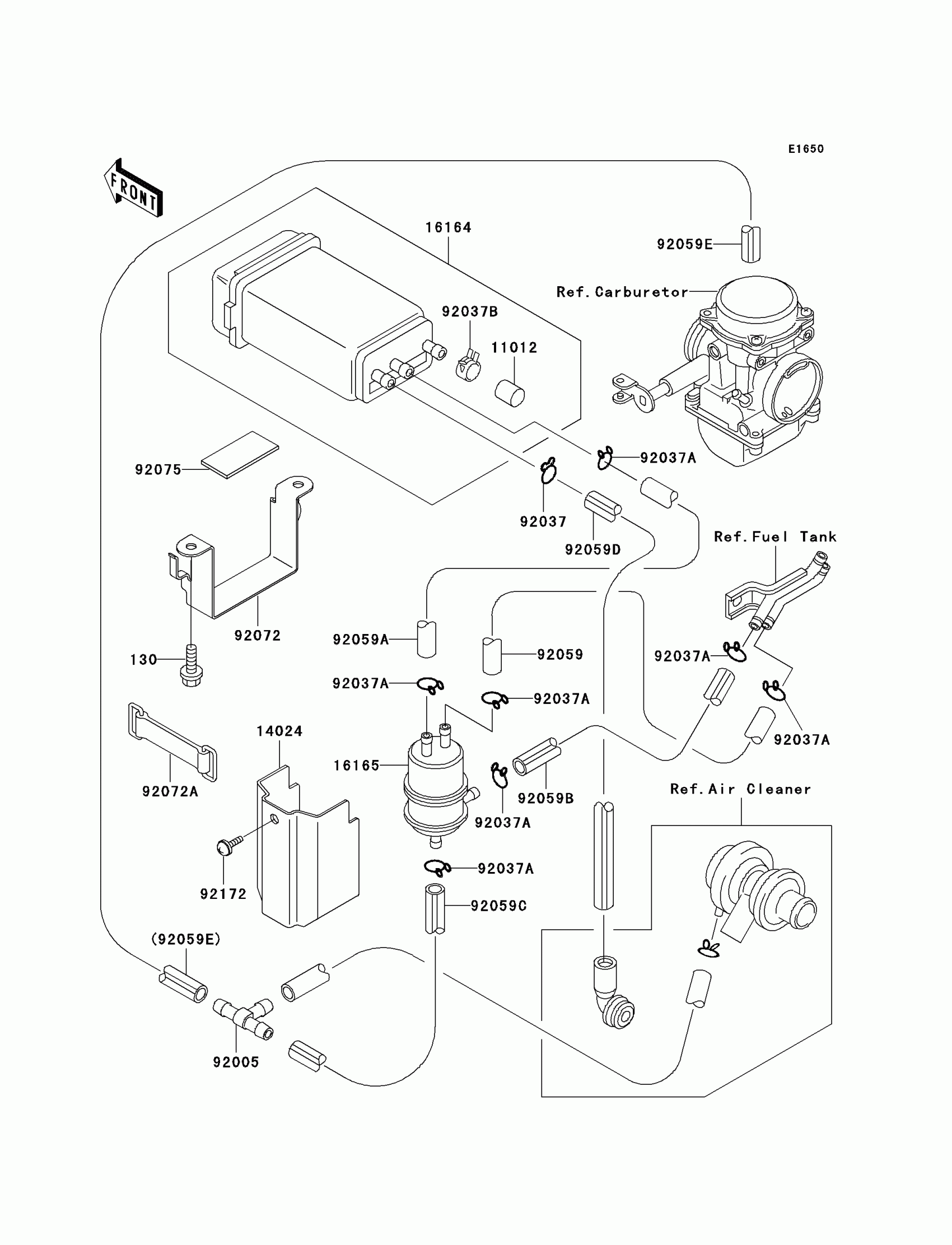

Kawasaki Ninja® 500R Fuel Evaporative System(CA) Diagram

Description

Price

130

BOLT

130B0612

$0.67

11012

CAP,CANISTER

11012-1388

$8.51

14024

COVER,SEPARATOR

14024-1399

$35.51

16164

CANISTER

16164-1054

$130.07

16165

SEPARATOR

16165-1001

$90.01

92005

FITTING,TUBE,T-TYPE

92005-1017

Unavailable

92009

SCREW,6X10

92009-1402

$2.41

92037

CLAMP-HOSE

92037-1104

$1.45

92037A

CLAMP,TUBE

92037-147

$7.34

92037B

CLAMP,CANISTER

92037-1512

$6.57

92059

TUBE,5X10X170,BLUE

92059-1496

$23.01

92059A

TUBE,5X10X320,BLUE

92059-1499

$23.01

92059B

TUBE,5X10X250,RED

92059-1809

Unavailable

92059C

TUBE,5X10X380,WHITE

92059-1824

$21.63

92059D

TUBE,7X12X410,GREEN

92059-1825

$18.22

92059E

TUBE,5X10X160,WHITE

92059-1826

$32.14

92072

BAND,CANISTER

92072-1216

$20.98

92072A

BAND,L=50

92072-1419

$16.08

92075

DAMPER

92075-1830

$5.59
