Starter Motor(F15/F16)

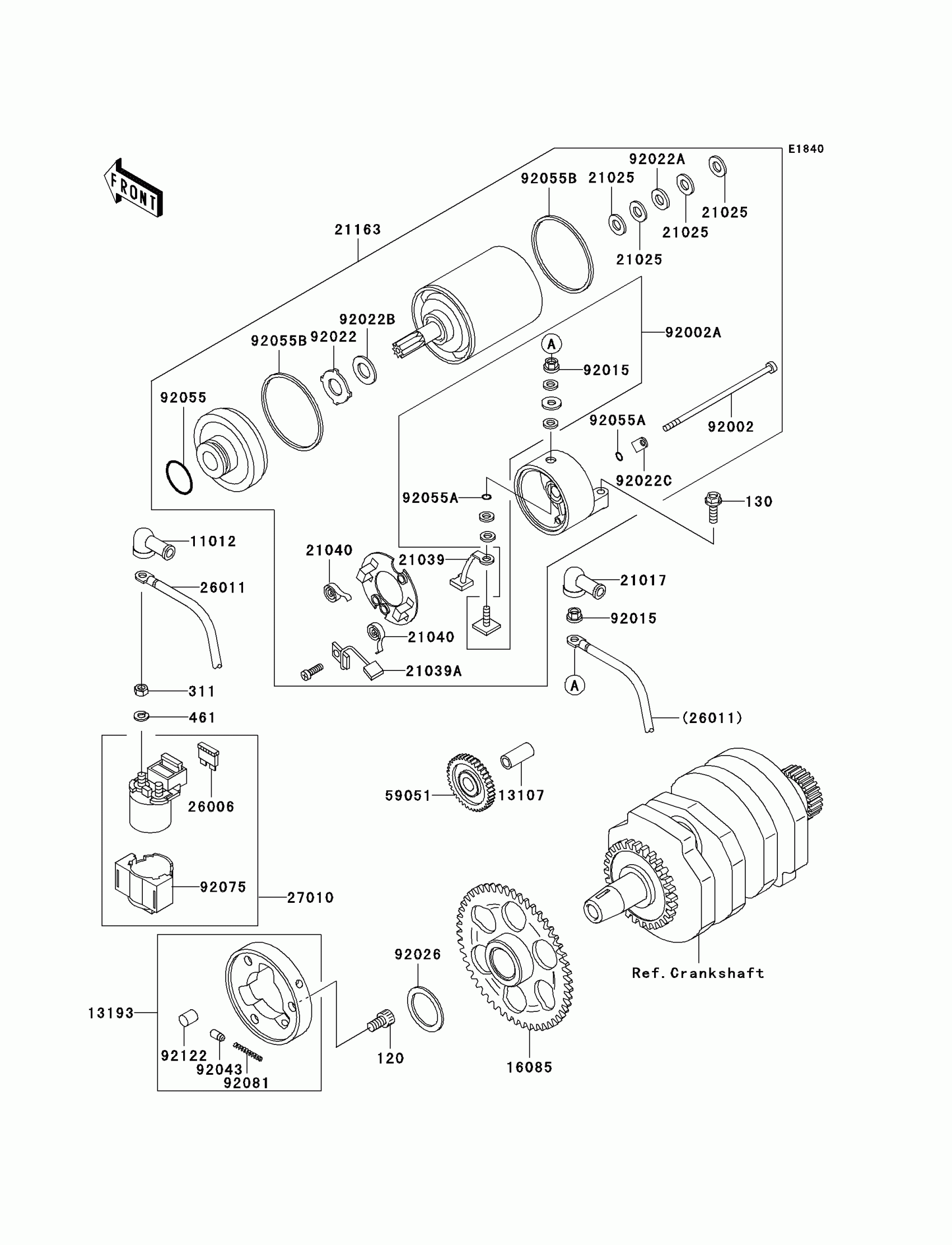

Kawasaki Ninja® 250R Starter Motor(F15/F16) Diagram
#
Description
Price
120
BOLT-SOCKET,8X14
120P0814
$4.35
130
BOLT-FLANGED
130J0620
$0.43
311
NUT 6MM
311B0600
$0.93
461
WASHER SPRING 6MM
461F0600
$0.69
11012
CAP,TERMINAL
11012-1354
$10.19
13107
SHAFT,7.8X12X26.5
13107-1176
$10.56
13193
CLUTCH-ASSY-ONEWAY
13193-1002
$116.39
16085
GEAR,ONEWAY CLUTCH,65T
16085-1166
Unavailable
21017
GROMMET,STARTER TERMINAL
21017-017
$9.43
21025
WASHER,9.1X18X0.2
21025-011
Unavailable
21039
BRUSH,CARBON(+)
21039-1001
$34.49
21039A
BRUSH,CARBON(-)
21039-1056
$34.49
21040
SPRING-BRUSH
21040-1053
$10.33
21163
STARTER-ELECTRIC
21163-1221
$534.58
26006
FUSE,BLADE,30A,GREEN
26006-1006
$4.96
26011
WIRE-LEAD
26011-1376
$76.50
27010
SWITCH,MAGNETIC
27010-1213
Unavailable
59051
GEAR-SPUR,IDLE
59051-1154
$123.35
92002
BOLT,STARTER
92002-1818
Unavailable
92002A
BOLT,TERMINAL
92002-1819
$33.69
92015
NUT,STARTER MOTOR
92015-1476
$4.31
92022
WASHER,THRUST SUPPORT
92022-1130
Unavailable
92022A
WASHER,9.1X18X0.8
92022-1132
$6.22
92022B
WASHER,22X12.2X0.5
92022-1714
Unavailable
92022C
WASHER,LOCK
92022-1825
Unavailable
92026
SPACER,25X40X1
92026-1004
$7.24
92043
PIN
92043-132
$6.22
92055
RING-O
92055-1303
$11.79
92055A
RING-O,4.5X2.0
92055-1370
$4.69
92055B
RING-O
92055-1418
$11.79
92075
DAMPER,MAGNETIC SWITCH
92075-1863
Unavailable
92081
SPRING,COIL
92081-159
$3.89
92122
ROLLER
92122-006
$6.22
