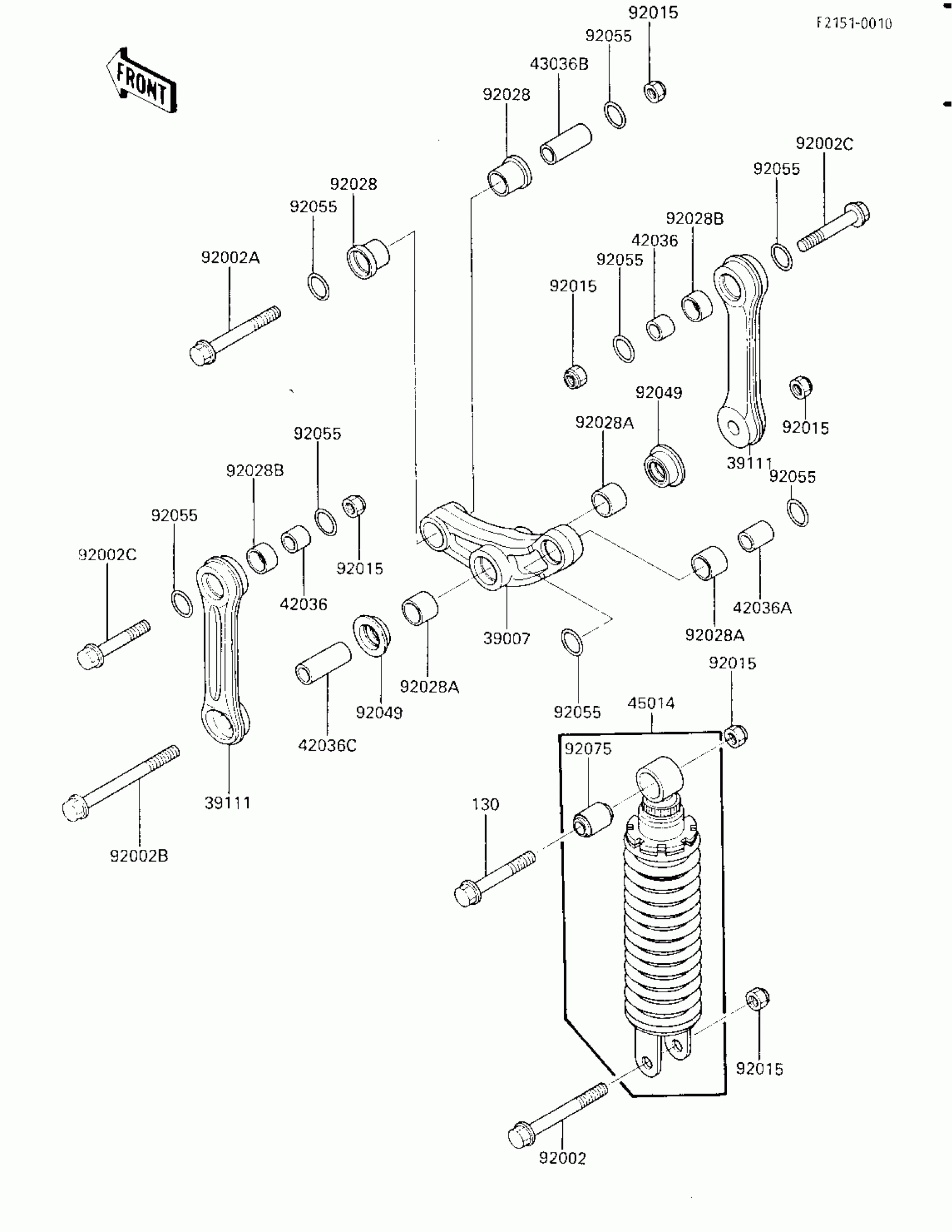

Kawasaki Ninja® 250R REAR SUSPENSION/SHOCK ABSORBER Diagram

Description

Price

39007

ARM-SUSP,UNI TRAK

39007-1093

$184.74

39111

ROD-TIE,UNI TRAK

39111-1021

$92.35

42036

SLEEVE,12.1X20X22

42036-1076

$17.56

42036A

SLEEVE,12.1X20X32

42036-1077

$16.69

42036B

SLEEVE,ARM,FR

42036-1078

$25.27

42036C

SLEEVE,12.1X20X70

42036-1079

$28.64

45014

SHOCKABSORBER

45014-1339

$582.42

92002

BOLT,12X55

92002-1062

$6.90

92002A

BOLT,12X90

92002-1063

$17.55

92002B

BOLT,12X110

92002-1064

$18.83

92002C

BOLT,12X45

92002-1065

$11.91

92015

NUT,LOCK,12MM

92015-1375

$7.71

92028

BUSHING,FLANGED

92028-1200

$7.36

92028A

BUSHING

92028-1598

$5.08

92028B

BUSHING

92028-1599

$27.10

92049

SEAL-OIL,ARM

92049-1109

$9.28

92055

RING-O,19.8X2.2

92055-1215

$4.31

92075

DAMPER,SHOCKABSORBER

92075-1497

$35.38

130

BOLT-FLANGED

130G1250

$6.28
