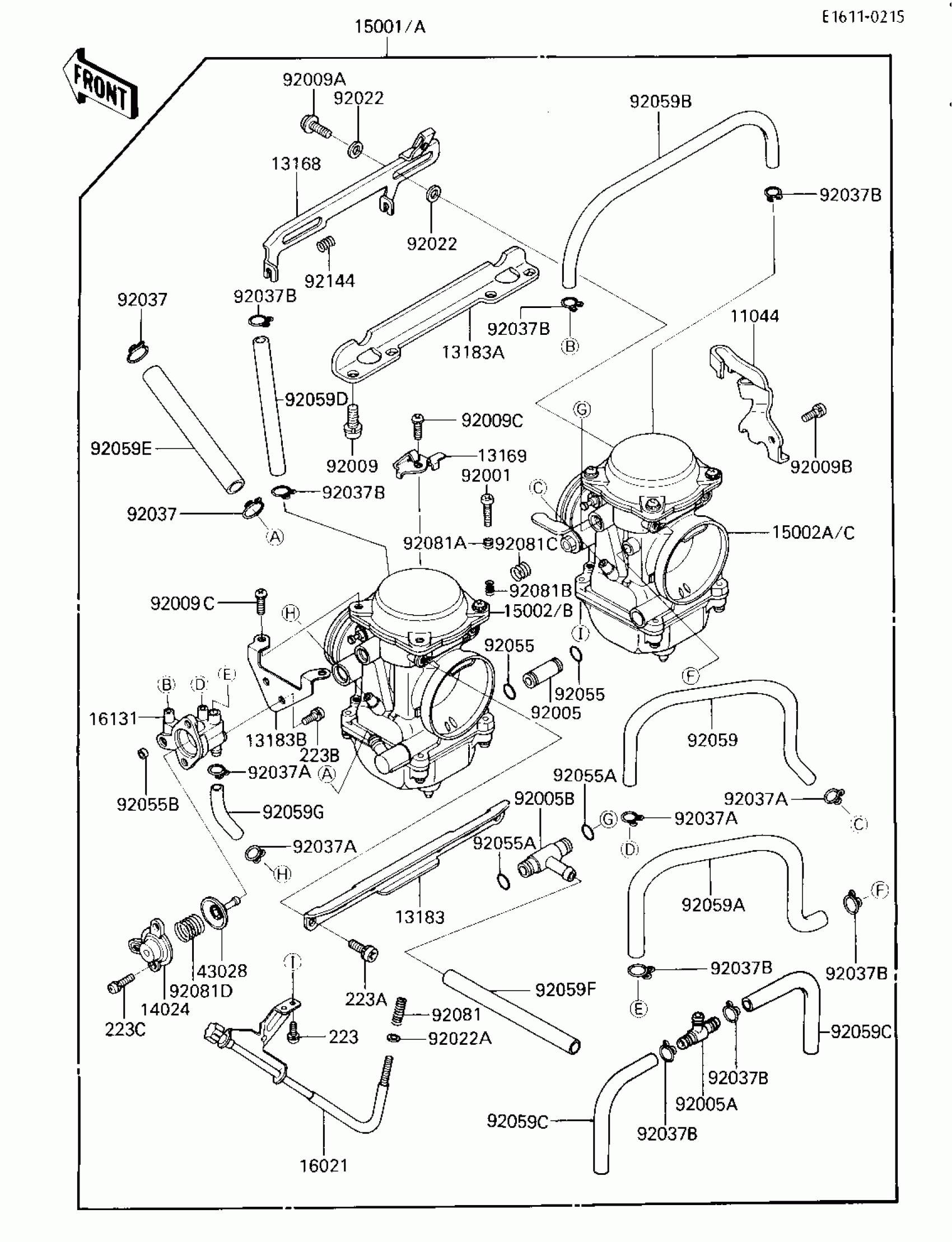

Kawasaki Ninja® 250R CARBURETOR ASSY Diagram

#

Description
Price

11044

BRACKET,THROTTLE CABLE

11044-1061

Unavailable

13168

LEVER,STARTER

13168-1330

$68.01

13169

PLATE,STARTER CABLE

13169-1965

$37.44

13183

PLATE,CARBURETOR STAY,UPP

13183-1029

$69.14

13183A

PLATE,CARBURETOR STAY,LWR,6MM

13183-1030

Unavailable

13183B

PLATE,AIR CUT VALVE

13183-1031

$40.60

14024

COVER,AIR CUT VALVE

14024-1327

$59.65

15001

CARBURETOR-ASSY

15001-1262

$739.99

15001A

CARBURETOR-ASSY

15001-1263

$739.99

15002

CARBURETOR,LH

15002-1382

$427.85

15002A

CARBURETOR,RH

15002-1383

$428.63

15002B

CARBURETOR,LH

15002-1384

$428.63

15002C

CARBURETOR,RH

15002-1385

$428.63

16021

SCREW-THROTTLE STOP

16021-1114

$129.22

16131

BODY-VALVE,DIAPHRAGM

16131-1062

$70.29

43028

DIAPHRAGM,5.9MM,AIR CUT VALVE

43028-1053

Unavailable

92001

BOLT,THROTTLE ADJUST

92001-1998

$16.94

92005

FITTING,FUEL,I-TYPE

92005-1109

$33.74

92005A

FITTING,FUEL,T-TYPE

92005-1112

$14.10

92005B

FITTING,T-TYPE

92005-1125

$25.81

92009

SCREW,6X16

92009-1129

Unavailable

92009A

SCREW

92009-1262

$6.61

92009B

SCREW,5X10

92009-1365

$7.34

92009C

SCREW,4X18

92009-1446

$6.15

92022

WASHER,6.1X11X0.8,POLYACETAL

92022-1199

$4.60

92022A

WASHER,PLAIN,STOP SPRING

92022-1480

$5.00

92037

CLAMP,FUEL TUBE

92037-1075

$3.96

92037A

CLAMP,TUBE

92037-1142

$4.31

92037B

CLAMP,TUBE

92037-1142

$4.31

92037B

CLAMP,TUBE

92037-1142

$4.31

92055

RING-O

92055-1004

$4.31

92055A

RING-O

92055-1223

$5.52

92055B

RING-O

92055-1245

$5.57

92059

TUBE,3.5X6.5X180

92059-1140

$23.25

92059A

TUBE,5X9X160

92059-1201

$21.48

92059B

TUBE,5X9X180

92059-1377

$25.03

92059C

TUBE,5X9X90

92059-1627

$11.40

92059D

TUBE,5X9X120

92059-1713

$25.03

92059E

TUBE,7.3X12.5X170

92059-1719

$17.83

92059F

TUBE,6.5X9.5X230

92059-1720

$17.44

92059G

TUBE,3.5X6.5X26

92059-1722

$23.25

92081

SPRING,THROTTLE STOP SCREW

92081-1617

$6.11

92081A

SPRING

92081-1620

$4.96

92081B

SPRING,THROTTLE ADJUST LWR

92081-1621

$5.18

92081C

SPRING,THROTTLE ADJUST CNT

92081-1622

$10.67

92081D

SPRING,AIR CUT VALVE

92081-1719

$12.62

92144

SPRING,THROTTLE ADJUST UPP

92144-1048

$10.46

223

SCREW-PAN-WS-CROS,4X16

223C0416

$4.12

223A

SCREW-PAN-WS-CROS,5X10

223C0510

$4.12

223B

SCREW-PAN-WS-CROS,4X8

223D0408

$1.28

223C

SCREW-PAN-WS-CROS,4X10

223D0410

Unavailable
