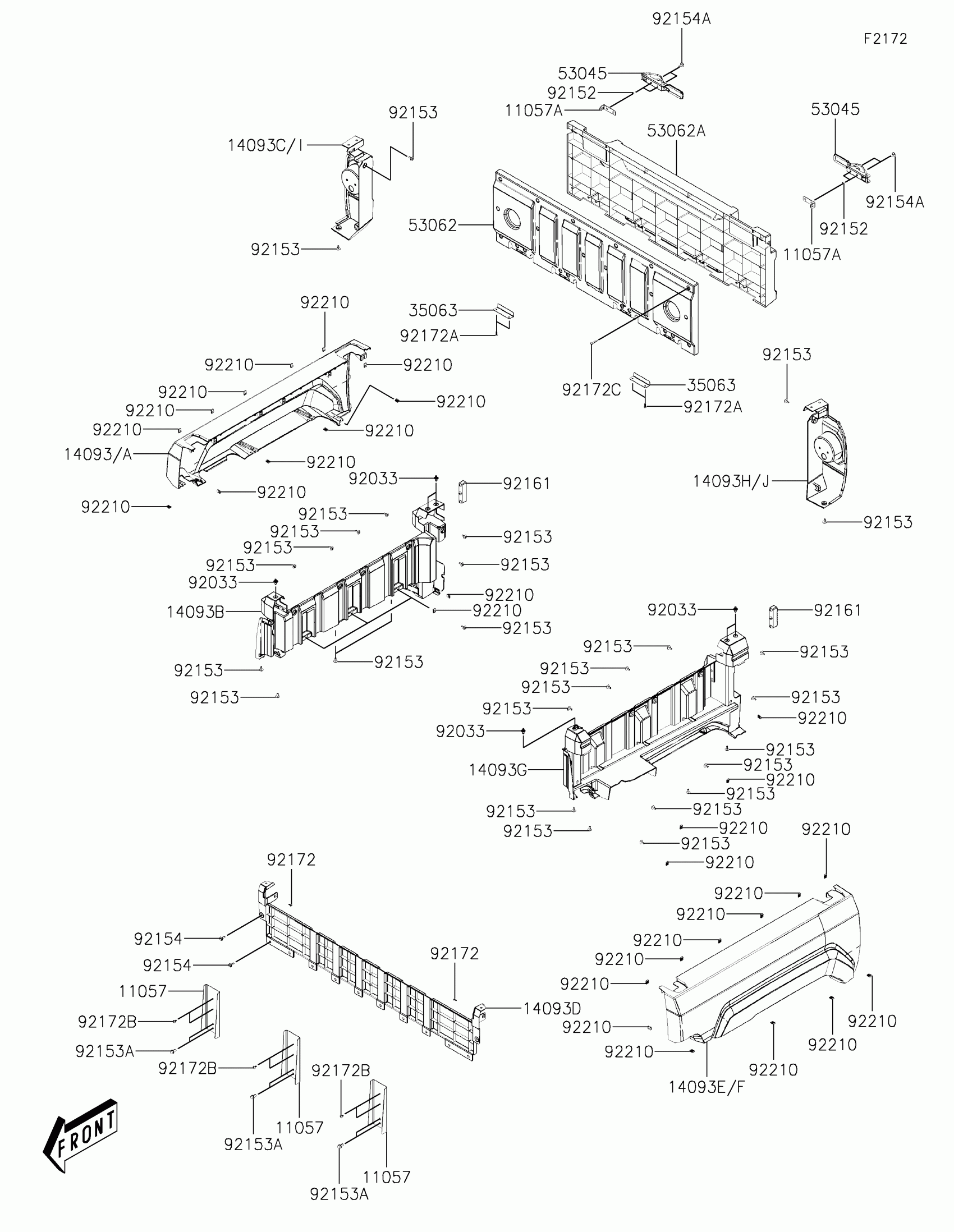

Kawasaki MULE PRO-MX™ EPS LE Rear Fender(s) Diagram

#

Description
Price

11057

BRACKET,CARGO BED

11057-Y016

$17.35

11057A

BRACKET,STOPPER

11057-Y018

$13.89

14093

COVER,SIDE,OUTER,RH,S.BLACK

14093-Y031-933

$249.55

14093A

COVER,SIDE,OUTER,RH,F.RED

14093-Y031-947

$249.55

14093B

COVER,SIDE,INNER,RH,S.BLACK

14093-Y032-933

$150.68

14093C

COVER,TAIL LIGHT,RH,S.BLACK

14093-Y033-933

$28.33

14093D

COVER,FRONT CARRIER

14093-Y034

$109.47

14093E

COVER,SIDE,OUTER,LH,S.BLACK

14093-Y035-933

$249.55

14093F

COVER,SIDE,OUTER,LH,F.RED

14093-Y035-947

$249.55

14093G

COVER,SIDE,INNER,LH,S.BLACK

14093-Y036-933

$150.68

14093H

COVER,TAIL LIGHT,LH,S.BLACK

14093-Y037-933

$28.33

14093I

COVER,TAIL LIGHT,RH,S.BLACK

14093-Y040-933

Unavailable

14093J

COVER,TAIL LIGHT,LH,S.BLACK

14093-Y041-933

Unavailable

35063

STAY,HINGE

35063-Y044

$6.77

53045

HOOK-ASSY

53045-Y002

$43.14

53062

GATE-TAIL,INNER

53062-Y002

$146.74

53062A

GATE-TAIL,OUTER,S.BLACK

53062-Y003-933

$108.69

92033

RING-SNAP

92033-Y033

$2.37

92152

COLLAR,TAIL GATE

92152-Y075

$5.03

92153

BOLT,5X16

92153-Y013

$0.76

92153A

BOLT,FLANGE,8X16

92153-Y032

$1.47

92154

BOLT,6X18

92154-Y177

$5.66

92154A

BOLT,6X20

92154-Y227

$4.16

92161

DAMPER

92161-Y053

$17.06

92172

SCREW,4X12

92172-Y019

$1.02

92172A

SCREW,TAPPING,5X16

92172-Y020

$1.63

92172B

SCREW,TAPPING,5X12

92172-Y038

$1.74

92172C

SCREW,TAPPING,5X30

92172-Y083

$2.37

92210

NUT,5MM

92210-Y016

$1.40
