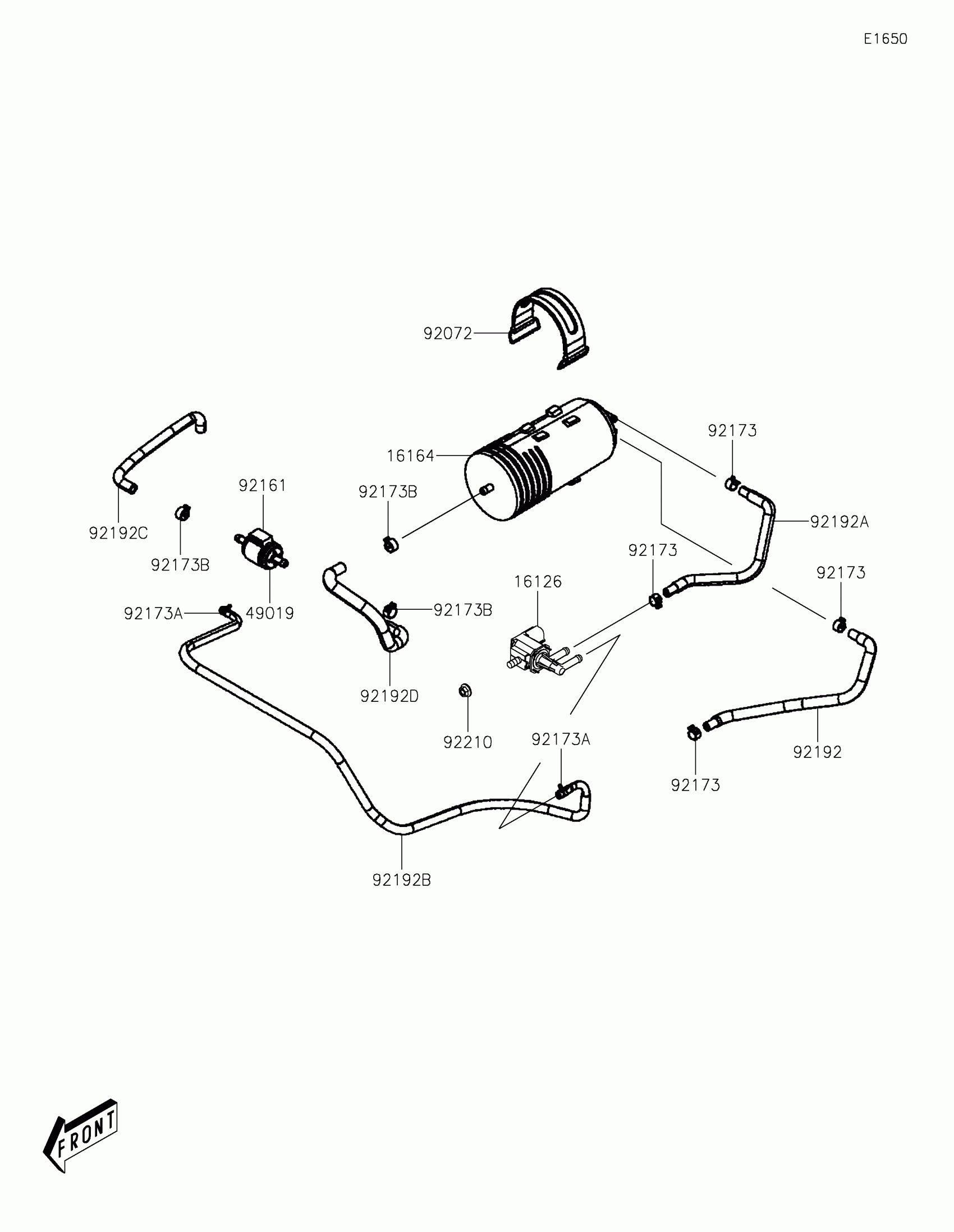

Kawasaki MULE PRO-MX™ EPS Fuel Evaporative System(CA) Diagram

Description

Price

16126

VALVE,SOLENOID

16126-0705

$106.99

16164

CANISTER

16164-Y003

$256.27

49019

FILTER-FUEL

49019-Y002

$18.95

92072

BAND,L=168

92072-1306

$13.75

92161

DAMPER

92161-Y039

$4.26

92173

CLAMP

92173-Y083

$4.77

92173A

CLAMP

92173-Y085

$5.38

92173B

CLAMP

92173-Y086

$3.75

92192

TUBE,CHECK VALVE-CANISTER

92192-Y063

$19.58

92192A

TUBE,CANISTER-VALVE

92192-Y064

$25.93

92192B

TUBE,VALVE-VACUUM

92192-Y065

$26.63

92192C

TUBE,AIR FILTER

92192-Y066

$17.47

92192D

TUBE,AIR FILTER-CANISTER

92192-Y067

$25.35

92210

NUT,6MM

92210-Y026

$1.40
