Description

Price

14093

COVER,SEAT

14093-Y028

$11.37

49031

LATCH,RH

49031-Y001

$127.66

49031A

LATCH,LH

49031-Y002

$127.66

53009

HINGE,RH

53009-Y002

$35.02

53009A

HINGE

53009-Y003

$3.20

53009B

HINGE,LH

53009-Y004

$35.02

53009C

HINGE,SEAT,RH

53009-Y005

$38.25

53009D

HINGE,SEAT,LH

53009-Y006

$38.25

53061

BELT-SEAT,LH

53061-Y001

$311.02

53061A

BELT-SEAT,RH

53061-Y002

$311.02

53066

SEAT-ASSY,BOTTOM

53066-Y006

$387.15

53066A

SEAT-ASSY,BACK

53066-Y008

$345.42

55020

GUARD,RH,S.BLACK

55020-Y020-933

$130.05

55020A

GUARD,LH,S.BLACK

55020-Y021-933

$130.05

56007

TOOL-KIT

56007-Y005

$54.88

92033

RING-SNAP

92033-Y040

$2.92

92039

RIVET,4.8X12.8

92039-Y005

$5.11

92139

BUSHING

92139-Y014

$1.68

92152

COLLAR

92152-Y066

$2.84

92154

BOLT,FLANGE,10X25

92154-Y139

$5.03

92154A

BOLT,FLANGE,6X14

92154-Y153

$1.48

92154B

BOLT,FLANGE,6X18

92154-Y154

$2.60

92154C

BOLT

92154-Y170

$4.39

92154D

BOLT

92154-Y171

$3.60

92200

WASHER,12MM

92200-Y003

$2.56

92200A

WASHER,THRUST,12X30X1

92200-Y075

$3.69

92200B

WASHER,12MM

92200-Y096

$5.66

92200C

WASHER,DOOR

92200-Y105

$2.53

92210

NUT,6MM

92210-Y026

$1.40

92210A

NUT

92210-Y081

$1.57

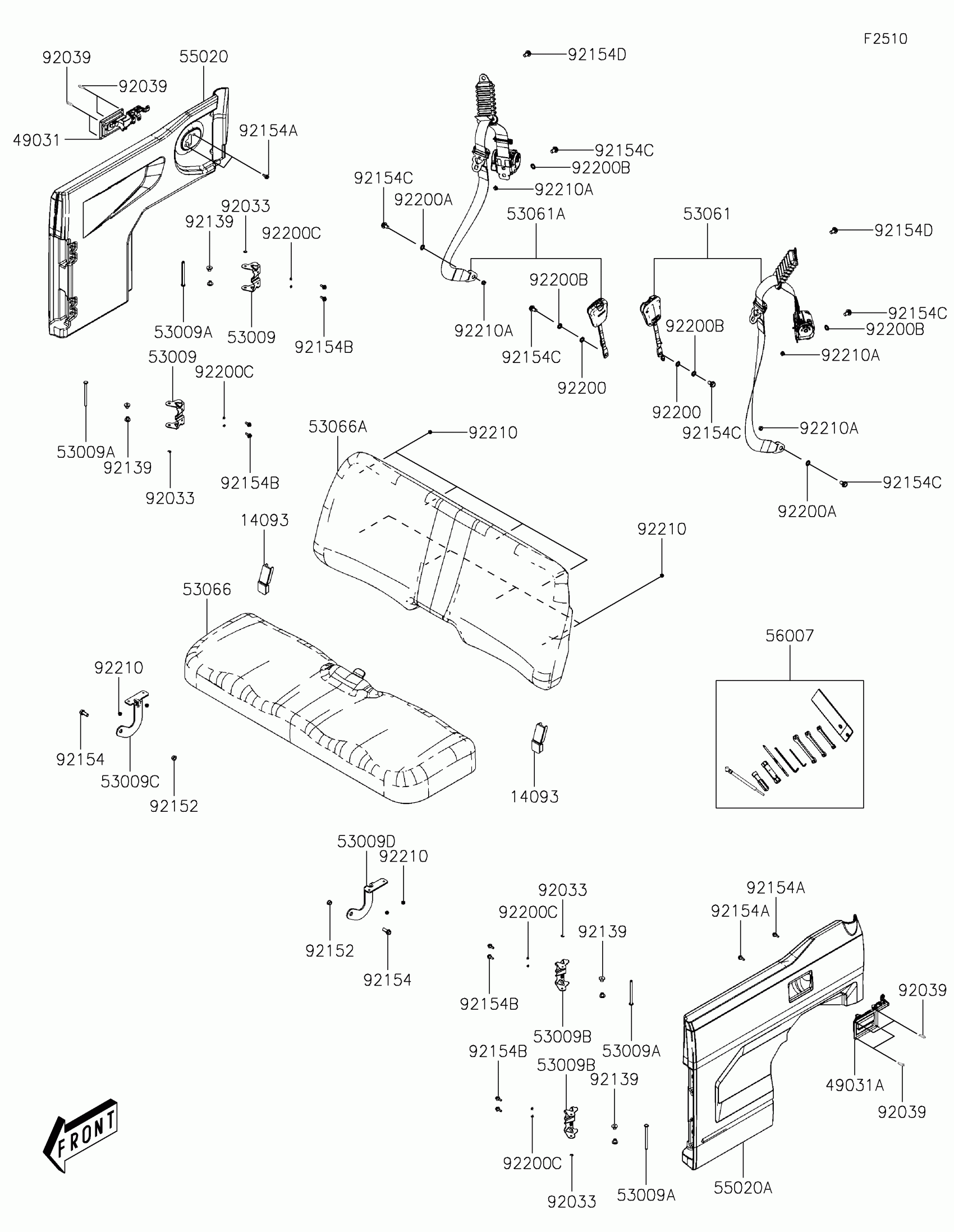

Kawasaki MULE PRO-MX™ EPS CAMO Seat Diagram

COVER,SEAT

LATCH,RH

LATCH,LH

HINGE,RH

HINGE

HINGE,LH

HINGE,SEAT,RH

HINGE,SEAT,LH

BELT-SEAT,LH

BELT-SEAT,RH

SEAT-ASSY,BOTTOM

SEAT-ASSY,BACK

GUARD,RH,S.BLACK

GUARD,LH,S.BLACK

TOOL-KIT

RING-SNAP

RIVET,4.8X12.8

BUSHING

COLLAR

BOLT,FLANGE,10X25

BOLT,FLANGE,6X14

BOLT,FLANGE,6X18

BOLT

BOLT

WASHER,12MM

WASHER,THRUST,12X30X1

WASHER,12MM

WASHER,DOOR

NUT,6MM

NUT
