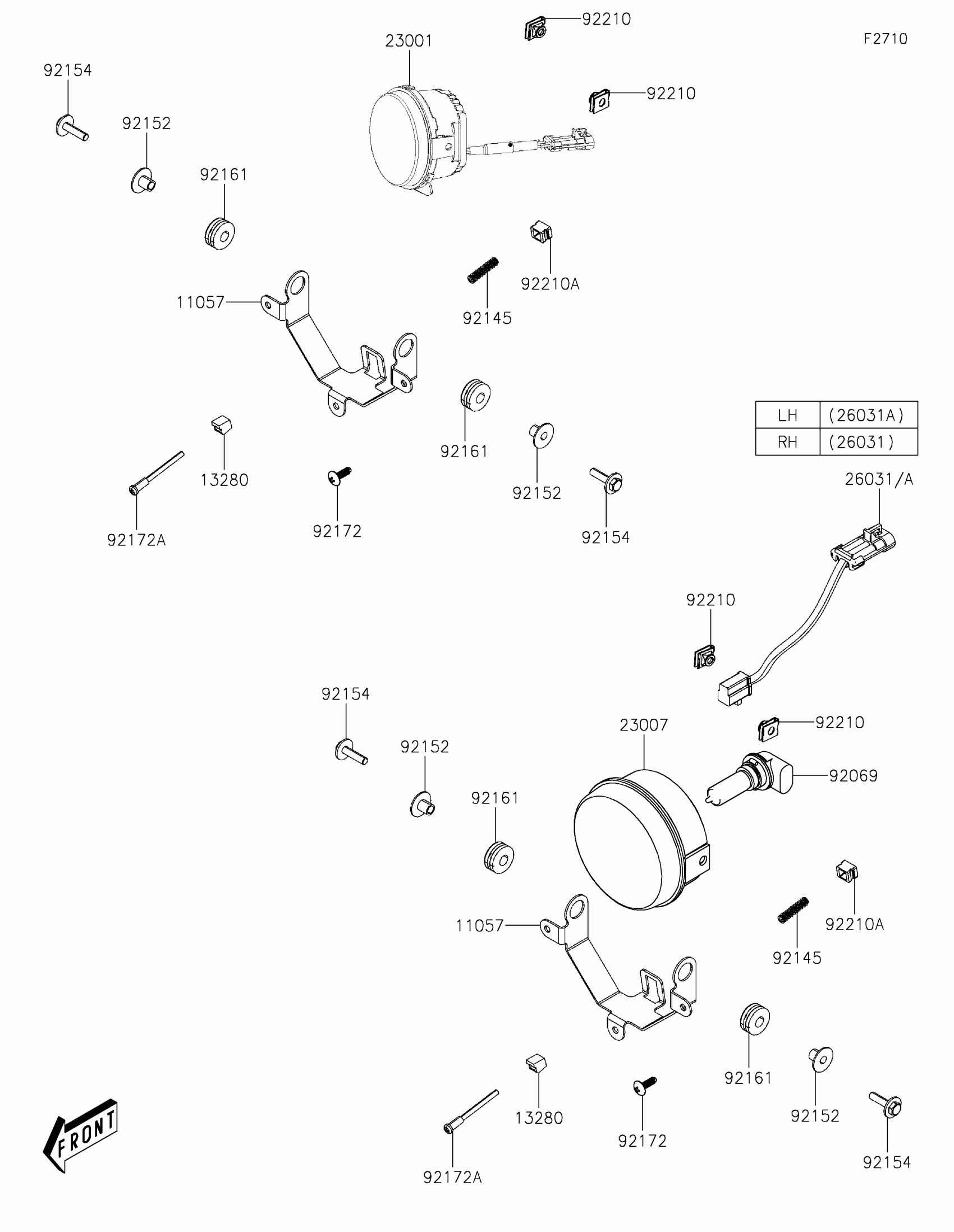

Kawasaki MULE PRO-MX™ EPS CAMO Headlight(s) Diagram

Description

Price

11057

BRACKET,HEAD LIGHT

11057-Y004

$17.35

13280

HOLDER,ADJUSTER LIGHT

13280-Y019

$0.98

23001

LAMP-ASSY-HEAD,LED

23001-Y001

$416.46

23007

LENS-COMP,HEAD LAMP

23007-0096

$50.83

26031

HARNESS,SUB,HEAD LIGHT,RH

26031-Y018

$58.44

26031A

HARNESS,SUB,HEAD LIGHT,LH

26031-Y019

$60.68

92069

BULB,12V 35/35W

92069-0019

$15.75

92145

SPRING,ADJUSTER LIGHT

92145-Y062

$1.79

92152

COLLAR,HEAD LIGHT

92152-Y064

$2.37

92154

BOLT,6X25

92154-Y099

$4.14

92161

DAMPER

92161-Y043

$2.92

92172

SCREW,TAPPING,5X16

92172-Y020

$1.63

92172A

SCREW,PAN,4X58

92172-Y080

$1.40

92210

NUT,6MM

92210-Y089

$5.66

92210A

NUT,4MM

92210-Y095

$8.60
