Description

Price

11061

GASKET,PRIMARY SHAFT COVER

11061-Y059

$7.09

11061A

GASKET,CLUTCH COVER

11061-Y060

$22.76

13042

WEIGHT,CLUTCH

13042-Y008

$41.56

13061

BOSS,DRIVE FACE

13061-Y004

$41.29

13081

CLUTCH-ASSY,PRIMARY

13081-Y001

$354.05

13272

PLATE,ADJUSTER SPRING

13272-Y027

$15.91

13272A

PLATE,RAMP

13272-Y028

$56.47

14093

COVER,CLUTCH

14093-Y004

$68.78

14093A

COVER,PRIMARY SHAFT

14093-Y005

$25.70

14093B

COVER,MOVABLE

14093-Y050

$44.10

16007

SEAT-SPRING

16007-Y007

$15.91

16007A

SEAT-SPRING

16007-Y008

$16.99

49094

CONVERTER-ASSY-DRIVEN

49094-Y007

$429.65

59011

BELT,DRIVE(STD)

59011-Y006

$146.34

59011A

BELT,DRIVE(OPTION)

59011-Y010

$200.29

59301

SHEAVE-MOVABLE

59301-Y006

$80.88

59301A

SHEAVE-MOVABLE,PRIMARY DRIVE

59301-Y007

$300.87

59302

SHEAVE-COMP,MOVABLE

59302-Y017

$256.31

59302A

SHEAVE-COMP

59302-Y018

$216.12

59302B

SHEAVE-COMP,MOVABLE

59302-Y020

$145.99

92028

BUSHING,42X47X45.6

92028-Y002

$11.08

92028A

BUSHING

92028-Y003

$21.42

92033

RING-SNAP,7MM

92033-Y042

$2.56

92033A

RING-SNAP,46.5MM

92033-Y043

$3.75

92043

PIN,8X14

92043-Y012

$1.88

92045

BEARING-BALL,16008

92045-Y046

$40.50

92045A

BEARING-BALL,6815

92045-Y052

$200.62

92046

BEARING-NEEDLE,14X22X20

92046-Y010

$53.71

92049

SEAL-OIL,42X51X4

92049-Y043

$15.64

92049A

SEAL-OIL,6.5X80X7

92049-Y047

$25.31

92055

RING-O

92055-Y065

$7.23

92055A

RING-O,166X2.0

92055-Y072

$11.91

92093

SEAL,DRIVEN FACE,40.2X47X4

92093-Y045

$9.18

92122

ROLLER,GUIDE

92122-Y008

$6.17

92122A

ROLLER

92122-Y018

$4.96

92122B

ROLLER,GUIDE

92122-Y020

$10.73

92122C

ROLLER,COMP,WEIGHT

92122-Y022

$17.35

92145

SPRING,CLUTCH

92145-Y058

$10.07

92145A

SPRING,DRIVEN FACE

92145-Y059

$28.66

92147

BEARING,ONE WAY

92147-Y001

$151.25

92152

COLLAR,SEAL

92152-Y058

$21.27

92152A

COLLAR,SPRING

92152-Y059

$21.42

92152B

COLLAR,CLUTCH

92152-Y069

$50.00

92152C

COLLAR,PRIMARY DRIVE SHAFT

92152-Y070

$35.66

92154

BOLT,FLANGE,6X18

92154-Y132

$2.60

92154A

BOLT,FLANGE,6X45

92154-Y135

$5.03

92154B

BOLT,FLANGE,6X40

92154-Y209

$6.91

92154C

BOLT,4X12

92154-Y224

$6.72

92200

WASHER,25X33X4

92200-Y073

$6.55

92200A

WASHER,THRUST,20MM

92200-Y087

$16.19

92200B

WASHER

92200-Y103

$5.38

92210

NUT,SPECIAL,36MM

92210-Y082

$11.02

92210A

NUT,FLANGE,20MM

92210-Y084

$17.61

92210B

NUT

92210-Y085

$22.76

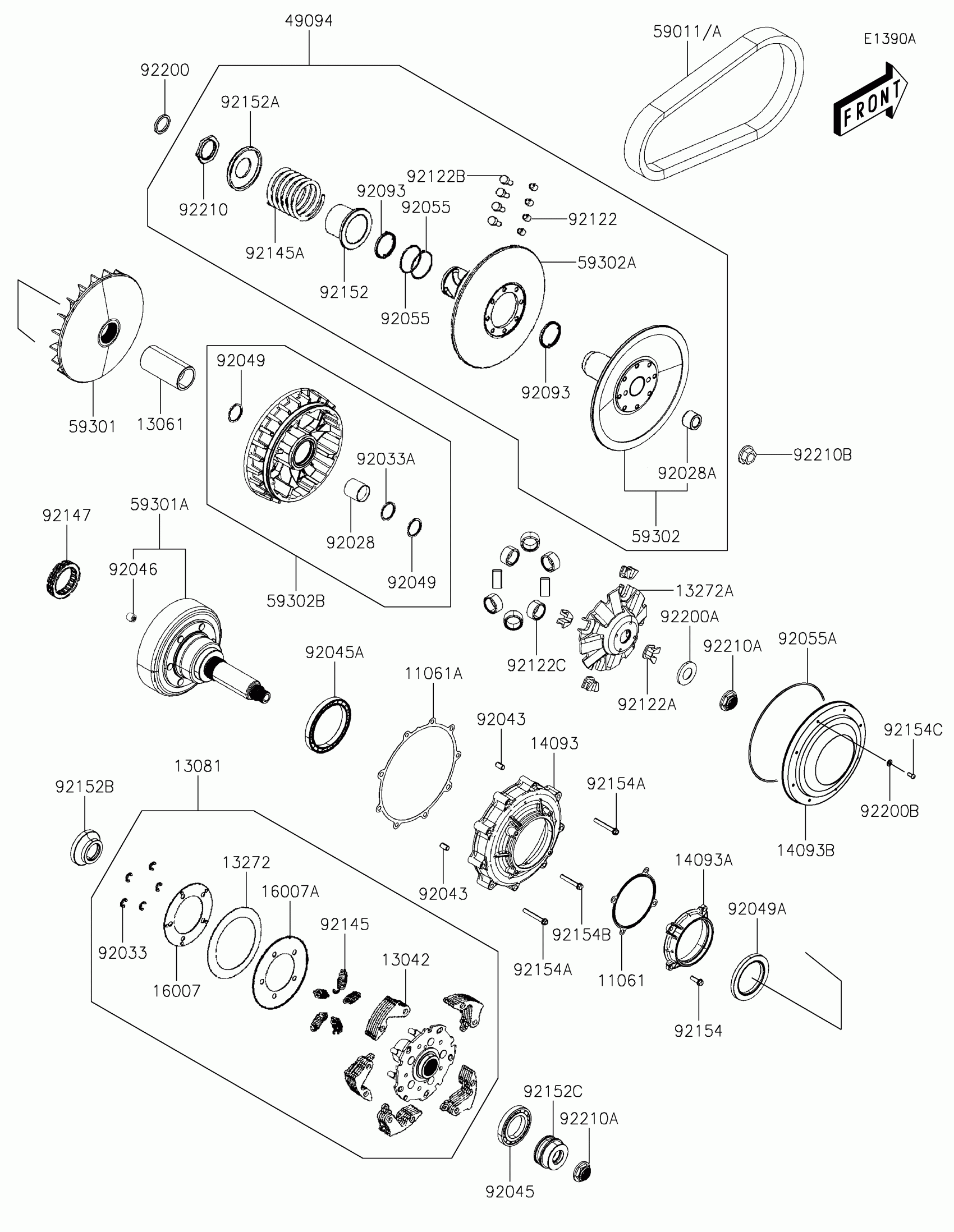

Kawasaki MULE PRO-MX™ EPS CAMO Belt Converter(DLF) Diagram

GASKET,PRIMARY SHAFT COVER

GASKET,CLUTCH COVER

WEIGHT,CLUTCH

BOSS,DRIVE FACE

CLUTCH-ASSY,PRIMARY

PLATE,ADJUSTER SPRING

PLATE,RAMP

COVER,CLUTCH

COVER,PRIMARY SHAFT

COVER,MOVABLE

SEAT-SPRING

SEAT-SPRING

CONVERTER-ASSY-DRIVEN

BELT,DRIVE(STD)

BELT,DRIVE(OPTION)

SHEAVE-MOVABLE

SHEAVE-MOVABLE,PRIMARY DRIVE

SHEAVE-COMP,MOVABLE

SHEAVE-COMP

SHEAVE-COMP,MOVABLE

BUSHING,42X47X45.6

BUSHING

RING-SNAP,7MM

RING-SNAP,46.5MM

PIN,8X14

BEARING-BALL,16008

BEARING-BALL,6815

BEARING-NEEDLE,14X22X20

SEAL-OIL,42X51X4

SEAL-OIL,6.5X80X7

RING-O

RING-O,166X2.0

SEAL,DRIVEN FACE,40.2X47X4

ROLLER,GUIDE

ROLLER

ROLLER,GUIDE

ROLLER,COMP,WEIGHT

SPRING,CLUTCH

SPRING,DRIVEN FACE

BEARING,ONE WAY

COLLAR,SEAL

COLLAR,SPRING

COLLAR,CLUTCH

COLLAR,PRIMARY DRIVE SHAFT

BOLT,FLANGE,6X18

BOLT,FLANGE,6X45

BOLT,FLANGE,6X40

BOLT,4X12

WASHER,25X33X4

WASHER,THRUST,20MM

WASHER

NUT,SPECIAL,36MM

NUT,FLANGE,20MM

NUT
