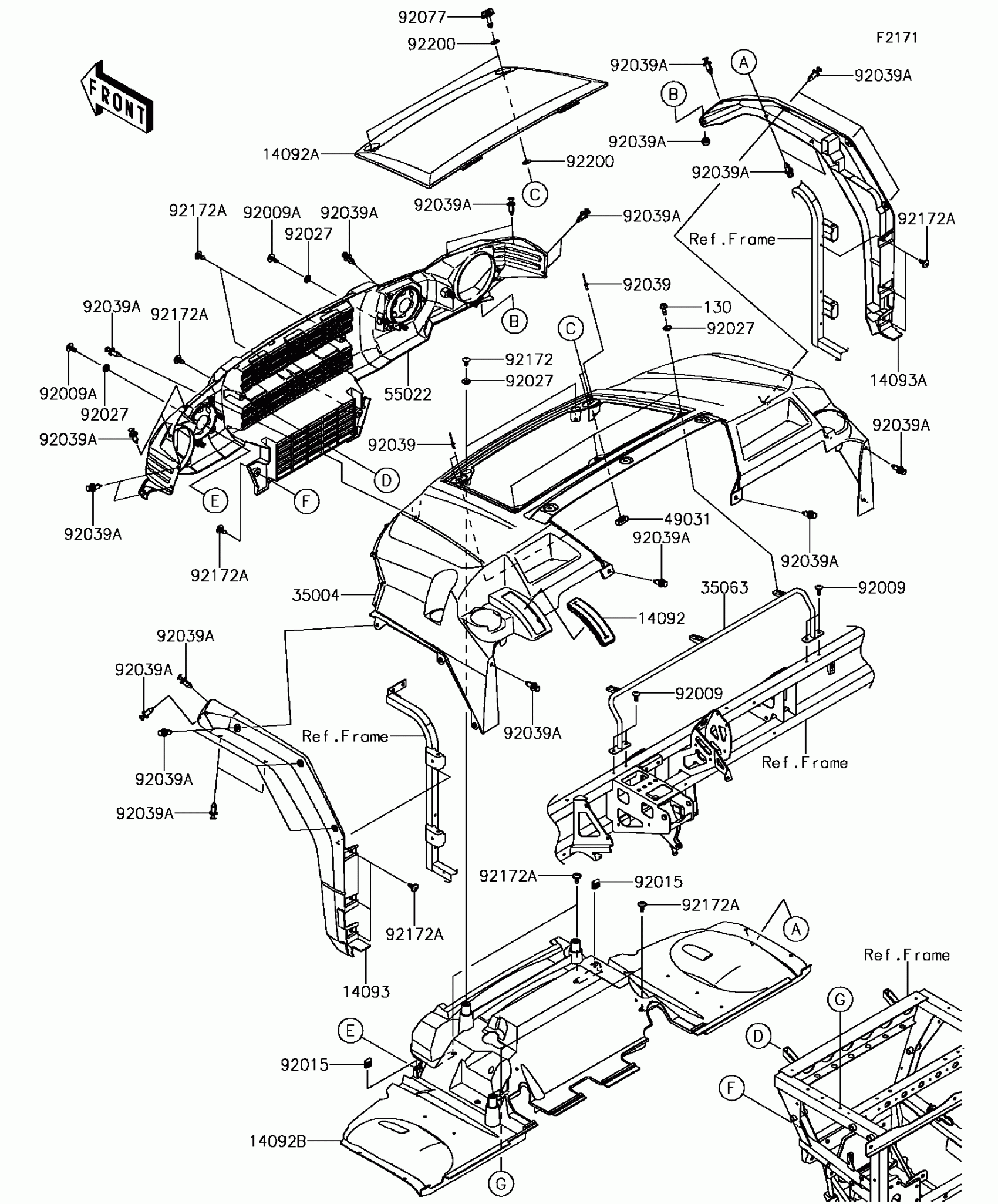

Kawasaki MULE PRO-FXT™ Front Fender(s)(AFF) Diagram

Description

Price

130

BOLT-FLANGED,6X16

130CA0616

$1.80

14092

COVER,CENTER CONSOLE,TOP

14092-0791

$6.92

14092A

COVER,OPEN,S.BLACK

14092-1177-839

$159.20

14092B

COVER,TOP,FR INNER

14092-1194

$163.66

14093

COVER,SIDE,LH

14093-0596

$81.76

14093A

COVER,SIDE,RH

14093-0597

$81.76

35004

FENDER-FRONT,S.BLACK

35004-0335-839

$329.80

35063

STAY,FR FENDER

35063-0934

$31.28

49031

LATCH

49031-0008

$1.78

55022

COVER-HEAD LAMP

55022-0304

$113.16

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92009A

SCREW,6X16

92009-1621

Unavailable

92015

NUT,CLAMP,6MM

92015-1678

$5.52

92027

COLLAR,L=4.6

92027-1168

$5.00

92039

RIVET,3.2X9.8

92039-0013

$0.63

92039A

RIVET

92039-1229

$1.19

92077

KNOB

92077-0030

$3.04

92172

SCREW,6X16

92172-0284

$1.34

92172A

SCREW,6X16

92172-0711

$3.02

92200

WASHER

92200-0503

$2.55
