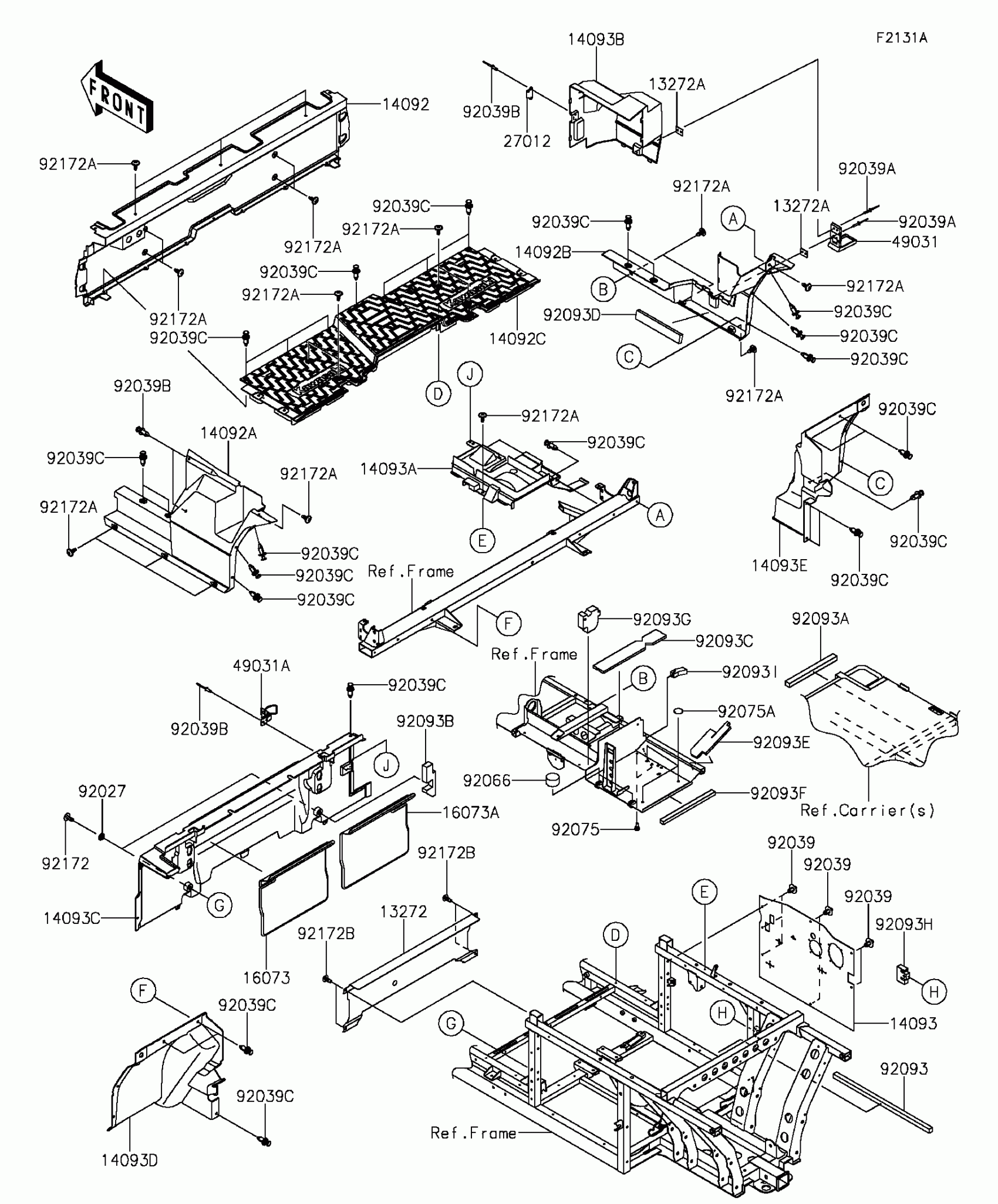

Kawasaki MULE PRO-FXT™ Frame Fittings(Rear)(AGF) Diagram

#

Description
Price

13272

PLATE

13272-1693

$146.28

13272A

PLATE,LATCH

13272-1828

$1.02

14092

COVER,RR FLOOR,FR

14092-1186

$138.70

14092A

COVER,SIDE,LH,RR

14092-1190

$87.05

14092B

COVER,SIDE,RH,RR

14092-1191

$54.21

14092C

COVER,FLOOR,BOTTOM

14092-1196

$229.87

14093

COVER,DUST,A/C BOX

14093-0257

$35.99

14093A

COVER,DUST

14093-0311

$18.05

14093B

COVER,A/C

14093-0366

$51.71

14093C

COVER,RR SEAT

14093-0367

$109.40

14093D

COVER,RR,FLOOR,MUD,LH

14093-0388

$75.19

14093E

COVER,RR,FLOOR,MUD,RH

14093-0389

$75.19

16073

INSULATOR,LH

16073-0814

$71.76

16073A

INSULATOR,RH

16073-0815

$71.76

27012

HOOK,STRIKER

27012-0806

$2.95

49031

LATCH,A/C

49031-0007

$5.04

49031A

LATCH,TOGGLE

49031-0015

$7.82

92027

COLLAR,L=4.6

92027-1168

$5.00

92039

RIVET

92039-0086

$5.54

92039A

RIVET,3.2X13.4

92039-0739

$2.49

92039B

RIVET

92039-0747

$2.49

92039C

RIVET

92039-1229

$1.19

92066

PLUG,36X20

92066-0812

$2.04

92075

DAMPER,6X10X15

92075-1808

$1.39

92075A

DAMPER,RUBBER

92075-261

$4.31

92093

SEAL,DUST,20X20X565

92093-0631

$14.51

92093A

SEAL,DUST,20X25X280

92093-0633

$7.75

92093B

SEAL,165X50X25

92093-0642

$15.34

92093C

SEAL,DUST,61X368X10

92093-0643

$16.09

92093D

SEAL,DUST,39X255X15

92093-0644

$10.62

92093E

SEAL,DUST,69X207X10

92093-0645

$11.40

92093F

SEAL,DUST,15X305X20

92093-0646

$7.53

92093G

SEAL,DUST,97X95X30

92093-0647

$20.06

92093H

SEAL,52X72X20

92093-0651

$5.64

92093I

SEAL,21.5X60X20

92093-0652

$3.23

92172

SCREW,6X16

92172-0236

$0.85

92172A

SCREW,6X16

92172-0711

$3.02

92172B

SCREW,TAPPING,6X16

92172-0739

$0.85
