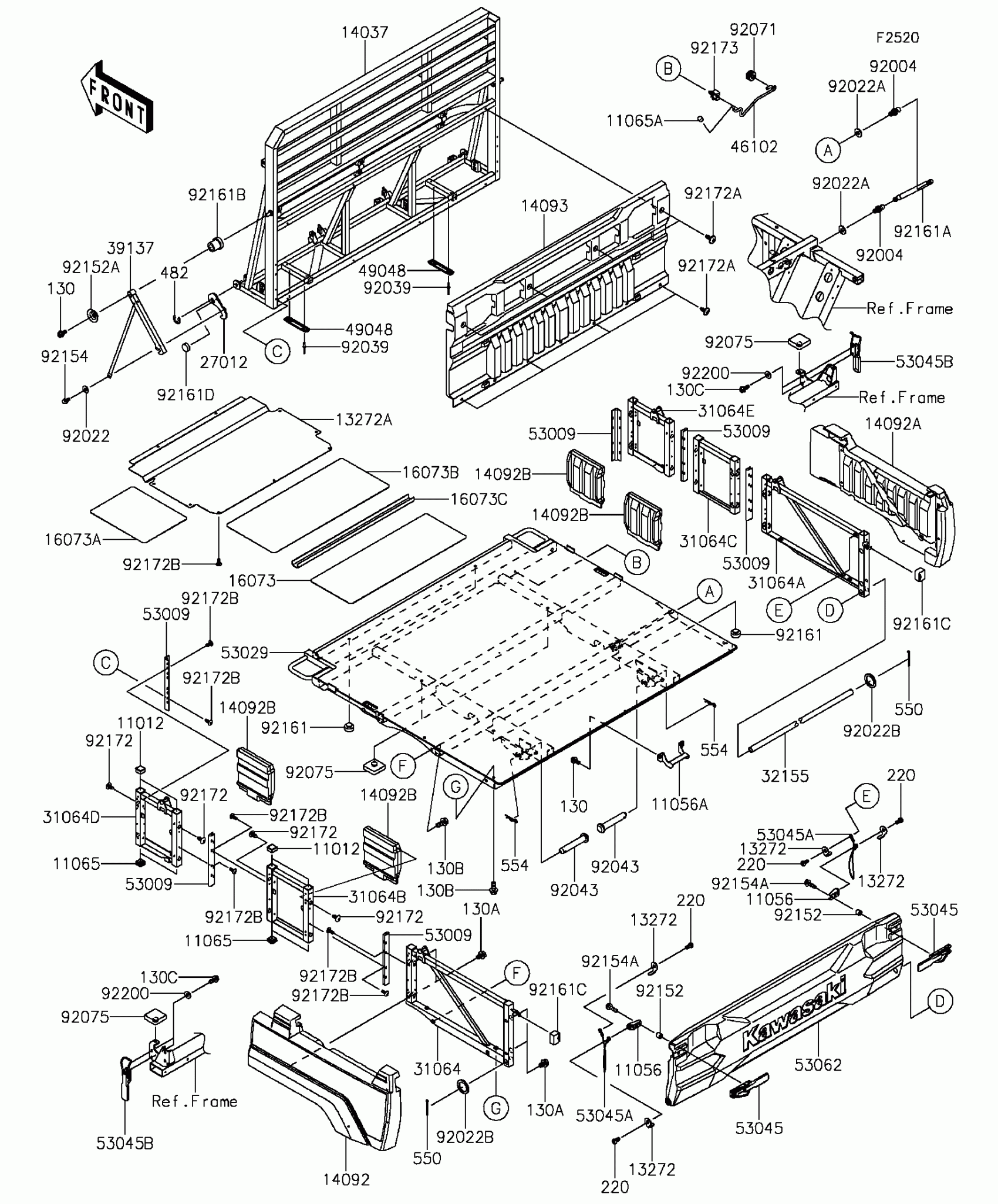

Kawasaki MULE PRO-FXT™ Carrier(s)(AFF) Diagram

#

Description
Price

11012

CAP

11012-1784

$6.32

11056

BRACKET,STOPPER

11056-2848

$20.98

11056A

BRACKET,SUPPORT

11056-4273

$22.05

11065

CAP

11065-0848

$2.94

11065A

CAP

11065-7504

$1.50

13272

PLATE

13272-1597

$1.13

13272A

PLATE

13272-1694

$331.81

14037

SCREEN

14037-0750

Unavailable

14092

COVER,SIDE PANEL,RR,LH,F.BLACK

14092-1179-6Z

$100.93

14092A

COVER,SIDE PANEL,RR,RH,F.BLACK

14092-1180-6Z

$100.93

14092B

COVER,SIDE PANEL,L&R

14092-1181

$23.76

14093

COVER,SCREEN

14093-0301

$80.48

16073

INSULATOR,250X705

16073-0812

$20.95

16073A

INSULATOR,265X335

16073-0813

$10.69

16073B

INSULATOR,295X705

16073-0816

$25.33

16073C

INSULATOR,70X705

16073-0817

$6.33

27012

HOOK,SCREEN

27012-0787

$20.36

31064

PIPE-COMP,RR,LH

31064-0634

$114.56

31064A

PIPE-COMP,RR,RH

31064-0635

$114.56

31064B

PIPE-COMP,MIDDLE,LH

31064-0638

$46.92

31064C

PIPE-COMP,MIDDLE,RH

31064-0639

$46.92

31064D

PIPE-COMP,FR,LH

31064-0640

$59.78

31064E

PIPE-COMP,FR,RH

31064-0641

$59.78

32155

PIPE

32155-1533

$63.28

39137

STAY-COMP

39137-0600

Unavailable

46102

ROD

46102-0606

$11.78

49048

SHOE,SCREEN

49048-0005

$6.13

53009

HINGE

53009-0031

$3.96

53029

CARRIER,BASE

53029-0335

$922.01

53045

HOOK-ASSY,MAIN CLAMP

53045-0022

Unavailable

53045A

HOOK-ASSY,STOPPER

53045-0023

$6.56

53045B

HOOK-ASSY,MAIN LOCK

53045-0024

$24.37

53062

GATE-TAIL

53062-0020

Unavailable

92004

STUD

92004-0733

$3.04

92022

WASHER,6.5X16X1

92022-1143

$3.92

92022A

WASHER,8.2X19X2

92022-1533

$5.52

92022B

WASHER,23X32X2.3

92022-1618

$6.22

92039

RIVET,3.2X8

92039-3763

$1.81

92043

PIN,12.4X72.4

92043-0716

$7.24

92071

GROMMET

92071-0012

$4.55

130

BOLT-FLANGED,6X14

130BA0614

$1.20

130A

BOLT-FLANGED,8X12

130BA0812

$0.95

130B

BOLT-FLANGED,8X20

130BA0820

$4.14

130C

BOLT-FLANGED,6X16

130CA0616

$1.80

220

SCREW-PAN-CROS,6X10

220AB0610

$1.81

482

CIRCLIP-TYPE-E,10MM

482EA0100

$1.04

550

PIN-COTTER,3.0X30

550AA3030

$2.51

554

PIN-SNAP,12MM

554DA1200

$3.96

92075

DAMPER

92075-1882

$8.10

92152

COLLAR,6.8X10X9.3

92152-1799

$2.26

92152A

COLLAR

92152-2128

$2.15

92154

BOLT,FLANGED,5X4.5

92154-0974

$2.67

92154A

BOLT,FLANGED,6X22

92154-1356

$1.48

92161

DAMPER

92161-0590

$3.90

92161A

DAMPER

92161-1615

$28.88

92161B

DAMPER,12.5X20X24

92161-1634

$1.68

92161C

DAMPER

92161-1656

$1.36

92161D

DAMPER,17X6

92161-1708

$0.64

92172

SCREW,6X16

92172-0284

$1.34

92172A

SCREW,6X16

92172-0711

$3.02

92172B

SCREW,TAPPING,6X16

92172-0739

$0.85

92173

CLAMP,FUEL PIPE

92173-1213

$1.48

92200

WASHER,6.5X16X2.0

92200-1543

$2.34
