- MULE PRO-FXT™ 1000 LE
Front Fender(s)

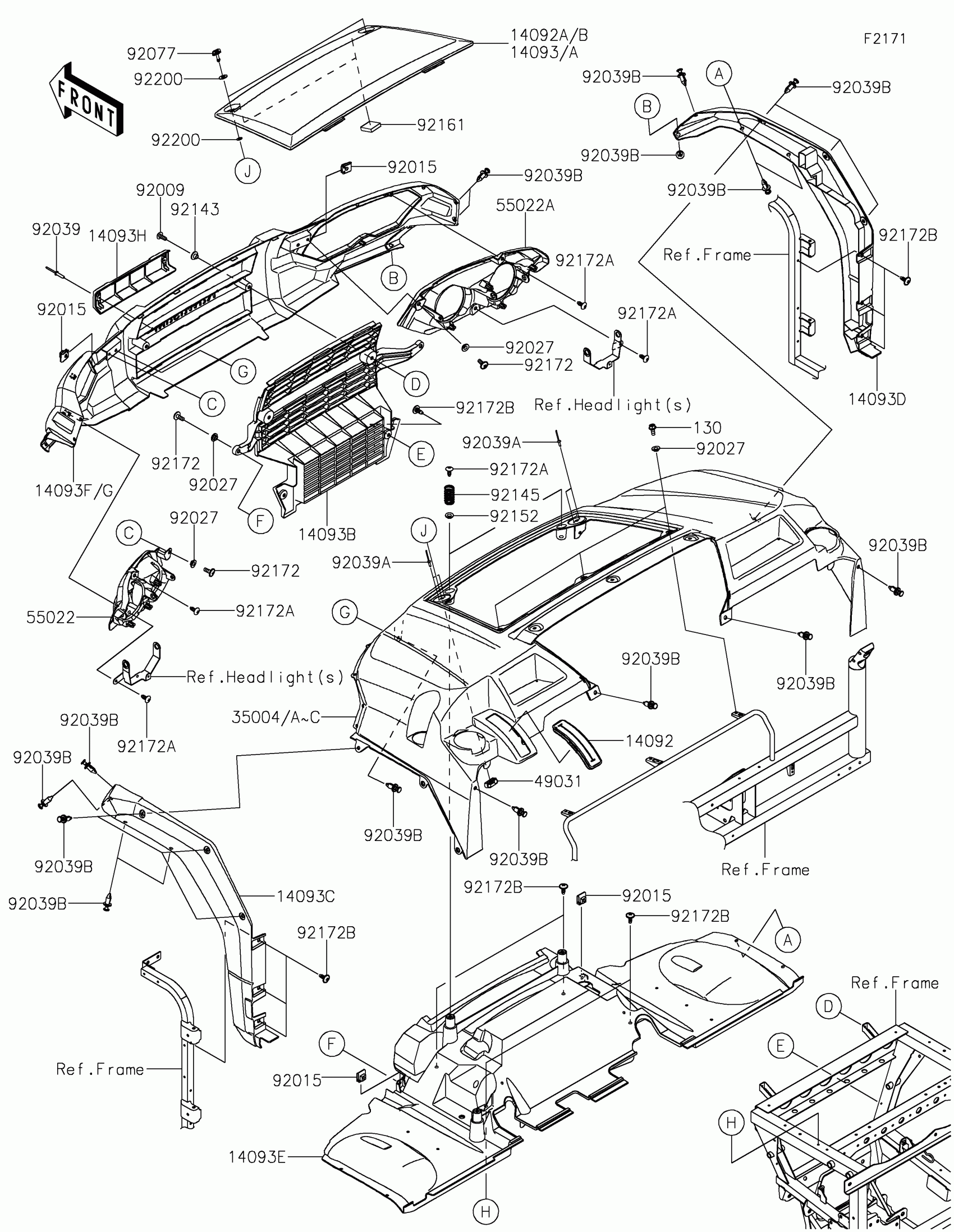

Kawasaki MULE PRO-FXT™ 1000 LE Front Fender(s) Diagram
#
Description
Price
14092
COVER,CENTER CONSOLE,TOP
14092-0791
$6.92
14092A
COVER,OPEN,M.O.BLACK
14092-1177-66E
$159.20
14092B
COVER,OPEN,M.S.BLUE
14092-1177-66W
$159.20
14093B
COVER,RADIATOR
14093-0584
$62.91
14093C
COVER,SIDE,LH
14093-0596
$81.76
14093D
COVER,SIDE,RH
14093-0597
$81.76
14093E
COVER,TOP,FR INNER
14093-1405
$100.96
14093F
COVER,FR GRILLE,M.O.BLACK
14093-1423-66E
$198.83
14093G
COVER,FR GRILLE,S.BLACK
14093-1423-839
$198.83
14093H
COVER,FR GRILLE,LOGO
14093-1434
$6.66
35004
FENDER-FRONT,M.O.BLACK
35004-0335-66E
$329.80
35004A
FENDER-FRONT,M.S.BLUE
35004-0335-66W
$329.80
49031
LATCH
49031-0008
$1.78
55022
COVER-HEAD LAMP,LH
55022-0322
$16.50
55022A
COVER-HEAD LAMP,RH
55022-0323
$16.50
92009
SCREW,TAPPING,6X16
92009-1166
$5.52
92015
NUT,CLAMP,6MM
92015-1678
$5.52
92027
COLLAR,L=4.6
92027-1168
$5.00
92039
RIVET,4.0X17.5
92039-0703
$0.99
92039A
RIVET,3.2X9.5
92039-0785
$2.44
92039B
RIVET
92039-0865
$0.77
92077
KNOB
92077-0030
$3.04
92143
COLLAR
92143-1057
$5.00
92145
SPRING,17X65
92145-1727
$2.47
92152
COLLAR
92152-0140
$5.25
92161
DAMPER,40X40X10
92161-1861
$2.49
92172
SCREW,6X16
92172-0236
$0.85
92172A
SCREW,6X16
92172-0284
$1.34
92172B
SCREW,6X16
92172-0826
$2.26
92200
WASHER
92200-0503
$2.55
130
BOLT-FLANGED,6X14
130BA0614
$1.20
