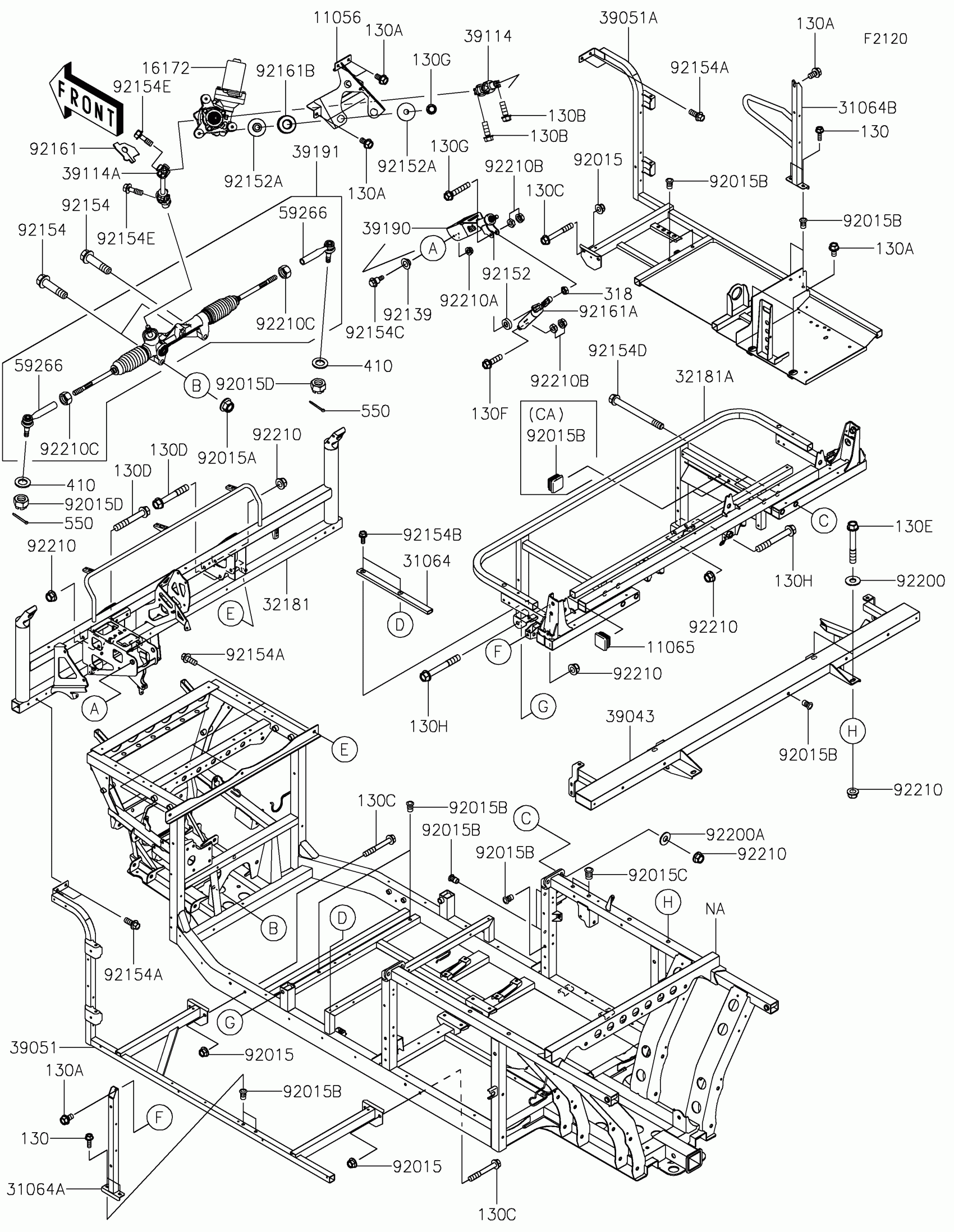

Kawasaki MULE PRO-FXR™ Frame(KMFNN-KNFNL) Diagram

#

Description
Price

11056

BRACKET

11056-2838

$60.98

11065

CAP

11065-0901

$2.94

16172

ACTUATOR,EPS

16172-0557

$1,812.19

31064

PIPE-COMP,STORAGE BOX,LH

31064-0691

$23.97

31064A

PIPE-COMP,SEAT SIDE,LH

31064-0706

$40.49

31064B

PIPE-COMP,SEAT SIDE,RH

31064-0707

$55.90

32181

FRAME-SUB-COMP,DASH PANEL

32181-0011

$758.80

32181A

FRAME-SUB-COMP,SEAT

32181-0016

$872.39

39043

CROSSMEMBER-COMP

39043-0029

$475.04

39051

FRAME-COMP-SIDE,LH

39051-0015

$321.01

39051A

FRAME-COMP-SIDE,RH

39051-0016

$613.37

39114

SHAFT-COMP-STRG

39114-0019

$96.23

39114A

SHAFT-COMP-STRG

39114-0031

$108.94

39190

SHAFT-ASSY-STEERING

39190-0006

$231.78

39191

GEAR-ASSY-STEERING

39191-0030

$1,066.48

59266

JOINT-BALL

59266-0712

$77.58

92015

NUT,8MM

92015-1432

$6.57

92015A

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92015B

NUT,POP,6MM,L=15

92015-1791

$4.69

92015C

NUT,POP,8MM,L=16.5

92015-1793

$5.00

92015D

NUT,CASTLE,14MM

92015-1841

$8.38

92139

BUSHING

92139-0230

$4.61

92152

COLLAR,8.2X18X5

92152-1848

$5.69

92152A

COLLAR,8.5X30X10.6

92152-2149

$5.04

92154

BOLT,FLANGED,12X50

92154-1008

$7.85

92154A

BOLT,FLANGED,8X20

92154-1226

$1.02

92154B

BOLT,6X15.6

92154-1250

$0.82

92154C

BOLT,6X21.5

92154-1320

$2.49

92154D

BOLT,FLANGED,10X110

92154-1353

$4.92

92154E

BOLT

92154-4224

$3.97

92161

DAMPER

92161-1689

$2.72

92161A

DAMPER,GAS SPRING

92161-1825

$51.50

92161B

DAMPER,ACTUATOR

92161-7517

$3.35

92200

WASHER,10.5X25X1.6

92200-1595

$6.18

92200A

WASHER,10.3X23X1.6

92200-2009

$1.35

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$2.61

92210A

NUT,LOCK,FLANGED,6MM

92210-0303

$1.34

92210B

NUT,HARD LOCK,8MM

92210-0934

$4.92

92210C

NUT,16MM

92210-0969

$14.64

130

BOLT-FLANGED,6X18

130BA0618

$1.54

130A

BOLT-FLANGED,8X14

130BA0814

$2.16

130B

BOLT-FLANGED,8X25

130BA0825

$2.95

130C

BOLT-FLANGED,8X60

130BA0860

$1.67

130D

BOLT-FLANGED,10X65

130BA1065

$2.65

130E

BOLT-FLANGED,10X70

130BA1070

$2.75

130F

BOLT-FLANGED,8X30

130CA0830

$1.08

130G

BOLT-FLANGED,8X45

130CA0845

$1.22

130H

BOLT-FLANGED,10X75

130CA1075

$4.31

318

NUT-HEX-SMALL,8MM

318BA0800

$1.34

410

WASHER-PLAIN-SMALL,14MM

410AA1400

$2.15

550

PIN-COTTER,3.0X25

550AA3025

$0.62

92015B

NUT,POP,6MM,L=15

92015-1791

$4.69
