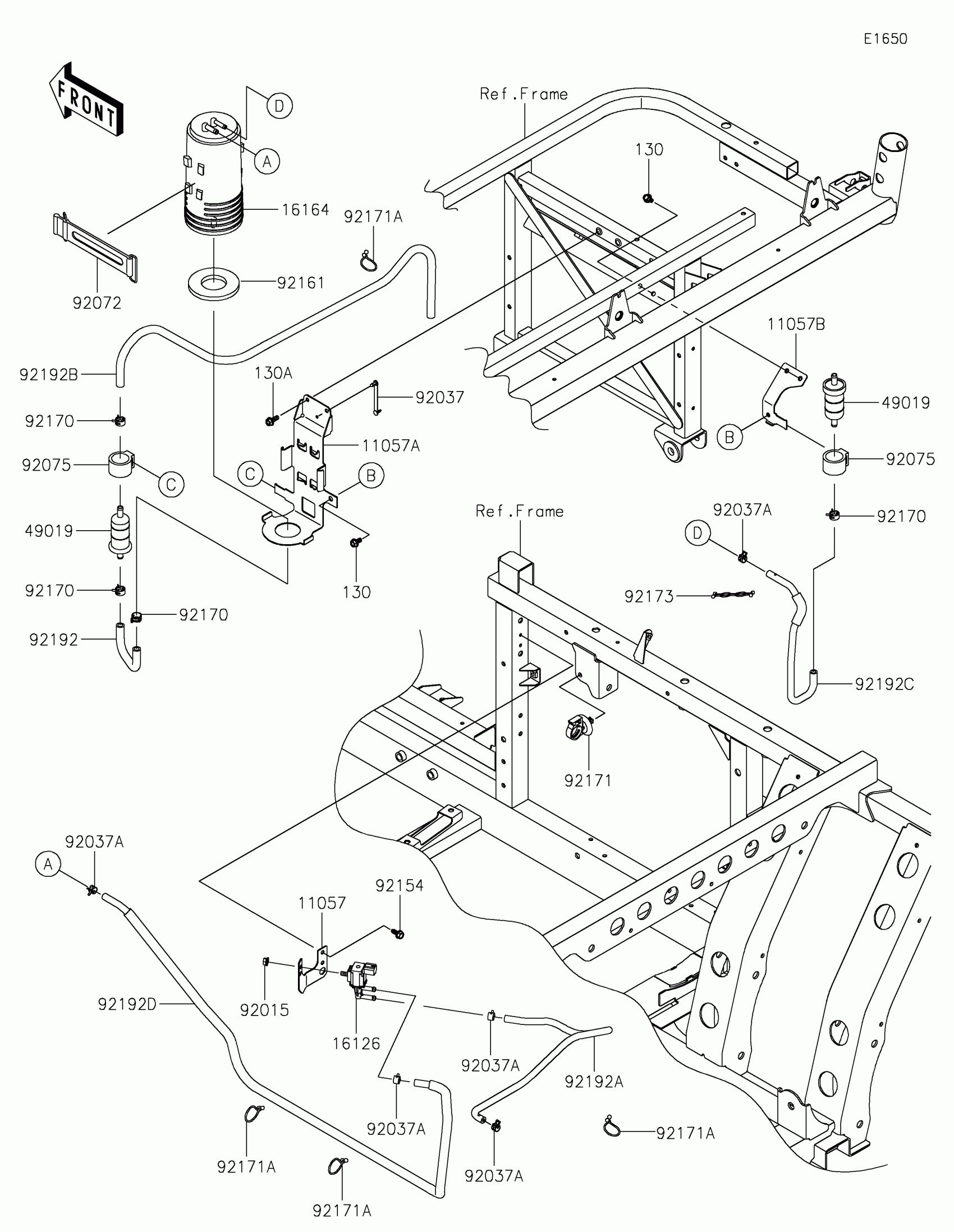

Kawasaki MULE PRO-FX™ EPS LE Fuel Evaporative System(CA) Diagram

Description

Price

11057

BRACKET,VALVE

11057-0763

$3.74

11057A

BRACKET,CANISTER

11057-2694

$54.52

11057B

BRACKET

11057-2695

$14.55

16126

VALVE,SOLENOID

16126-0705

$106.99

16164

CANISTER

16164-0016

$205.69

49019

FILTER-FUEL

49019-0032

$22.97

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92037

CLAMP,SPEED,L=58

92037-1163

$6.57

92037A

CLAMP

92037-2113

$1.03

92072

BAND,L=168

92072-1306

$13.75

92075

DAMPER,FUEL FILTER

92075-1853

$12.35

92154

BOLT,6X15.6

92154-1250

$0.82

92161

DAMPER

92161-1843

$5.12

92170

CLAMP

92170-2082

$0.84

92171

CLAMP

92171-0453

$3.54

92171A

CLAMP

92171-1185

$2.46

92173

CLAMP

92173-2284

$2.80

92192

TUBE,FILTER-CANISTER

92192-1665

$3.87

92192A

TUBE,VALVE-INTAKE MANIFOLD

92192-1667

$65.24

92192B

TUBE,AIR-FUEL FILTER

92192-1900

$10.80

92192C

TUBE,FILTER-CANISTER

92192-2252

$45.83

92192D

TUBE,CANISTER-VALVE

92192-2286

$112.07

130

BOLT-FLANGED,6X12

130BA0612

$1.72

130A

BOLT-FLANGED,6X16

130BA0616

$1.20
