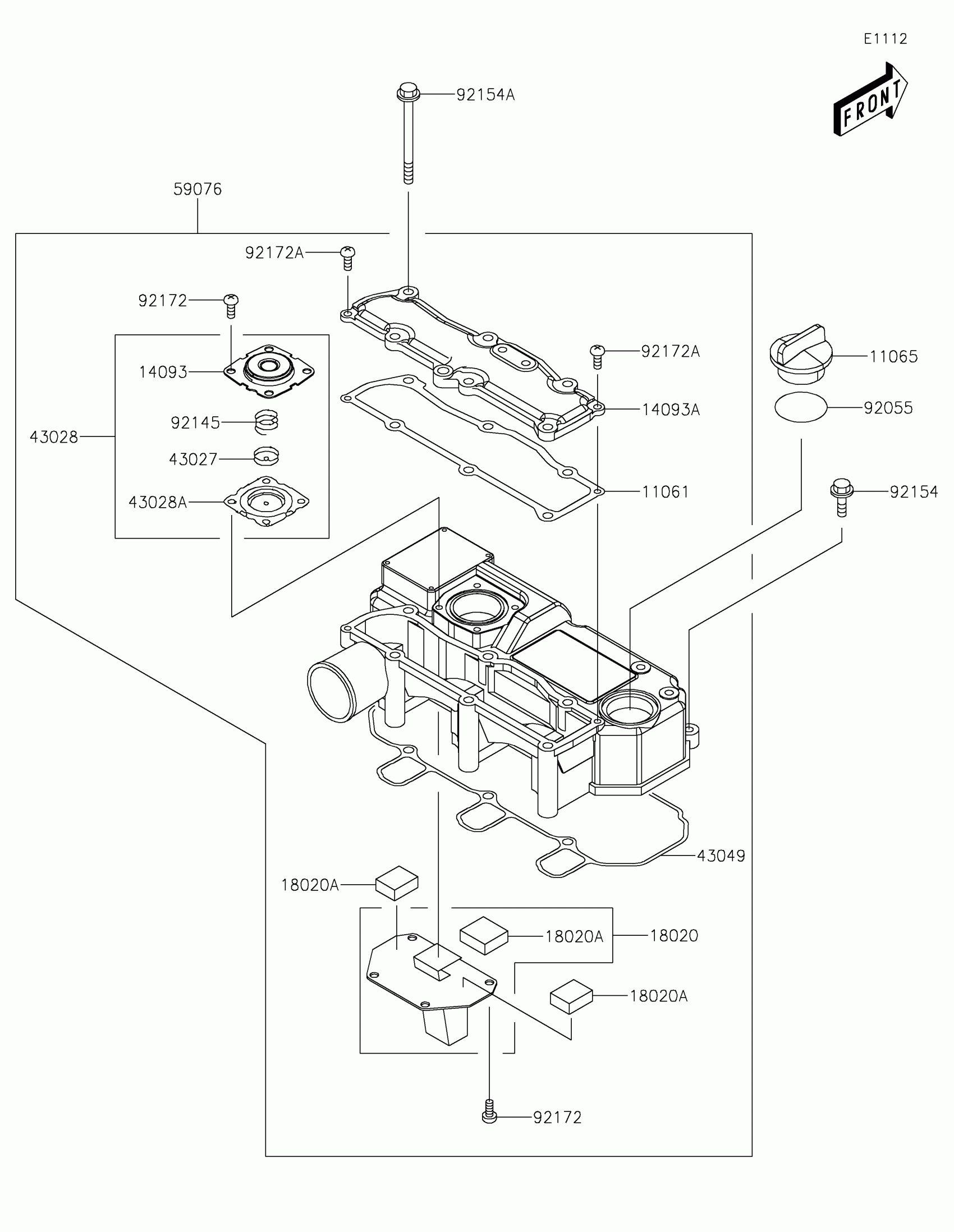

Kawasaki MULE PRO-DXT™ EPS DIESEL FE Cylinder Head Cover Diagram

Description

Price

11061

GASKET,INTAKE MANIFOLD COVER

11061-1193

$55.96

11065

CAP,FILLER

11065-0943

$14.39

14093

COVER,DIAPHRAGM

14093-0442

$34.69

14093A

COVER,INTAKE MANIFOLD

14093-0444

$115.66

18020

BAFFLE,PLATE

18020-0723

$146.89

18020A

BAFFLE,BREATHER

18020-0724

$9.49

43027

PLATE-DIAPHRAGM

43027-0009

$8.20

43028

DIAPHRAGM,ASSY

43028-0019

$71.65

43028A

DIAPHRAGM

43028-0020

$24.25

43049

PACKING,INTAKE MANIFOLD

43049-0038

$55.96

59076

MANIFOLD-INTAKE

59076-0014

$269.34

92055

RING-O

92055-0856

$3.98

92145

SPRING

92145-1712

$3.91

92154

BOLT,FLANGED,6X20

92154-1988

$2.03

92154A

BOLT,FLANGED,6X75

92154-1989

$2.92

92172

SCREW,5X10

92172-0985

$2.03

92172A

SCREW,5X16

92172-0986

$2.03
