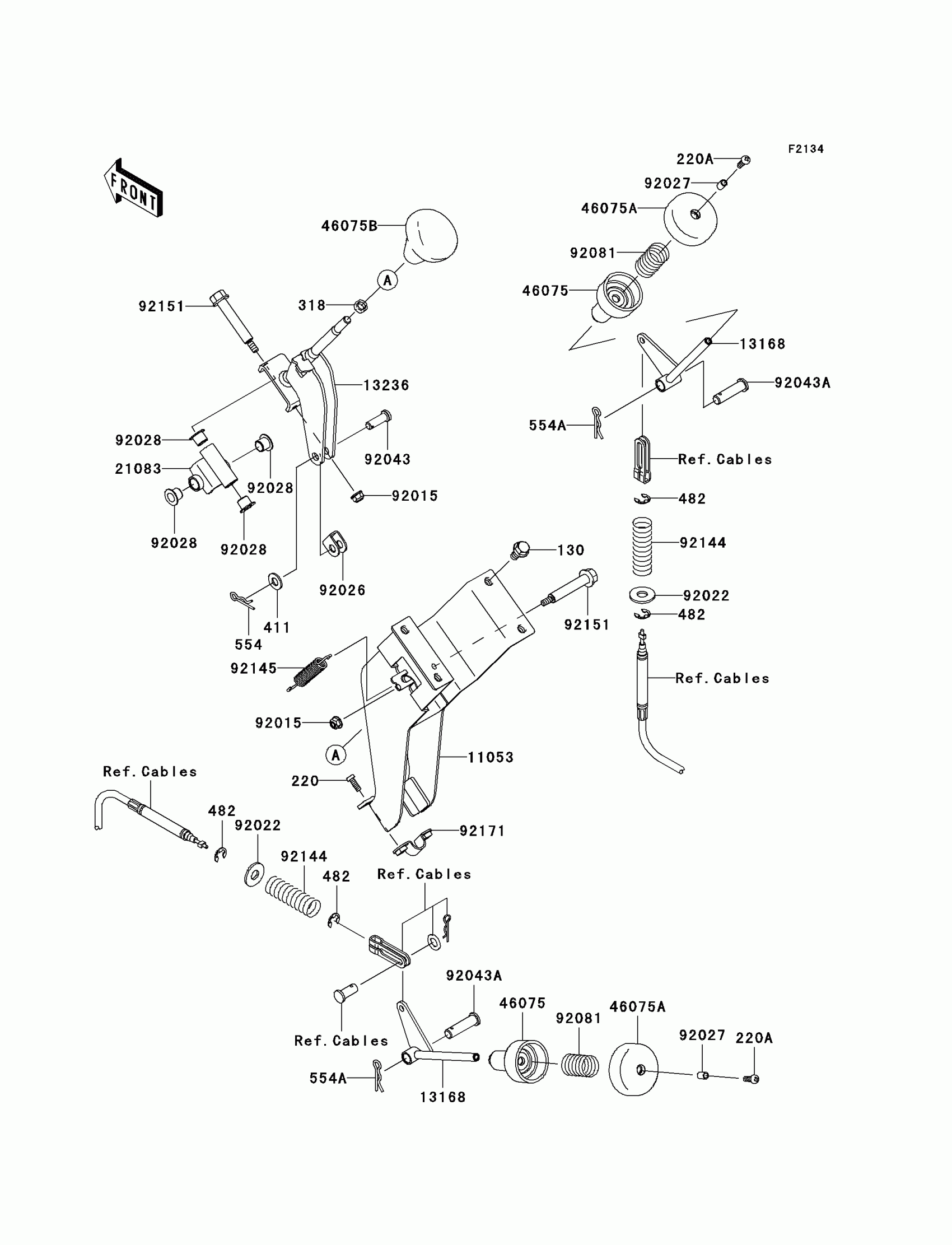

Kawasaki Mule 610 4x4 Hardwoods Green HD Shift Lever(s) Diagram

Description

Price

130

BOLT-FLANGED,8X16

130J0816

$1.66

220

SCREW-PAN-CROS,5X14

220D0514

$4.04

220A

SCREW-PAN-CROSS,5X14

220F0514

$1.81

318

NUT-HEX-SMALL

318J0800

$3.59

411

WASHER PLAIN 8MM

411B0800

$0.93

482

CIRCLIP-TYPE-E,8MM

482L8000

$0.67

554

PIN-SNAP,8MM

554A0800

$1.26

554A

PIN-SNAP,10MM

554A1000

$1.36

11053

BRACKET,SHIFT LEVER

11053-1496

Unavailable

13168

LEVER

13168-0069

$29.08

13236

LEVER-COMP,SHIFT

13236-0073

$41.05

21083

ARM

21083-0023

$52.78

46075

GRIP

46075-0012

$14.62

46075A

GRIP

46075-0014

$7.56

46075B

GRIP,SHIFT

46075-1185

$30.65

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$4.31

92022

WASHER,10.5X26X2.3

92022-044

$3.92

92026

SPACER

92026-0074

$3.90

92027

COLLAR,4.5X6.5X9.3

92027-1313

$8.98

92028

BUSHING

92028-1507

$5.25

92043

92043-0053

$5.65

92043A

PIN,FOOTRST STEP FIT

92043-1069

$6.22

92081

SPRING

92081-1714

$4.26

92144

SPRING

92144-1510

$6.41

92145

SPRING

92145-0249

$7.76

92151

BOLT,6MM

92151-1747

$9.35

92171

CLAMP

92171-0365

$6.75
