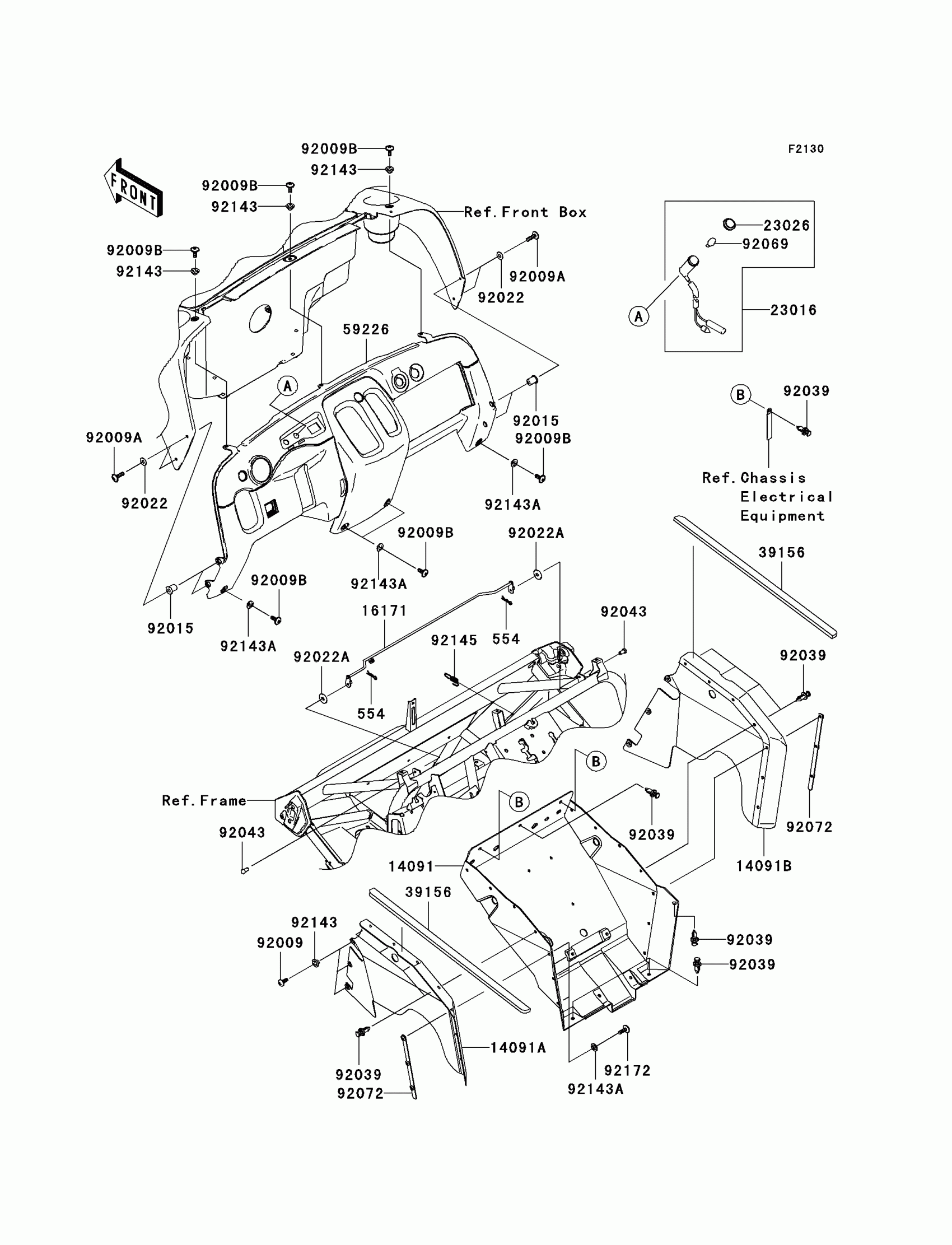

Kawasaki Mule 610 4x4 Hardwoods Green HD Frame Fittings(Front) Diagram

Description

Price

554

PIN,SNAP

554A0600

$0.93

14091

COVER,FLOOR,CNT

14091-0408

$111.25

14091A

COVER,FLOOR,SIDE,LH

14091-0424

$52.61

14091B

COVER,FLOOR,SIDE,RH

14091-0425

$52.61

16171

LINK,HOOD

16171-0010

Unavailable

23016

LAMP-ASSY,TEMP

23016-1128

$54.60

23026

LENS,TEMP LAMP

23026-1157

$4.33

39156

PAD

39156-0071

$27.15

59226

PANEL-CONTROL,S.M.BROWN

59226-0009-275

$134.55

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92009A

SCREW,6X22,BLACK

92009-1256

$2.78

92009B

SCREW,6X16

92009-1621

Unavailable

92015

NUT

92015-1700

$8.58

92022

WASHER,6.5X16X1

92022-1143

$3.92

92022A

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.49

92039

RIVET

92039-1229

$1.19

92043

PIN,6X9

92043-1626

$2.26

92069

BULB,12V 1.7W,T10

92069-1059

$4.96

92072

BAND

92072-0042

$6.36

92143

COLLAR

92143-1057

$5.00

92143A

COLLAR

92143-1087

$4.31

92145

SPRING

92145-0215

$4.55

92172

SCREW,6X18

92172-0002

$2.80
