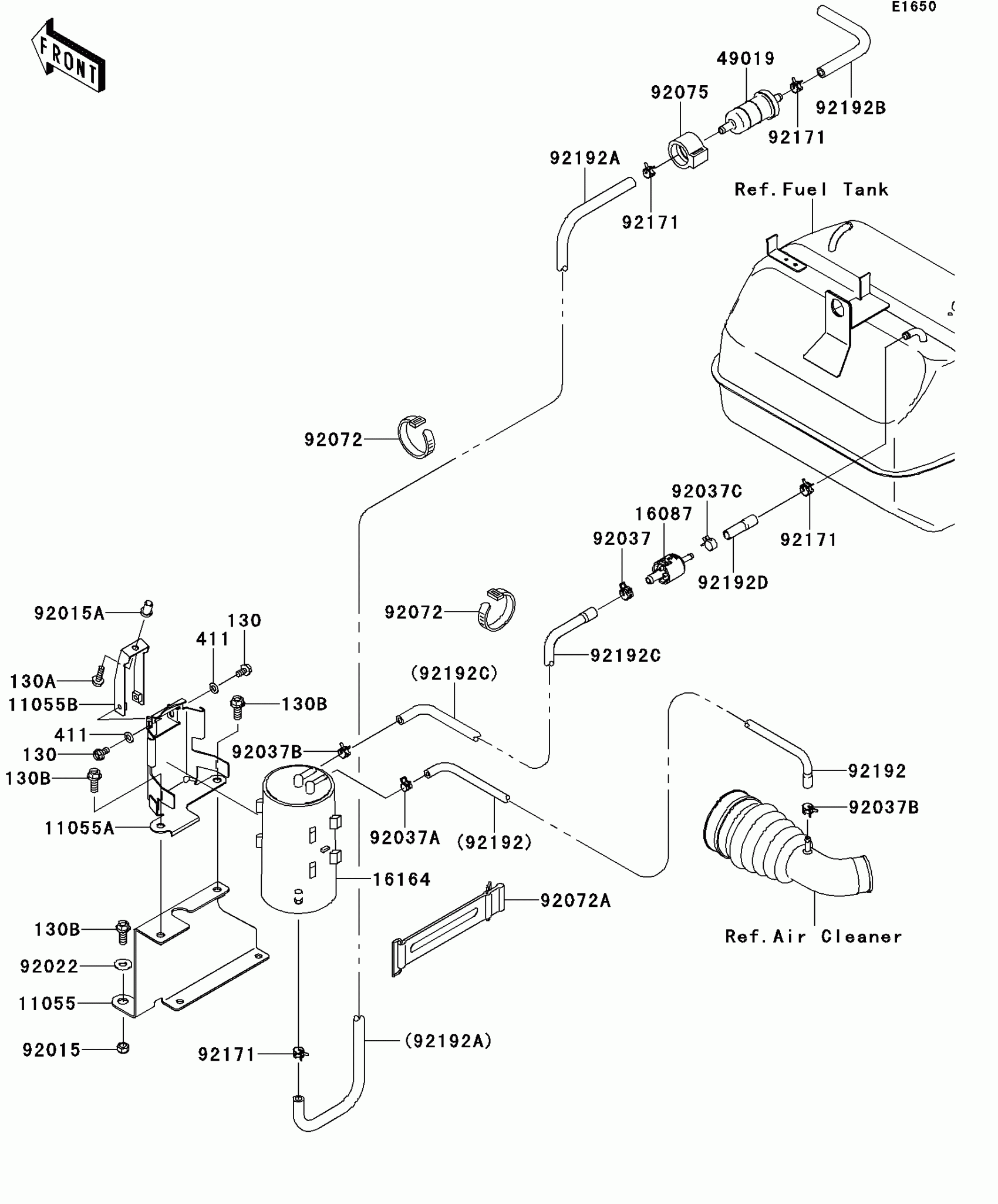

Kawasaki MULE™ 610 4x4 Fuel Evaporative System(ABF) Diagram

Description

Price

11055

BRACKET,LWR

11055-0262

$26.80

11055A

BRACKET,UPP

11055-0263

$24.77

11055B

BRACKET,FIX UPP

11055-0401

$17.12

16087

VALVE-CHECK

16087-0002

$49.02

16164

CANISTER

16164-0007

Unavailable

49019

FILTER-FUEL

49019-1055

$22.97

92015

NUT,LOCK,8MM

92015-1124

$5.42

92015A

NUT,POP,6MM

92015-1759

$5.00

92022

WASHER,8.5X20X1.6,BLACK

92022-1317

$4.31

92037

CLAMP,HOSE CLIP

92037-1181

$3.36

92037A

CLAMP,TUBE

92037-1461

$3.88

92037B

CLAMP,TUBE

92037-1505

$4.76

92037C

CLAMP

92037-2113

$1.03

92072

BAND,L=186

92072-056

$5.00

92072A

BAND,L=168

92072-1306

$13.75

92075

DAMPER,FUEL FILTER

92075-1853

$12.35

92171

CLAMP

92171-0515

$6.38

92192

TUBE,CANISTER-DUCT

92192-0591

$11.49

92192A

TUBE,CANISTER-FILTER

92192-0592

$10.98

92192B

TUBE,FILTER-AIR

92192-0609

$6.10

92192C

TUBE,CHECK VALVE-CANISTER

92192-0768

$10.80

92192D

TUBE,TANK-CHECK VALVE

92192-0769

$3.66

130

BOLT-FLANGED,6X12

130BB0612

$2.34

130A

BOLT-FLANGED,6X18

130BB0618

$1.81

130B

BOLT-FLANGED,8X20

130BB0820

$0.84

411

WASHER-PLAIN,6MM

411AB0600

$1.18
