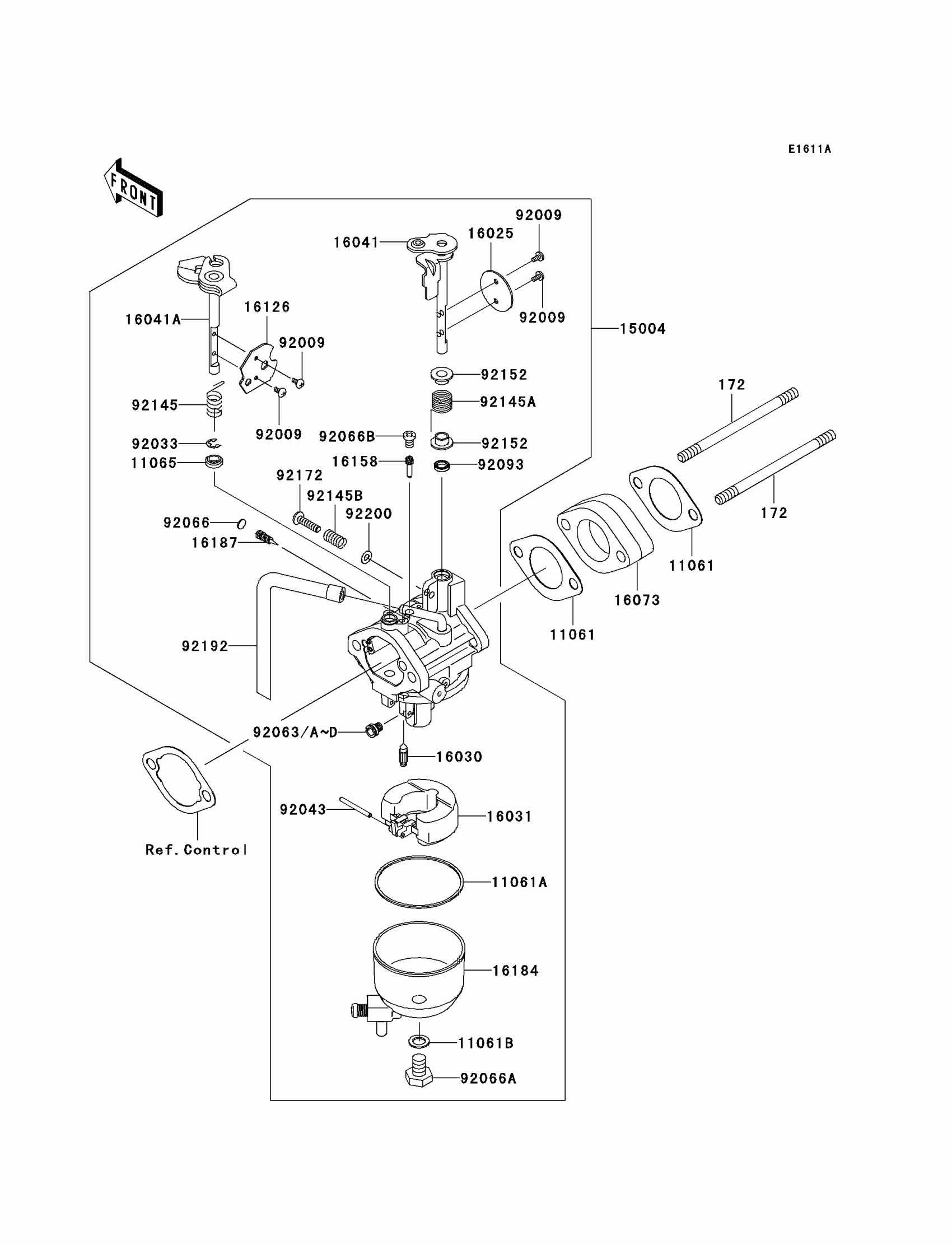

Kawasaki Mule 610 4x4 Carburetor(A8F-AAF)(CA) Diagram

#

Description
Price

11061

GASKET,HEAD-CARB

11061-7027

$1.09

11061A

GASKET,FLOAT CHAMBER

11061-7044

$8.74

11061B

GASKET,CHAMBER

11061-7045

$2.01

11065

CAP

11065-7012

$1.67

15004

CARBURETOR-ASSY

15004-2035

Unavailable

16025

VALVE-THROTTLE

16025-7008

$8.44

16030

VALVE-FLOAT

16030-7004

$23.73

16031

FLOAT

16031-7004

$27.02

16041

SHAFT-CARBURETOR

16041-2261

$32.74

16041A

SHAFT-CARBURETOR

16041-2262

$32.74

16073

INSULATOR

16073-2229

$6.89

16126

VALVE

16126-2242

$7.76

16158

JET-SLOW,#54

16158-2051

$29.48

16184

CHAMBER-ASSY-FLOAT

16184-7018

$38.40

16187

NEEDLE-JET

16187-7002

$15.20

92009

SCREW

92009-2049

$0.80

92033

RING-SNAP

92033-7007

$1.88

92043

PIN,FLOAT

92043-7016

$2.31

92063

JET-MAIN,#99

92063-2458

Unavailable

92063A

JET-MAIN,#105

92063-7013

Unavailable

92063B

JET-MAIN,#102

92063-7014

Unavailable

172

BOLT-STUD,6X95

172BA0695

$3.30

92063C

JET-MAIN,#109

92063-7044

Unavailable

92063D

JET-MAIN,#112

92063-7045

$26.83

92066

PLUG,EXPANSION

92066-7009

$7.35

92066A

PLUG

92066-7020

$12.41

92066B

PLUG

92066-7021

$4.85

92093

SEAL,D=5.9

92093-7001

$2.26

92145

SPRING

92145-2151

$2.94

92145A

SPRING

92145-2152

$2.94

92145B

SPRING

92145-7039

$2.53

92152

COLLAR

92152-7008

$5.41

92172

SCREW

92172-7007

$1.35

92192

TUBE

92192-2085

$7.76

92200

WASHER

92200-7025

$1.95
