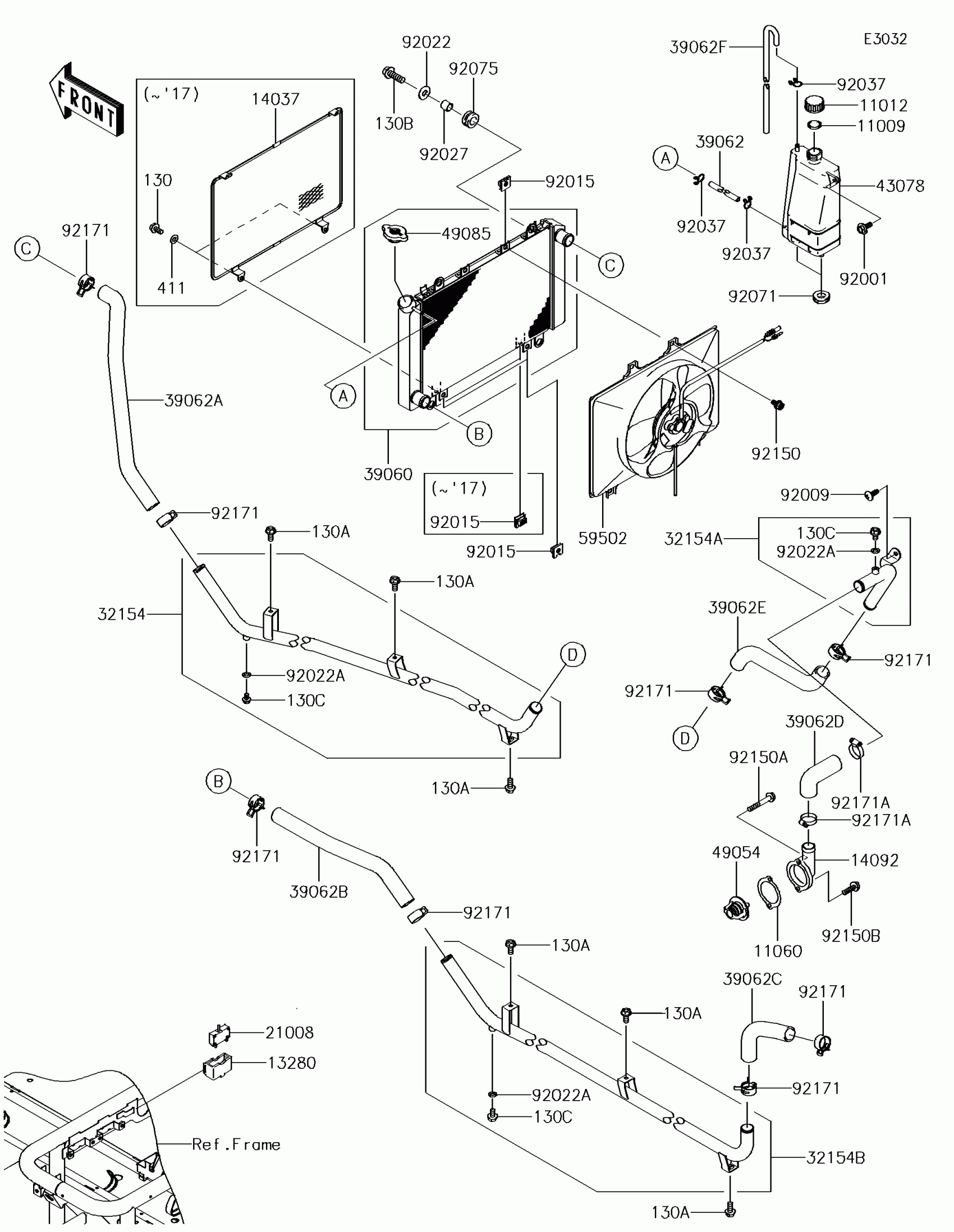

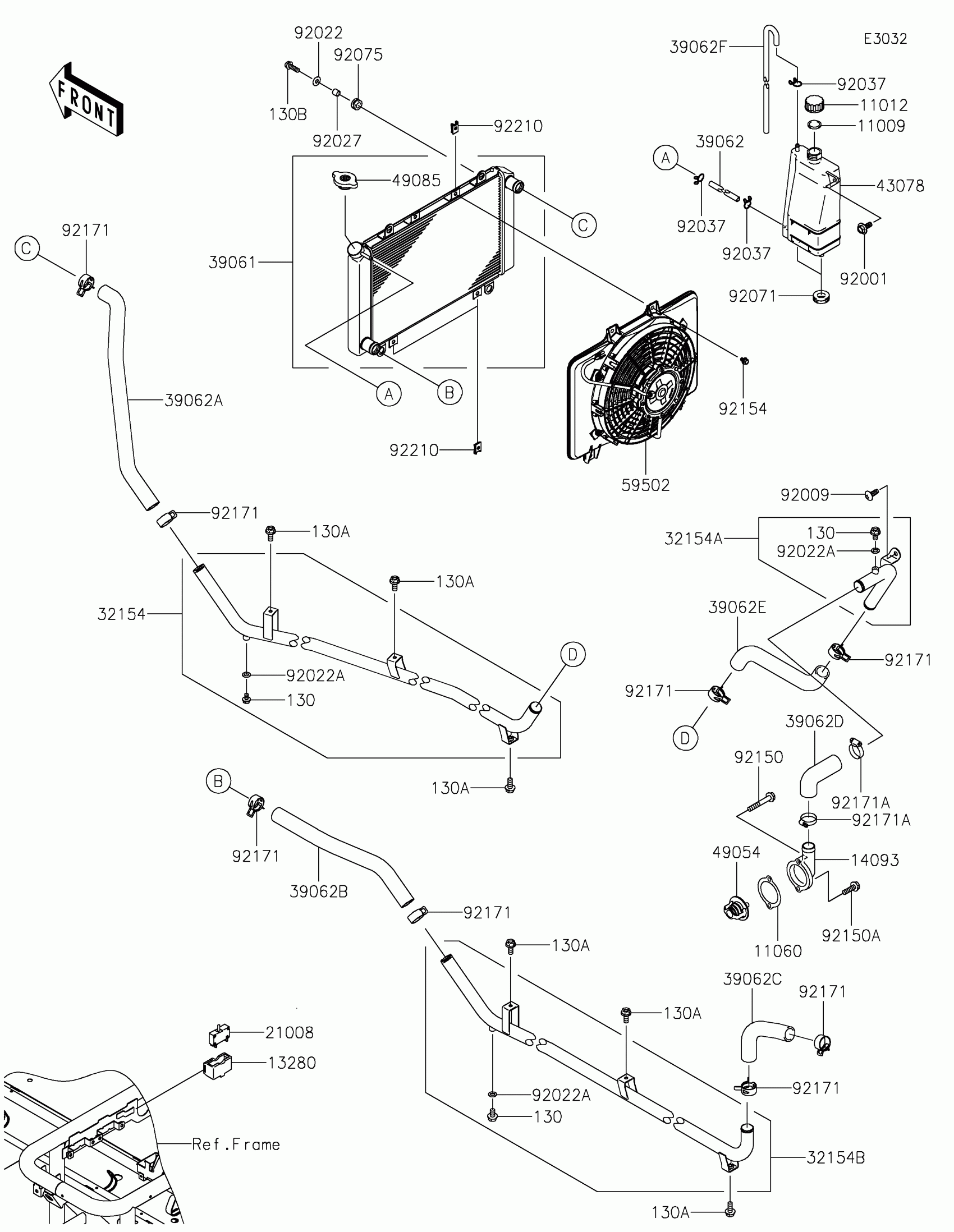

Kawasaki MULE™ 4010 TRANS4x4® CAMO Radiator Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.42

11012

CAP

11012-1084

$1.72

11060

GASKET,THERMOSTAT COVER

11060-2084

$2.83

13280

HOLDER,BREAKER

13280-0082

$5.60

14037

SCREEN

14037-0088

$47.02

14092

COVER,THERMOSTAT

14092-1140

$15.98

21008

BREAKER,FAN MOTOR

21008-0001

$26.03

32154

PIPE,RH FR

32154-7503

$116.41

32154A

PIPE,RH RR

32154-7505

$30.65

32154B

PIPE,LH

32154-7507

$74.78

39060

RADIATOR

39060-0066

$827.09

39062

HOSE-COOLING,5.5X10.5X650

39062-0266

$3.68

39062A

HOSE-COOLING,PIPE-RAD.

39062-0282

$26.43

39062B

HOSE-COOLING,RAD.-LH PIPE

39062-0283

$24.55

39062C

HOSE-COOLING,PIPE-E/G

39062-0286

$16.97

39062D

HOSE-COOLING

39062-1832

$16.89

39062E

HOSE-COOLING

39062-7502

$18.36

39062F

HOSE-COOLING,DRAIN

39062-7507

$24.47

43078

RESERVOIR

43078-0062

$29.75

49054

THERMOSTAT

49054-2056

$28.18

49085

CAP-ASSY-PRESSURE

49085-1066

$37.42

59502

FAN-ASSY

59502-0042

$709.73

92001

BOLT,W/P,6X16

92001-1860

$4.31

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92015

NUT

92015-1487

$4.80

92022

WASHER,8.5X20X1.6,BLACK

92022-1317

$4.31

92022A

WASHER,6.2X11X1

92022-304

$3.65

92027

COLLAR

92027-102

$1.08

92037

CLAMP,TUBE

92037-147

$7.34

92071

GROMMET

92071-1115

$5.46

92075

DAMPER

92075-294

$4.10

92150

BOLT,6X12

92150-1186

$3.37

92150A

BOLT,6X40

92150-2230

$1.52

92150B

BOLT,6X20

92150-2231

$1.94

92171

CLAMP,COOLING HOSE

92171-0060

$4.41

92171A

CLAMP

92171-0179

$8.20

130

BOLT-FLANGED,6X12

130BA0612

$1.72

130A

BOLT-FLANGED,6X14

130BA0614

$1.20

130B

BOLT-FLANGED,8X25

130BA0825

$2.95

130C

BOLT-FLANGED,6X10

130BB0610

$2.49

411

WASHER-PLAIN,6MM

411AA0600

$2.92
