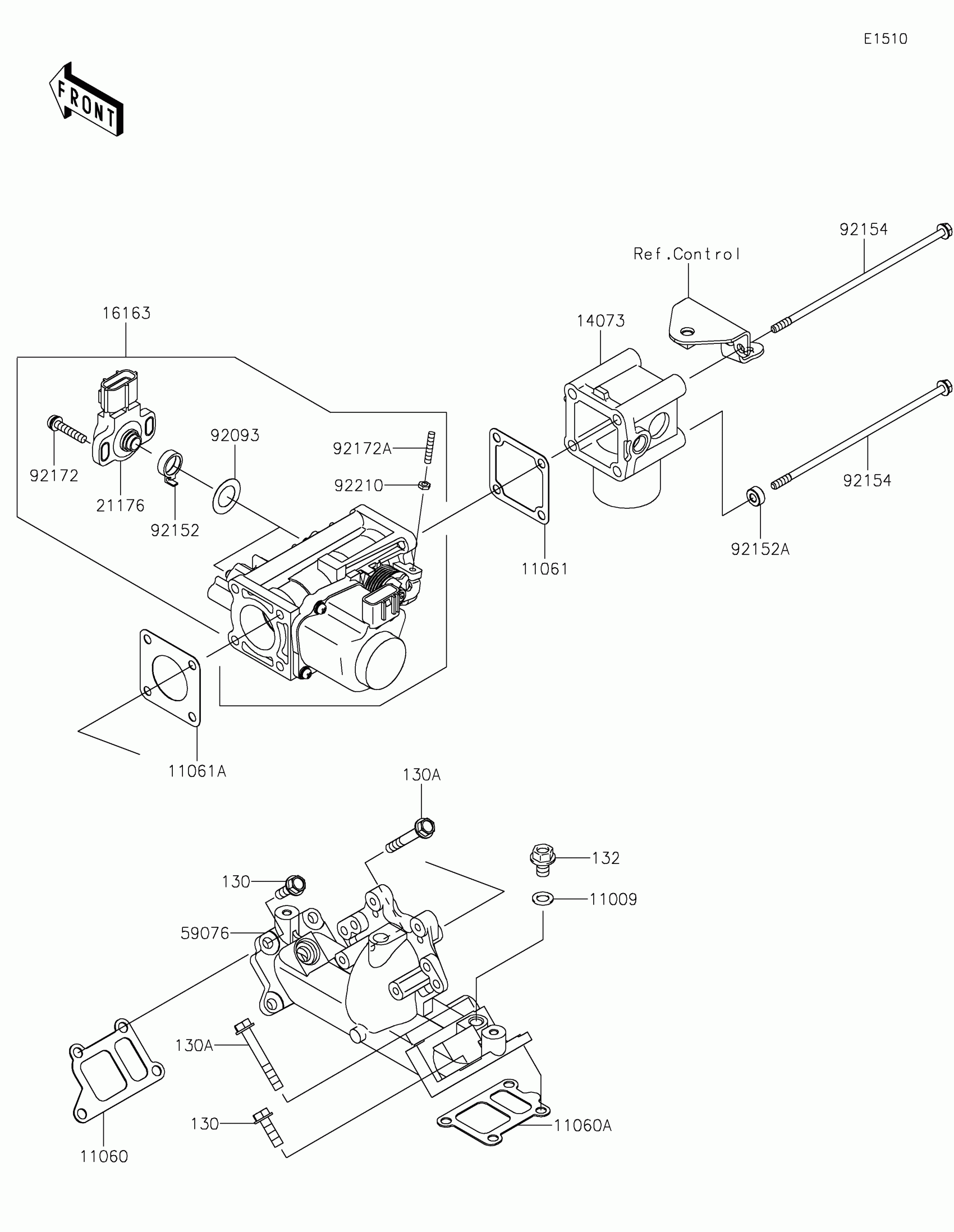

Kawasaki MULE 4000 TRANS™ Throttle(WJF) Diagram

Description

Price

11009

GASKET,8.2X14X1.0

11009-1344

$3.17

11060

GASKET,INTAKE MANIFOLD

11060-2087

$3.36

11060A

GASKET,INTAKE MANIFOLD

11060-2088

$2.83

11061

GASKET

11061-0861

$3.53

11061A

GASKET

11061-2179

$3.43

14073

DUCT

14073-0780

$107.22

16163

THROTTLE-ASSY

16163-0793

$919.66

21176

SENSOR

21176-2112

$162.42

59076

MANIFOLD-INTAKE

59076-0718

$275.87

92093

SEAL

92093-2133

$8.33

92152

COLLAR

92152-2093

$6.60

92152A

COLLAR,LWR SIDE

92152-2333

$1.63

92154

BOLT,FLANGED,6X195

92154-2653

$14.62

92172

SCREW

92172-0254

$2.97

92172A

SCREW

92172-2106

$4.73

92210

NUT

92210-2120

$1.61

130

BOLT-FLANGED,6X20

130BA0620

$1.74

130A

BOLT-FLANGED,6X45

130CA0645

$1.47

132

BOLT-FLANGED-SMALL,8X12

132BB0812

$1.81
