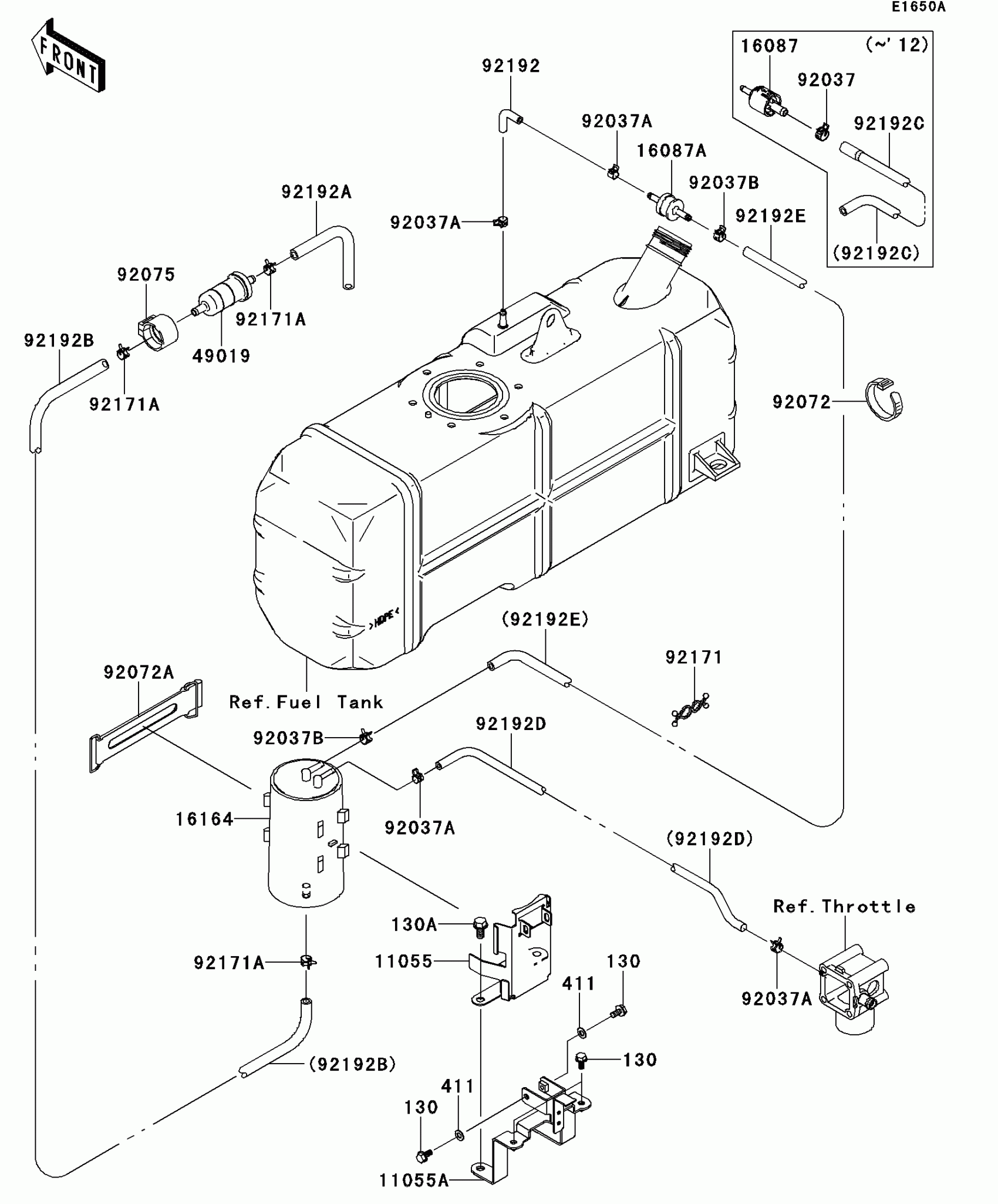

Kawasaki MULE™ 4000 Fuel Evaporative System(PBF-PDF) Diagram

Description

Price

11055

BRACKET,UPP

11055-0263

$24.77

11055A

BRACKET,LWR

11055-0407

$18.69

16087

VALVE-CHECK

16087-0002

$49.02

16087A

VALVE-CHECK

16087-0703

$37.65

16164

CANISTER

16164-0007

Unavailable

49019

FILTER-FUEL

49019-1055

$22.97

92037

CLAMP,HOSE CLIP

92037-1181

$3.36

92037A

CLAMP,TUBE

92037-1461

$3.88

92037B

CLAMP,TUBE

92037-1505

$4.76

92072

BAND,L=186

92072-056

$5.00

92072A

BAND,L=168

92072-1306

$13.75

92075

DAMPER,FUEL FILTER

92075-1853

$12.35

92171

CLAMP

92171-0476

$3.90

92171A

CLAMP

92171-0515

$6.38

92192

TUBE,FUEL TANK-CHECK VALVE

92192-0067

$3.87

92192A

TUBE,FILTER-AIR

92192-0609

$6.10

92192B

TUBE,CANISTER-FUEL FILTER

92192-0713

$7.74

92192C

TUBE,CANISTER-VALVE

92192-0735

$9.02

92192D

TUBE,4.5X9.5X460

92192-0909

$12.71

92192E

TUBE

92192-1161

$5.26

130

BOLT-FLANGED,6X12

130BB0612

$2.34

130A

BOLT-FLANGED,8X16

130BB0816

$1.71

411

WASHER-PLAIN,6MM

411AB0600

$1.18
