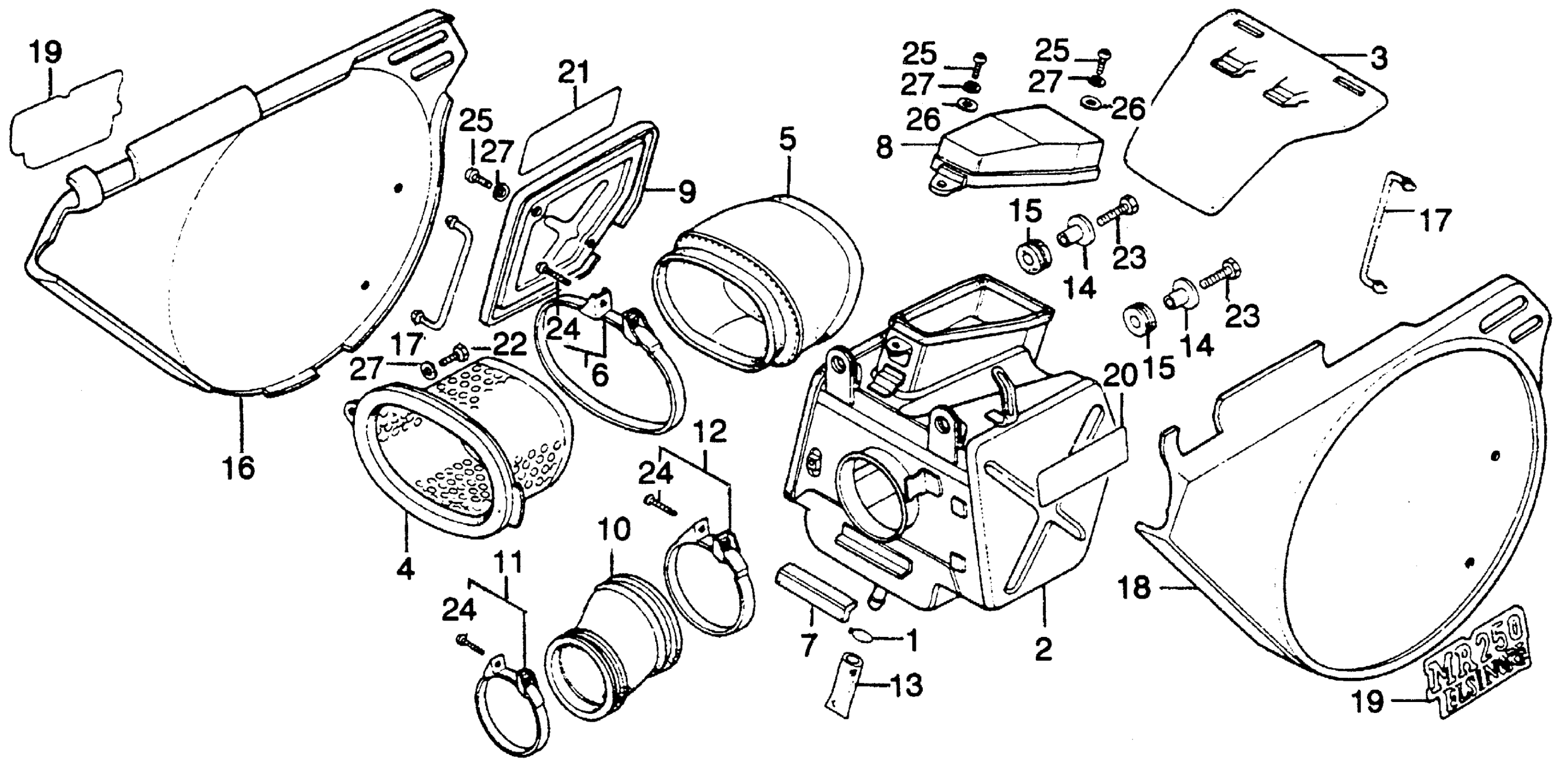

Honda MR250A (76) ELSINORE, JPN, VIN# MR250-1000001 TO MR250-1010551 AIR CLEANER + SIDE COVER Diagram

#

Description
Price

1

CLIP, BREATHER TUBE

15772-292-010

$2.92

2

HOUSING, AIR CLEANER (NOT AVAILABLE)

17210-395-670

Unavailable

3

SPLASH GUARD, AIR CLEANER (NOT AVAILABLE) | (Optional).

17211-381-810

Unavailable

4

BASE, AIR CLEANER HOUSING (NOT AVAILABLE)

17211-395-670

Unavailable

5

ELEMENT, AIR CLEANER

17214-381-000

Unavailable

6

BAND, AIR CLEANER ELEMENT (NOT AVAILABLE)

17215-381-000

Unavailable

7

RUBBER, AIR CLEANER (NOT AVAILABLE)

17221-360-300

Unavailable

8

DUCT, AIR CLEANER (NOT AVAILABLE)

17224-395-670

Unavailable

9

COVER, AIR CLEANER HOUSING (NOT AVAILABLE)

17228-395-670

Unavailable

10

TUBE, AIR CLEANER CONNECTING

17253-381-000

Unavailable

11

BAND B, AIR CLEANER CONNECTING TUBE (NOT AVAILABLE)

17257-357-000

Unavailable

12

BAND, AIR CLEANER

17257-HB5-000

$14.02

12

BAND, AIR CLEANER This part replaces 17257-360-700.

17257-HB5-000

$14.02

13

TUBE,DRAIN This part replaces 17358-381-000.

17358-KEJ-900

Unavailable

14

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

14

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

14

COLLAR, RR. FENDER

61105-428-000

Unavailable

15

RUBBER, SETTING (22MM)

61315-358-000

$5.34

16

COVER, R. SIDE *R25* (LIGHT RUBY RED) (NOT AVAILABLE)

83500-381-000ZB

Unavailable

16

COVER, R. SIDE *R25* (LIGHT RUBY RED) (NOT AVAILABLE) This part replaces 83500-395-670ZA.

83500-381-000ZB

Unavailable

17

BAND, SIDE COVER

83503-360-700

Unavailable

18

COVER, L. SIDE *R25* (LIGHT RUBY RED) (NOT AVAILABLE)

83600-381-000ZB

Unavailable

18

COVER, L. SIDE *R25* (LIGHT RUBY RED) (NOT AVAILABLE) This part replaces 83600-395-670ZA.

83600-381-000ZB

Unavailable

19

MARK, R. SIDE COVER (NOT AVAILABLE)

87203-395-670

Unavailable

20

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

21

LABEL, AIR CLEANER CAUTION

87506-340-670

Unavailable

22

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

22

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

22

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

23

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

23

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

23

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

24

SCREW, PAN (4X20)

93500-04020-0A

$1.49

25

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

25

SCREW, PAN (6X12)

93500-06012-0A

$1.49

25

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

26

WASHER, PLAIN (6MM)

94101-06800

$1.49

27

WASHER, SPRING (6MM)

94111-06000

$1.49
