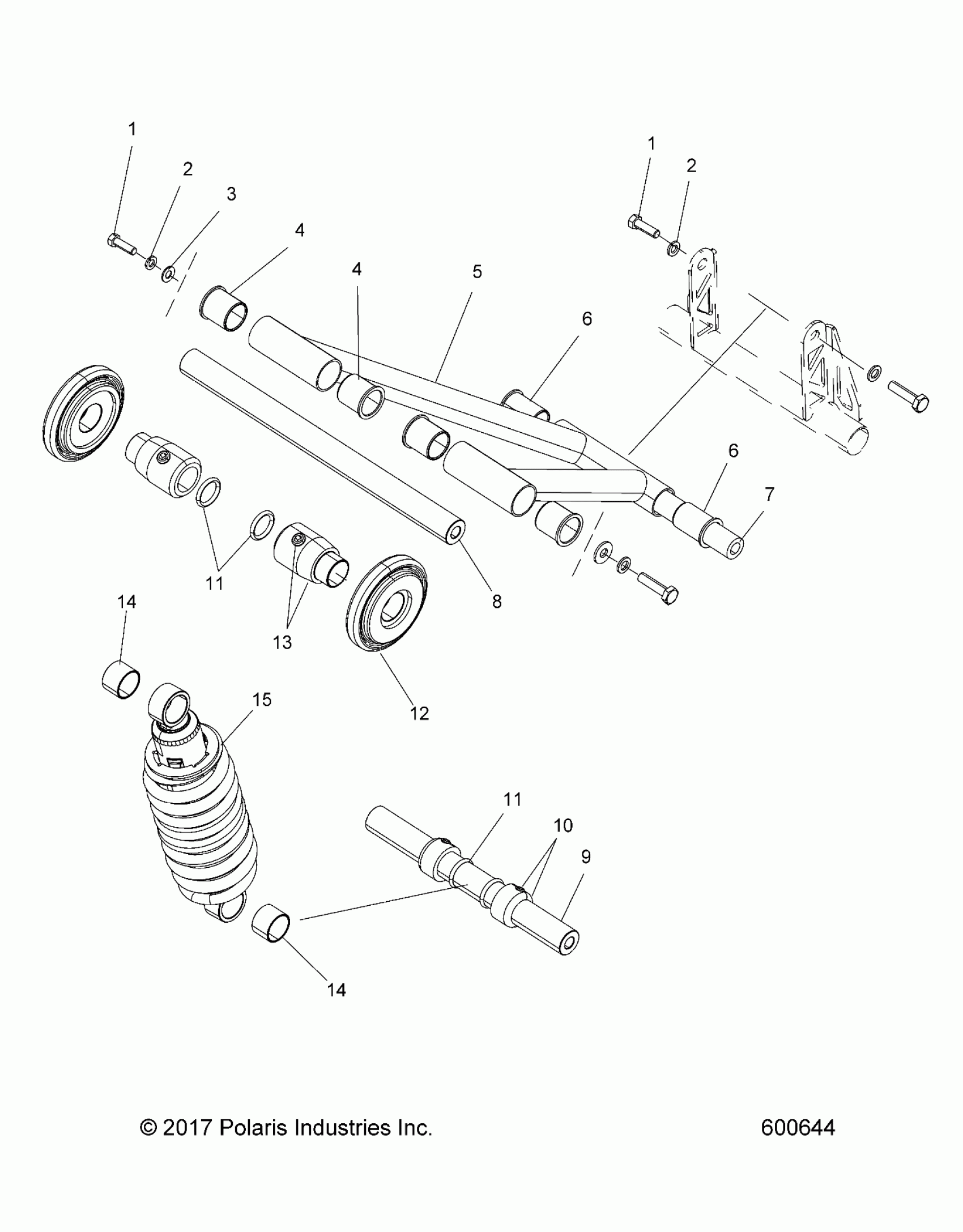

Polaris MOUNTAIN HORSE 120 BASE (R01) - J19VCAXXXA SUSPENSION, TORQUE ARM, REAR - J19VCAXXXA (600644) Diagram

#

Description

Price

1

SCR-3/8-16X1.25 HX HD CP GR5-Y

7515440

$3.99

1

SCR-3/8-16X1.25 HX HD CP GR5-Y

7515440

$3.99

2

WASHER-3/8 SPRING-LOCK-MED-Y

7552603

$1.49

2

WASHER-3/8 SPRING-LOCK-MED-Y

7552603

$1.49

3

WASHER-.385X.88X.075,FL-Y THR

7556242

$2.39

4

BUSHING-SUSPENSION MOUNT

5453941

Unavailable

4

BUSHING-SUSPENSION MOUNT

5453941

Unavailable

5

RTA-12.5 MBLK

1543931-458

Unavailable

6

BUSHING-LWR TORQUE ARM

5453939

Unavailable

6

BUSHING-LWR TORQUE ARM

5453939

Unavailable

7

SHAFT-RTA LOWER SOLID

5141327

Unavailable

8

SHAFT-UPPER CROSS 12.5

5141023

Unavailable

9

SHAFT-SHOCK LOWER

5141324

Unavailable

10

SET SCREW

7520679

Unavailable

10

COLLAR

5141024

Unavailable

11

O-RING

5416266

Unavailable

11

O-RING

5416266

Unavailable

12

WHEEL- 3.25"

1590579

Unavailable

13

SET SCREW

7520679

Unavailable

13

COLLAR-SHOCK WHEEL

5453942

Unavailable

14

BUSHING-SHOCK

5453940

Unavailable

14

BUSHING-SHOCK

5453940

Unavailable

15

ASM-SHOCK RYDE FX REAR

1543886

Unavailable
