- MOUNTAIN HORSE 120 BASE (R01) - J19VCAXXXA
STEERING, SKI ASM. - J19VCAXXXA (600647)

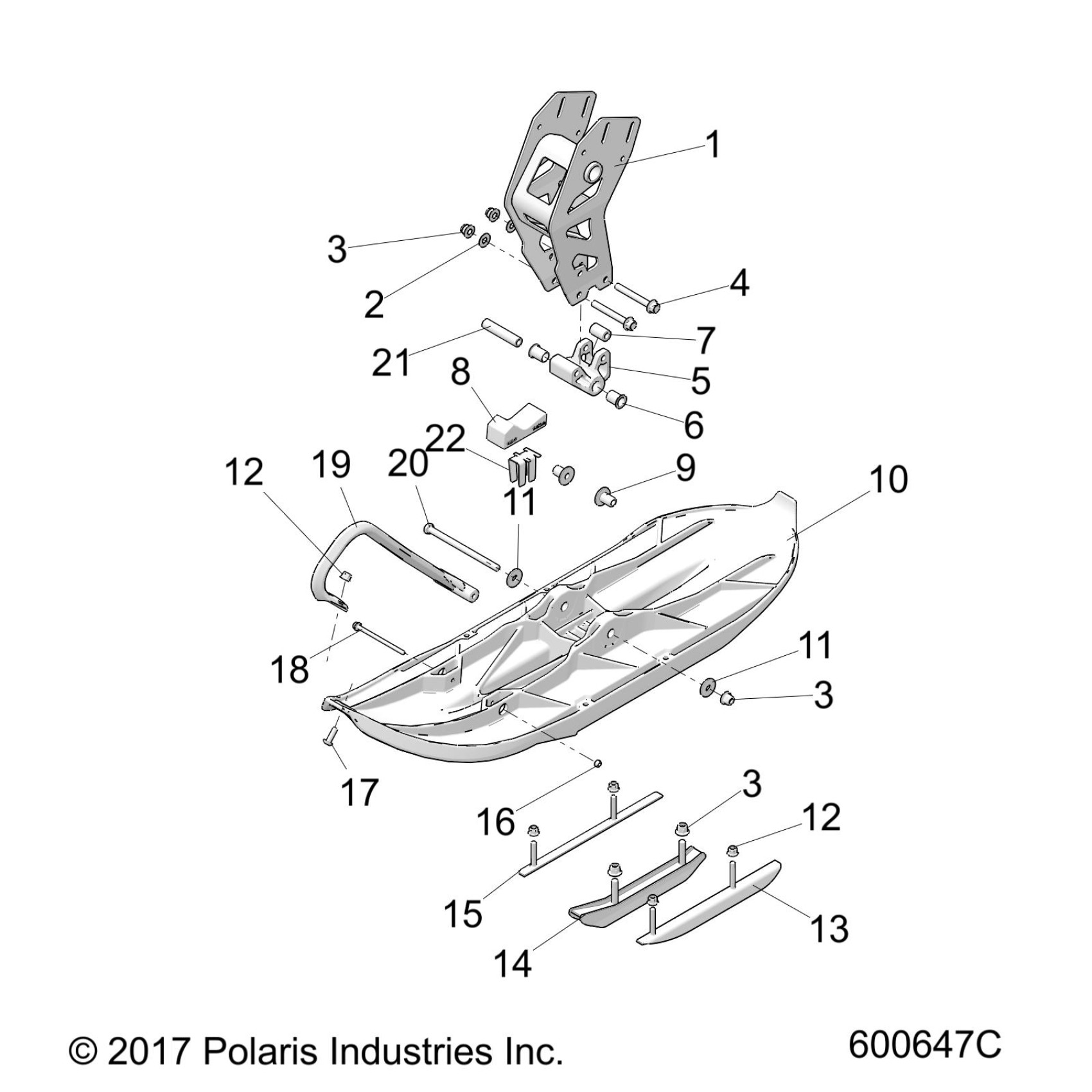

Polaris MOUNTAIN HORSE 120 BASE (R01) - J19VCAXXXA STEERING, SKI ASM. - J19VCAXXXA (600647) Diagram
#
Description
Price
1
SPINDLE, LWT BLACK
1824637-458
Unavailable
2
WSHR-10.5X24X1.2446 ZOD HRD
7556545
$3.19
3
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$3.99
3
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$3.99
3
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$3.99
4
SCR-HXFL-M10X1.5X80 10.9 ZY3
7519143
$10.39
5
ASM-SPINDLE BLOCK
1824638
Unavailable
6
BUSHING-SKI PIVOT
5438460
$15.99
7
SPACER-SPINDLE BLOCK CENTER
5141778
Unavailable
8
STOP-SKI
5416249
Unavailable
9
BUSHING-PLASTIC SKI METRIC
5136908
$15.99
10
ASM-SKI, 11.5 WIDE SVC, BLK [INCL. 9]
1824633-070
Unavailable
11
WASHER-.406X1.25X.125 BELLE-Y
7556130
$6.39
11
WASHER-.406X1.25X.125 BELLE-Y
7556130
$6.39
12
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
12
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
13
SKAG-LH HARD ECOAT
1824635-329
Unavailable
14
SKAG-CENTER
1824634-329
Unavailable
15
SKAG-RH HARD ECOAT
1824636-329
Unavailable
16
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
17
SCR-M8X1.25X25 8.8TXTR ZOD P80
7518906
$3.19
18
SCR-HXFL-M6X1.0X105 8.8 ZOD
7520233
$6.39
19
TOE-PLASTIC SKI,BLK
5435681-070
$40.46
20
SCR-HH M10X1.5X155 8.8 ZOD
7519098
$12.79
21
BUSHING-15.88X10.13X76.20
5136910
$7.99
22
BRKT- SUPPORT SKI
5265239-329
Unavailable
