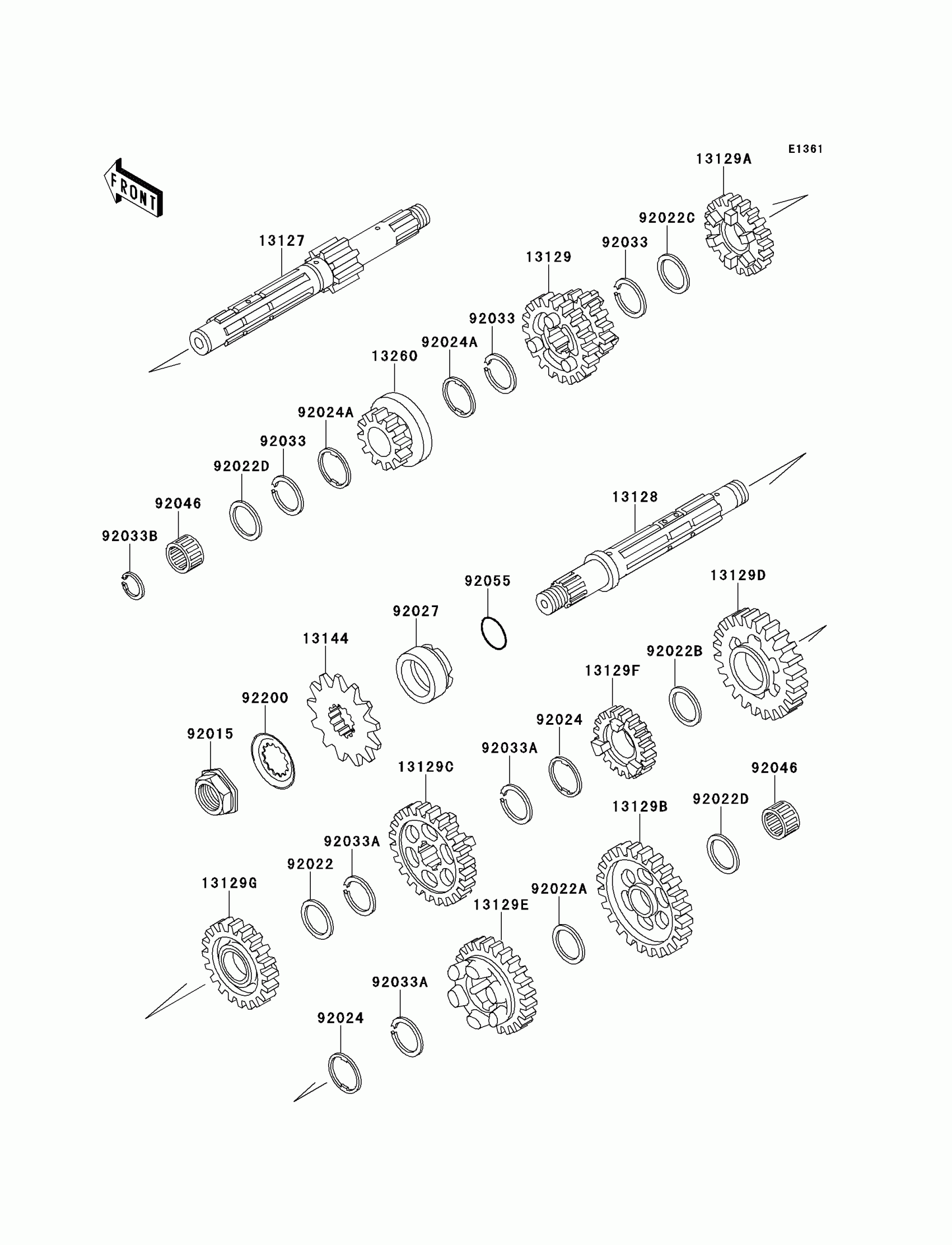

Kawasaki Mojave 250 Transmission(-SF250A026491) Diagram
#
Description
Price
13127
SHAFT-TRANSMISSION INPUT
13127-1139
$232.98
13128
SHAFT-TRANSMISSION OUTPUT
13128-1171
Unavailable
13129
GEAR,INPUT 3RD&5TH,16T&20T
13129-1798
$163.93
13129A
GEAR,INPUT 4TH,20T
13129-1799
$141.87
13129B
GEAR,OUTPUT LOW,30T
13129-1800
$148.17
13129C
GEAR,OUTPUT 2ND,30T
13129-1801
$163.93
13129D
GEAR,OUTPUT 3RD,24T
13129-1802
$141.87
13129E
GEAR,OUTPUT 4TH,25T
13129-1803
$141.87
13129F
GEAR,OUTPUT 5TH,21T
13129-1804
$141.87
13129G
GEAR,OUTPUT REVERSE,24T
13129-1805
$141.87
13144
SPROCKET-OUTPUT,12T
13144-1255
$50.80
13260
GEAR,INPUT 2ND,15T
13260-1077
$141.87
92015
NUT,20MM
92015-1963
$14.90
92022
WASHER,25.3X30X0.5
92022-159
$8.58
92022A
WASHER,17.3X25X0.5
92022-1614
$4.31
92022B
WASHER,25.3X32X1
92022-1800
$5.00
92022C
WASHER,22.3X27X0.5
92022-198
$5.52
92022D
WASHER,17.3X28X1
92022-255
$8.58
92024
WASHER,TOOTHED,22.5X31X0.5
92024-038
$6.22
92024A
WASHER,TOOTHED,22.5X27X0.5
92024-039
$6.27
92027
COLLAR,25X32X15.3
92027-1800
$28.72
92033
RING-SNAP,20X25.5X1.2
92033-025
$4.96
92033A
RING-SNAP,24MM
92033-026
$8.79
92033B
RING-SNAP
92033-032
$4.96
92046
BEARING-NEEDLE,K17X25X13.8X1
92046-1156
$27.26
92055
RING-O,21.5X1.5
92055-1293
$5.00
92200
WASHER
92200-1065
$6.63
