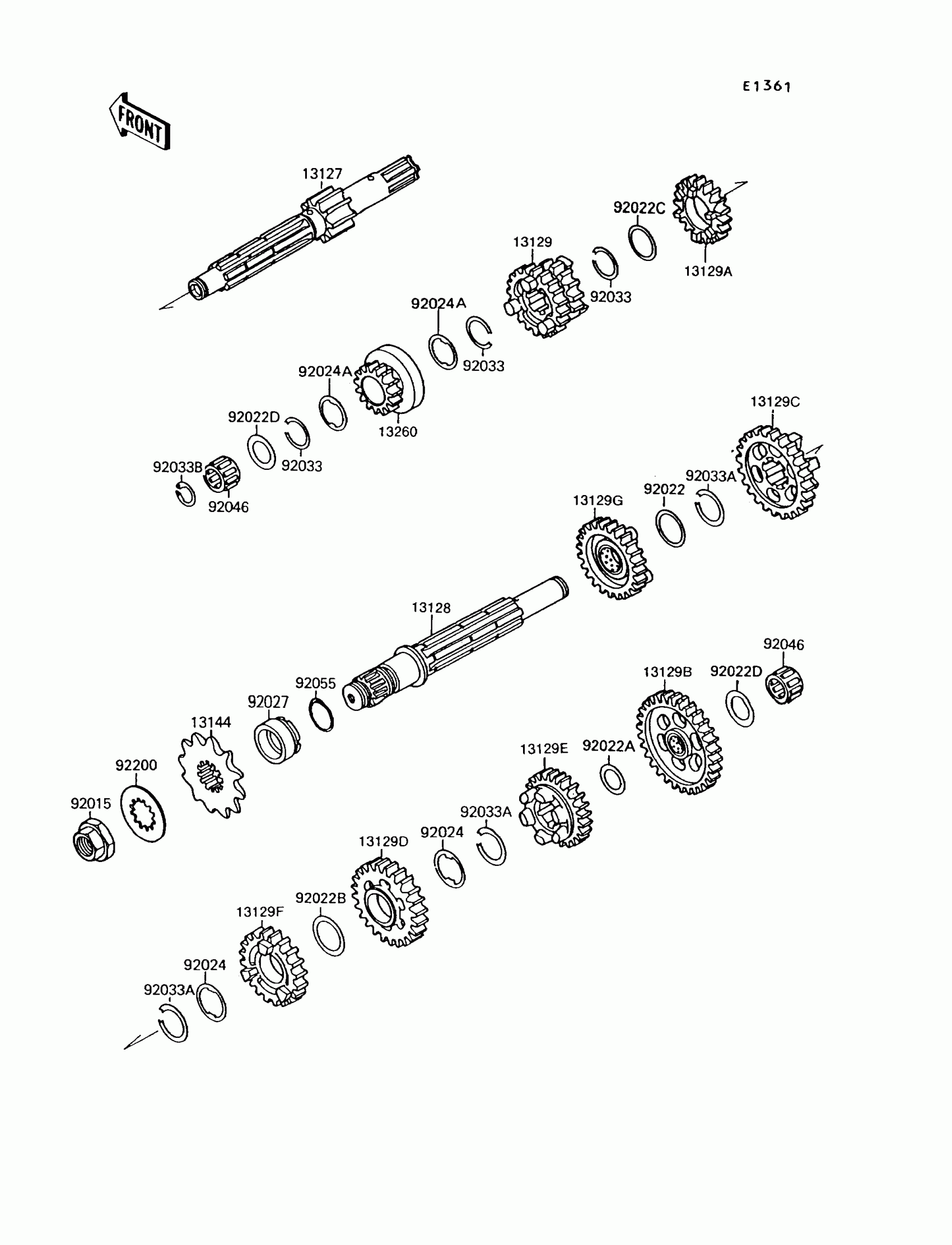

Kawasaki Mojave 250 Transmission Diagram

#

Description
Price

13127

SHAFT-TRANSMISSION INPUT

13127-1139

$232.98

13128A

SHAFT-TRANSMISSION OUTPUT

13128-1171

Unavailable

13129A

GEAR,INPUT 3RD&5TH,16T&20T

13129-1798

$163.93

13129B

GEAR,INPUT 4TH,20T

13129-1799

$141.87

13129C

GEAR,OUTPUT LOW,30T

13129-1800

$148.17

13129D

GEAR,OUTPUT 2ND,30T

13129-1801

$163.93

13129E

GEAR,OUTPUT 3RD,24T

13129-1802

$141.87

13129F

GEAR,OUTPUT 4TH,25T

13129-1803

$141.87

13129G

GEAR,OUTPUT 5TH,21T

13129-1804

$141.87

13129H

GEAR,OUTPUT REVERSE,24T

13129-1805

$141.87

13144

SPROCKET-OUTPUT,12T

13144-1127

Unavailable

13260

GEAR,INPUT 2ND,15T

13260-1077

$141.87

92015

NUT,20MM

92015-1254

$14.90

92022

WASHER,25.3X30X0.5

92022-159

$8.58

92022A

WASHER,17.3X25X0.5

92022-1614

$4.31

92022B

WASHER,25.3X32X1

92022-1800

$5.00

92022C

WASHER,22.3X27X0.5

92022-198

$5.52

92022D

WASHER,17.3X28X1

92022-255

$8.58

92024

WASHER,TOOTHED,22.5X31X0.5

92024-038

$6.22

92024A

WASHER,TOOTHED,22.5X27X0.5

92024-039

$6.27

92027

COLLAR,25X32X15.3

92027-1800

$28.72

92033

RING-SNAP,20X25.5X1.2

92033-025

$4.96

92033A

RING-SNAP,24MM

92033-026

$8.79

92033B

RING-SNAP

92033-032

$4.96

92046

BEARING-NEEDLE,K17X25X13.8X1

92046-1156

$27.26

92055

RING-O,21.5X1.5

92055-1293

$5.00

92200

WASHER

92200-1065

$6.63
