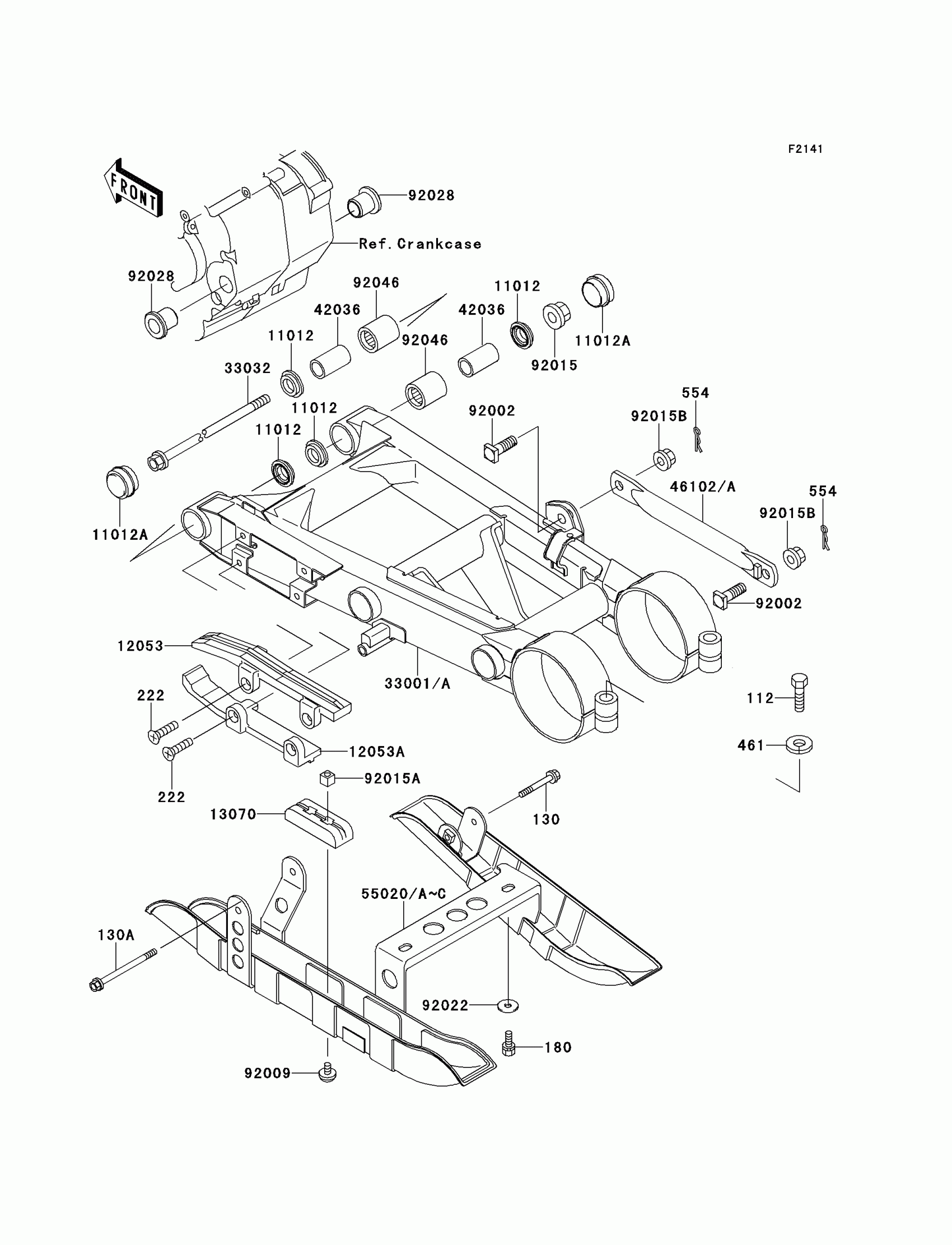

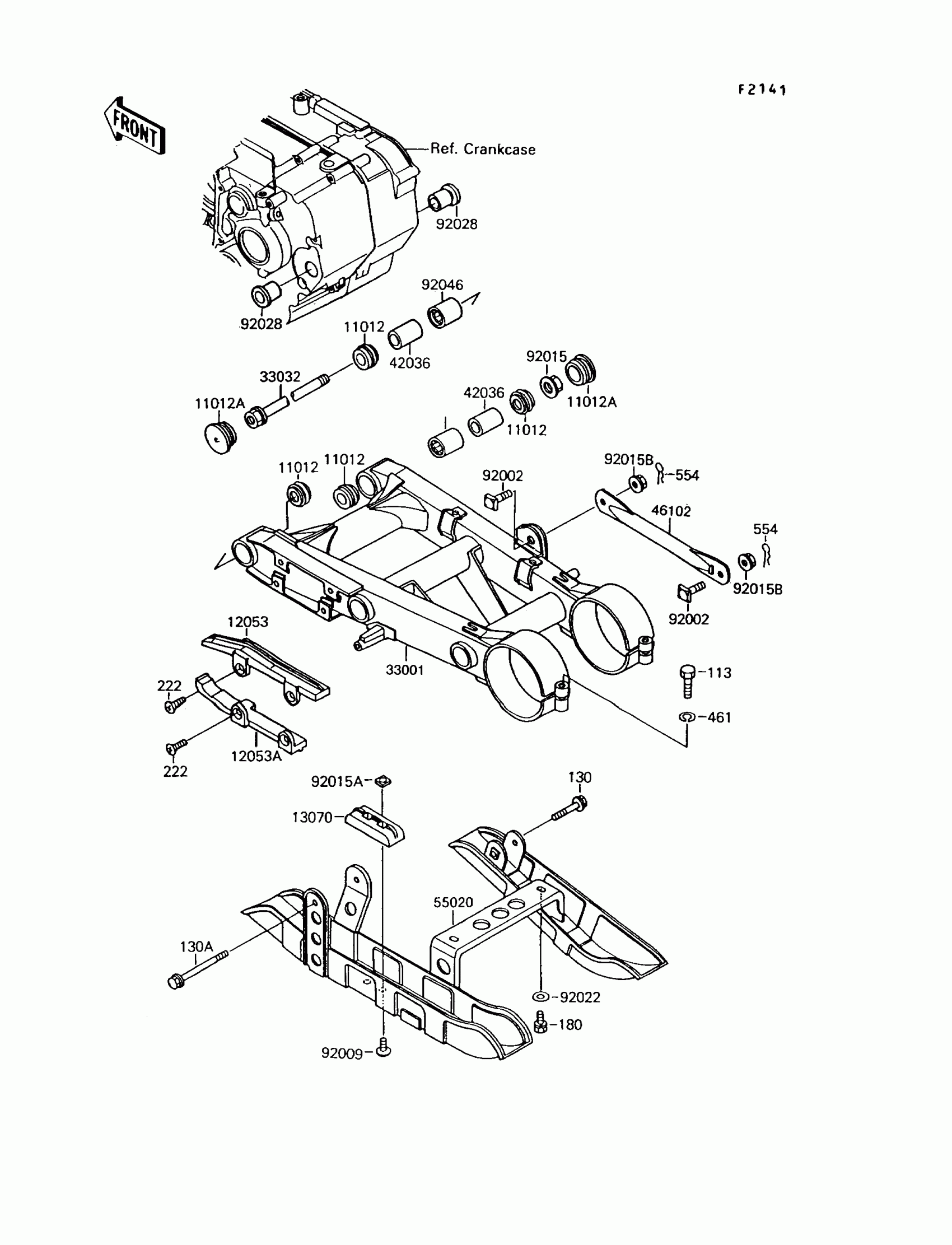

Kawasaki Mojave 250 Swingarm Diagram
#
Description
Price
112
BOLT-UPSET
112P1035
$5.86
130
BOLT-FLANGED,6X40
130G0640
$1.17
130A
BOLT-FLANGED
130G0680
$1.48
180
BOLT-UPSET-WS,6X14
180G0614
$1.28
222
SCREW-CSK-RD-CROS,6X12
222B0612
$4.48
461
WASHER SPRING 10MM
461F1000
$0.67
554
PIN-SNAP,10MM
554A1000
$1.36
11012
CAP,SWING ARM
11012-1259
$21.80
11012A
CAP,SWING ARM
11012-1520
$9.39
12053
GUIDE-CHAIN,UPP
12053-1194
$69.53
12053A
GUIDE-CHAIN,LWR
12053-1195
$53.57
13070
GUIDE,CHAIN
13070-1156
$29.05
33001
ARM-COMP-SWING,L.GREEN
33001-1415-CC
Unavailable
33032
SHAFT-SWING ARM
33032-1139
$91.10
42036
SLEEVE,SWING ARM
42036-1064
$21.29
46102
ROD,TORQUE,L.GREEN
46102-1342-CC
$13.18
55020B
GUARD,CHAIN&DISC,L.GREEN
55020-1636-CC
$29.26
92002
BOLT,10X28
92002-1733
$10.04
92009
SCREW,6X10,WHITE
92009-1286
$4.31
92015
NUT,14MM
92015-1407
$9.91
92015A
NUT,6MM
92015-1452
$5.23
92015B
NUT,LOCK,10MM
92015-1597
$5.52
92022
WASHER,6.5X20X1.6
92022-1804
$1.40
92028
BUSHING,SWING ARM
92028-1261
$17.39
92046
BEARING-NEEDLE
92046-1128
$26.03
