Description

Price

11045

BRACKET,REFLECTOR,LH

11045-1569

Unavailable

11045A

BRACKET,REFLECTOR,RH

11045-1570

Unavailable

14024

COVER,REAR FENDER,P.WHITE

14024-1283-6F

$27.39

35011B

STAY,REAR FENDER,L.GREEN

35011-1643-CC

$46.84

35011C

STAY,REAR FENDER,FR,L.GREEN

35011-1644-CC

$51.27

35023

FENDER-REAR,P.WHITE

35023-1167-6F

Unavailable

92009

SCREW,6X18,BLACK

92009-1181

$2.80

92009A

SCREW,6X14

92009-1288

$3.92

92009B

SCREW,6X25

92009-1465

$3.92

92015

NUT,FLANGED,6MM,BLACK

92015-1237

$5.52

92015A

NUT,LOCK,FLANGED,6MM

92015-1339

$1.35

92022

WASHER,6.5X20X1.6

92022-1804

$1.40

92027

COLLAR,L=5.1

92027-1260

$6.22

92027A

COLLAR

92027-1767

$5.52

92072

BAND,L=150

92072-1203

$14.23

92072A

BAND

92072-1215

$39.63

92074

PLUG,11X3.2

92074-038

$7.22

92075

DAMPER,6X10X15

92075-1808

$1.39

92075A

DAMPER

92075-1860

$11.60

92075B

DAMPER

92075-1861

$10.35

92075C

DAMPER

92075-1882

$8.10

92160

DAMPER

92160-1011

$4.11

92160A

DAMPER

92160-1017

$5.78

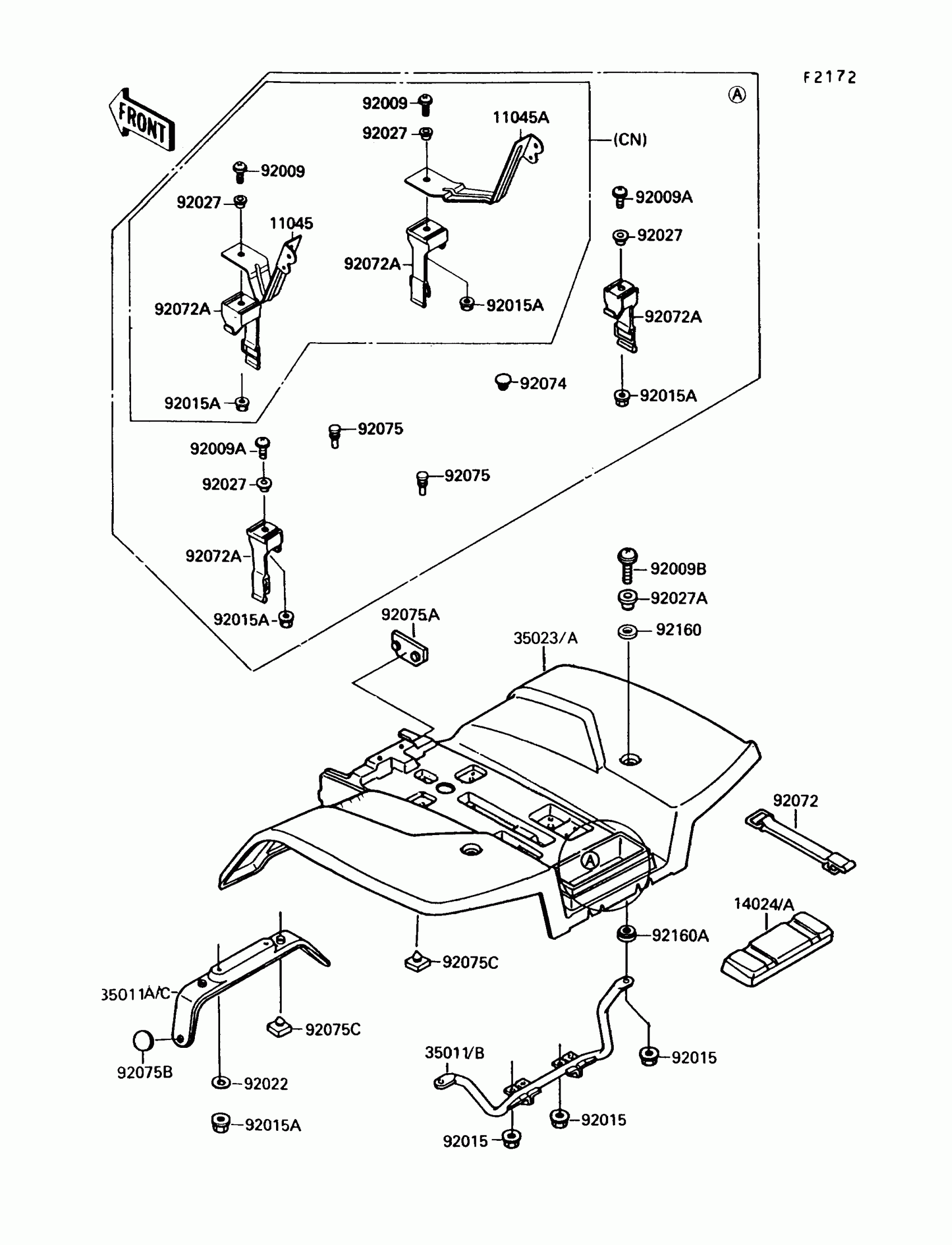

Kawasaki Mojave 250 Rear Fender Diagram

BRACKET,REFLECTOR,LH

BRACKET,REFLECTOR,RH

COVER,REAR FENDER,P.WHITE

STAY,REAR FENDER,L.GREEN

STAY,REAR FENDER,FR,L.GREEN

FENDER-REAR,P.WHITE

SCREW,6X18,BLACK

SCREW,6X14

SCREW,6X25

NUT,FLANGED,6MM,BLACK

NUT,LOCK,FLANGED,6MM

WASHER,6.5X20X1.6

COLLAR,L=5.1

COLLAR

BAND,L=150

BAND

PLUG,11X3.2

DAMPER,6X10X15

DAMPER

DAMPER

DAMPER

DAMPER

DAMPER
