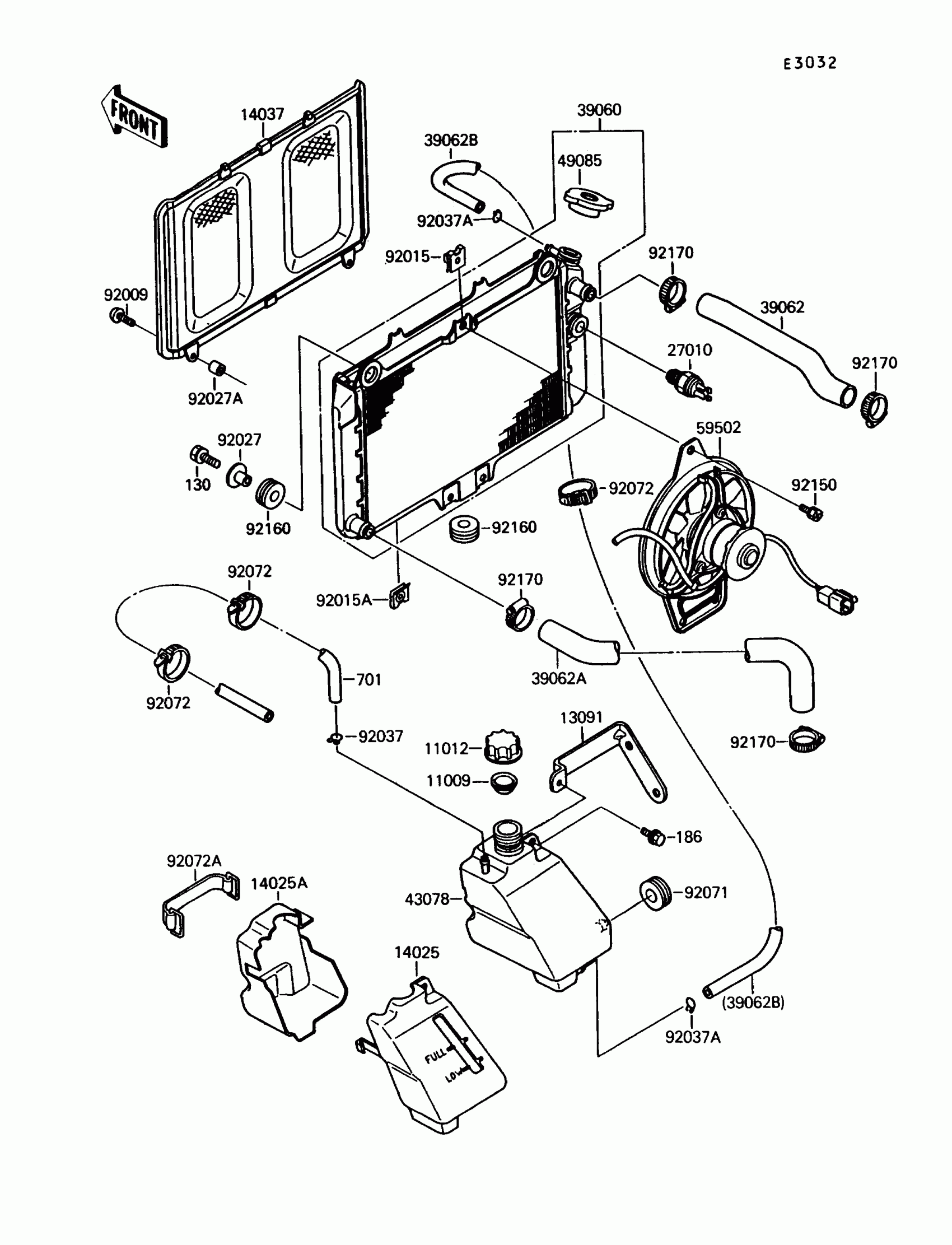

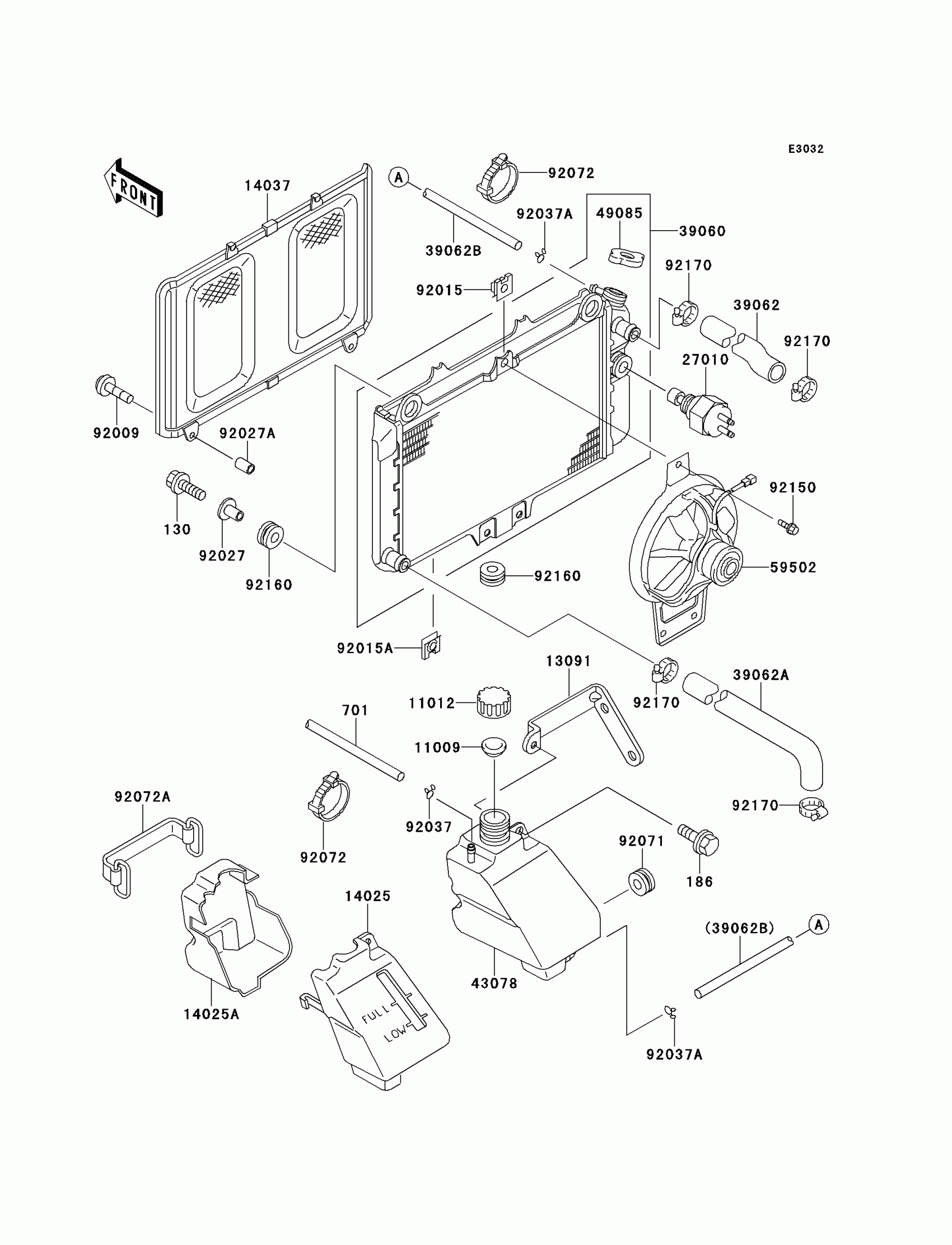

Kawasaki Mojave 250 Radiator Diagram
#
Description
Price
130
BOLT-FLANGED,8X25,BLACK
130J0825
$4.15
186
BOLT-UPSET-WP
186J0618
$3.84
701
TUBE-PVC
701Q05750
Unavailable
11009
GASKET,RESERVOIR TANK CAP
11009-1145
$1.42
11012
CAP
11012-1084
$1.72
13091
HOLDER,RESERVOIR
13091-1435
$13.06
14025
COVER,RESERVOIR
14025-1991
$36.67
14025A
COVER,RESERVOIR
14025-1992
$36.67
14037
SCREEN
14037-1083
$101.49
27010
SWITCH,FAN
27010-1317
$130.42
39060
RADIATOR
39060-1071
$629.98
39062
HOSE-COOLING,HEAD-RADIATOR
39062-1191
$34.18
39062A
HOSE-COOLING,RADIATOR-PUMP
39062-1192
$54.39
39062B
HOSE-COOLING,5.5X10.5X550
39062-1208
$37.82
43078
RESERVOIR,TANK
43078-1061
Unavailable
49085
CAP-ASSY-PRESSURE
49085-1005
$37.42
59502
FAN-ASSY
59502-1065
$740.94
92009
SCREW,TAPPING,6X20
92009-1422
$4.60
92015
NUT
92015-1487
$4.80
92015A
NUT,6MM
92015-1758
$6.88
92027
COLLAR,FUEL TANK FITT
92027-1134
$10.28
92027A
COLLAR 6.8X10X10.5
92027-120
$5.00
92037
CLAMP,TUBE
92037-010
$3.92
92037A
CLAMP,TUBE
92037-147
$7.34
92071
GROMMET
92071-1115
$5.46
92072
BAND,L=149
92072-031
$5.00
92072A
BAND,L=82
92072-053
$12.35
92150
BOLT,6X12
92150-1186
$3.37
92160
DAMPER
92160-1007
$5.52
92170
CLAMP,COOLING HOSE
92170-1033
$15.16
