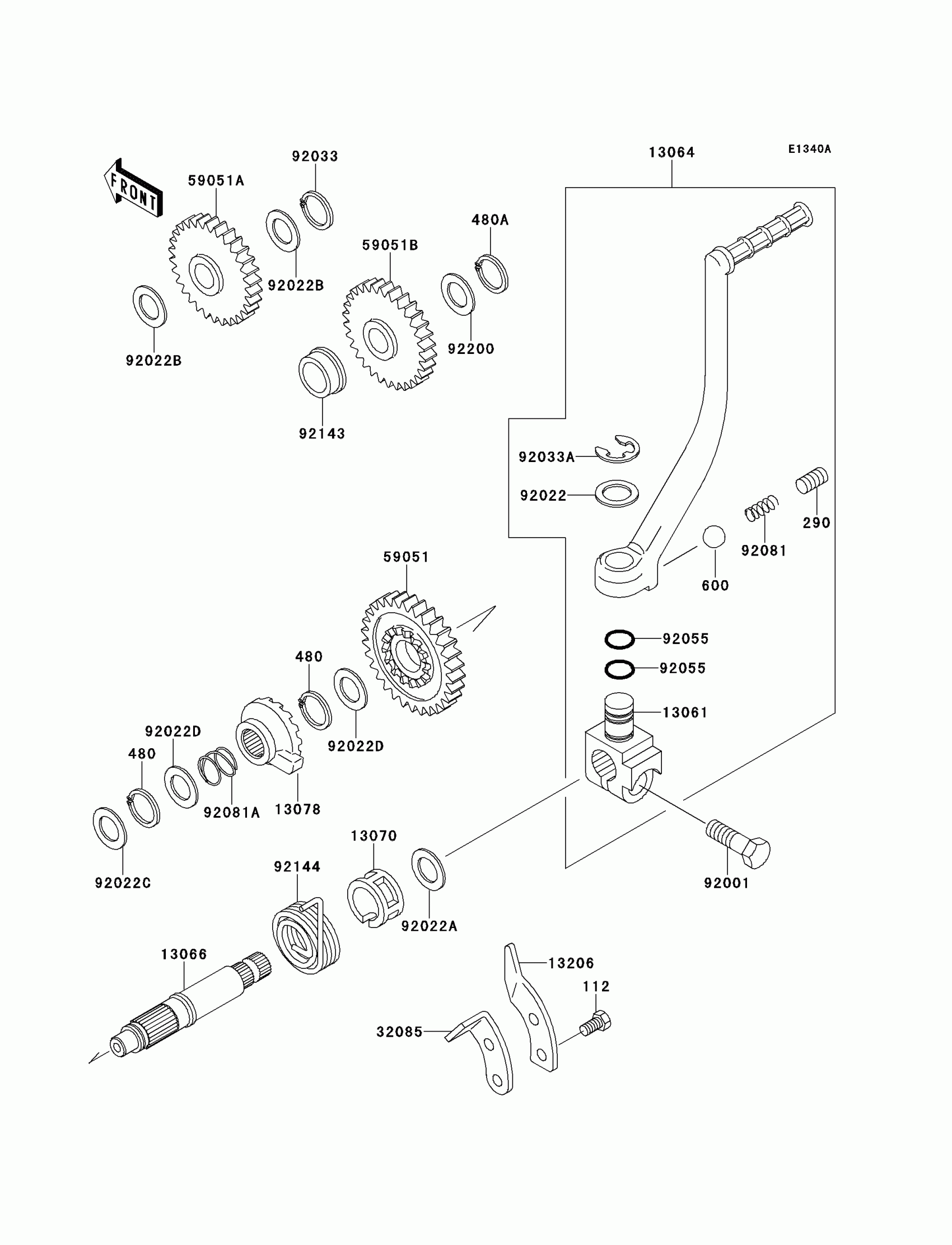

Kawasaki Mojave 250 Kickstarter Mechanism(SF250A026492-) Diagram

Description

Price

112

BOLT-UPSET

112G0618

$1.01

290

SCREW-SET-SOCKET,8X8

290Q0808

$4.78

480

CIRCLIP-TYPE-C,16MM

480J1600

$4.31

480A

CIRCLIP-TYPE-C,19MM

480J1900

$1.28

600

BALL-STEEL,1/4

600A0800

$0.62

13061

BOSS,KICK PEDAL

13061-1189

$82.08

13064

LEVER-ASSY-KICK

13064-1127

$130.41

13066

SHAFT-KICK

13066-1062

$115.72

13070

GUIDE,KICK SPRING

13070-011

$9.82

13078

RATCHET

13078-1053

$77.78

13206

GUIDE-KICK

13206-1056

$9.72

32085

STOPPER

32085-1237

$6.64

59051

GEAR-SPUR,KICKSTARTER,30T

59051-1328

$150.24

59051A

GEAR-SPUR,REVERSE SHAFT,21T

59051-1329

$79.18

59051B

GEAR-SPUR,KICKSTARTER IDLE

59051-1349

$153.02

92001

BOLT,8X28

92001-1042

$6.69

92022

WASHER,15.2X20X1

92022-1019

$5.23

92022A

WASHER,18.5X23X1.2

92022-118

$4.69

92022B

WASHER,17.3X22X0.5

92022-1799

$3.92

92022C

WASHER,12.3X20X0.5

92022-269

$1.25

92022D

WASHER,16.8X22X0.5

92022-315

$6.22

92033

RING-SNAP

92033-032

$4.96

92033A

RING-SNAP,10MM

92033-1166

$3.89

92055

RING-O,10X1.5

92055-061

$4.78

92081

SPRING,KICK PEDAL

92081-020

$4.26

92081A

SPRING,RATCHET

92081-122

$8.79

92143

COLLAR

92143-1957

$20.77

92144

SPRING,KICKSTARTER

92144-1001

$27.45

92200

WASHER,19.3X27X0.5

92200-1367

$4.90
