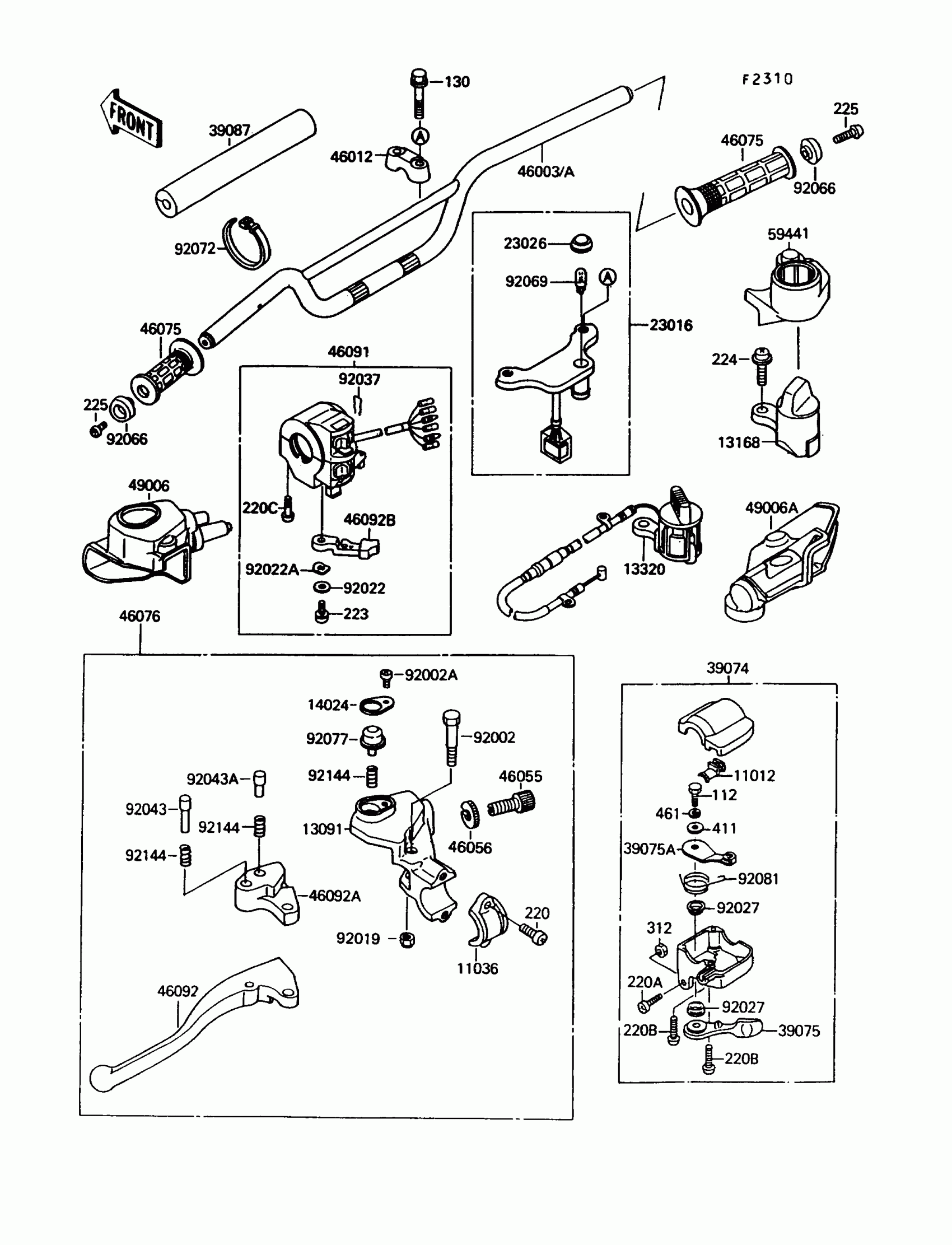

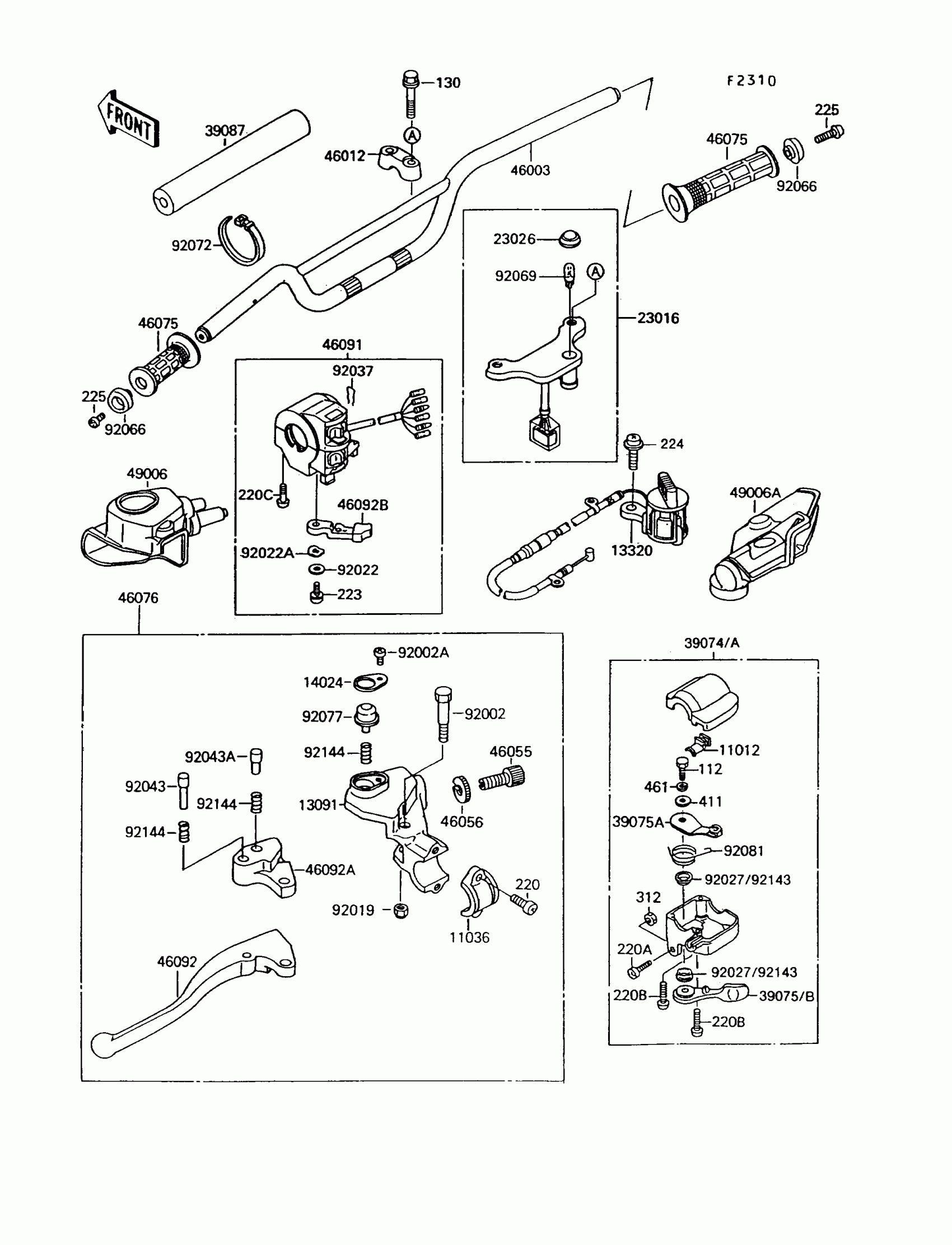

Kawasaki Mojave 250 Handlebar Diagram
#
11012
CAP
11012-1425
Unavailable
11036
BRACKET-A,LEVER HOLDER
11036-1297
Unavailable
13091
HOLDER,LEVER
13091-1456
$46.96
13320
LEVER-ASSY,REVERSE
13320-1006
$136.06
14024
COVER,PARKING LEVER
14024-1351
$9.95
23016
LAMP-ASSY,REVERSE
23016-1105
$76.94
23026
LENS,PILOT,RED
23026-1105
$9.41
39074A
LEVER-ASSY-THROTTLE
39074-1055
$79.09
39075A
LEVER-THROTTLE,ARM
39075-1054
$11.51
39075B
LEVER-THROTTLE
39075-1059
$33.25
39087
PAD-HANDLE
39087-1051
$18.46
46003
HANDLE,L.GREEN
46003-1369-CC
$48.91
46012
HOLDER-HANDLE
46012-1168
$16.33
46055
SCREW,CABLE ADJUST,8MM
46055-009
$19.07
46056
NUT,CABLE ADJUST
46056-006
$8.94
46075
GRIP
46075-1056
$25.83
46076
LEVER-ASSY-GRIP,LH
46076-1137
$119.32
46091
HOUSING-ASSY-CONTROL,LH
46091-1477
$204.19
46092
LEVER-GRIP,CLUTCH
46092-1137
$20.11
46092A
LEVER-GRIP,PARKING
46092-1138
$12.99
46092B
LEVER-GRIP,CHOKE
46092-1139
$9.16
49006
BOOT,LH
49006-1197
$17.80
49006A
BOOT,RH
49006-1198
Unavailable
92002
BOLT,LEVER SET
92002-1833
$7.58
92002A
BOLT,TAPPING
92002-1834
$3.86
92019
NUT,LOCK,6MM
92019-008
$4.26
92022
WASHER,5MM
92022-1837
$3.35
92022A
WASHER,WAVE,5MM
92022-1838
$3.35
92037
CLAMP,CLIP
92037-1836
$5.33
92043
PIN,5X15
92043-1341
$9.64
92043A
PIN,5X11
92043-1342
$9.18
92066
PLUG,HANDLE
92066-1191
Unavailable
92069
BULB,12V 3.4W,T10
92069-1007
$5.00
92072
BAND,L=149
92072-031
$5.00
92077
KNOB,PARKING LEVER
92077-1076
$8.53
92081
SPRING
92081-1685
$79.09
92143
COLLAR
92143-1138
$3.56
92144
SPRING
92144-1058
$7.51
112
BOLT-UPSET
112D0614
$0.49
130
BOLT-FLANGED,8X55
130G0855
Unavailable
220
SCREW-PAN-CROS
220C0514
$1.81
220A
SCREW-PAN-CROS,5X30
220C0530
Unavailable
220B
SCREW-PAN-CROS,5X35
220C0535
$2.06
220C
SCREW-PAN HEAD,6X30
220C0630
$1.89
223
SCREW-PAN-WS-CROS,5X12
223C0512
$4.32
224
SCREW-PAN-WP-CROS,5X20
224B0520
$0.48
225
SCREW-PAN-WSP-CROS,6X20
225C0620
$3.84
312
NUT-HEX,6MM,BLACK
312C0600
$3.57
411
WASHER-PLAIN,6MM
411E0600
$1.31
461
WASHER-SPRING
461L0600
$0.71
