Description

Price

39027

BUMPER-FRONT

39027-1051

$22.63

55020

GUARD,RR

55020-1221

$43.39

55020A

GUARD,FRONT HUB,INNER,LH

55020-1223

$46.15

55020B

GUARD,FRONT HUB,INNER,RH

55020-1224

$46.15

55020C

GUARD,FRONT HUB,OUTER

55020-1263

$30.47

55020D

GUARD,ENGINE,L.GREEN

55020-1458-CC

Unavailable

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92015A

NUT,8MM

92015-1432

$6.57

92022

WASHER,6.5X20X1.6

92022-125

$1.40

92022A

WASHER,7X16X1.2

92022-1344

$3.92

92027

COLLAR,6.8X10X20

92027-1856

$6.27

92075

DAMPER,INNER

92075-1822

$5.24

92075A

DAMPER

92075-1828

$6.45

92075B

DAMPER

92075-1829

$7.69

92075C

DAMPER

92075-1830

$5.59

92075D

DAMPER

92075-1872

$21.11

130

BOLT-FLANGED,6X10

130B0610

$0.48

130A

BOLT-FLANGED,8X20

130G0820

$4.06

130B

BOLT-FLANGED,8X60

130G0860

$1.63

180

BOLT-UPSET-WS,6X16

180G0616

$2.52

220

SCREW-PAN HEAD,6X30

220C0630

$1.89

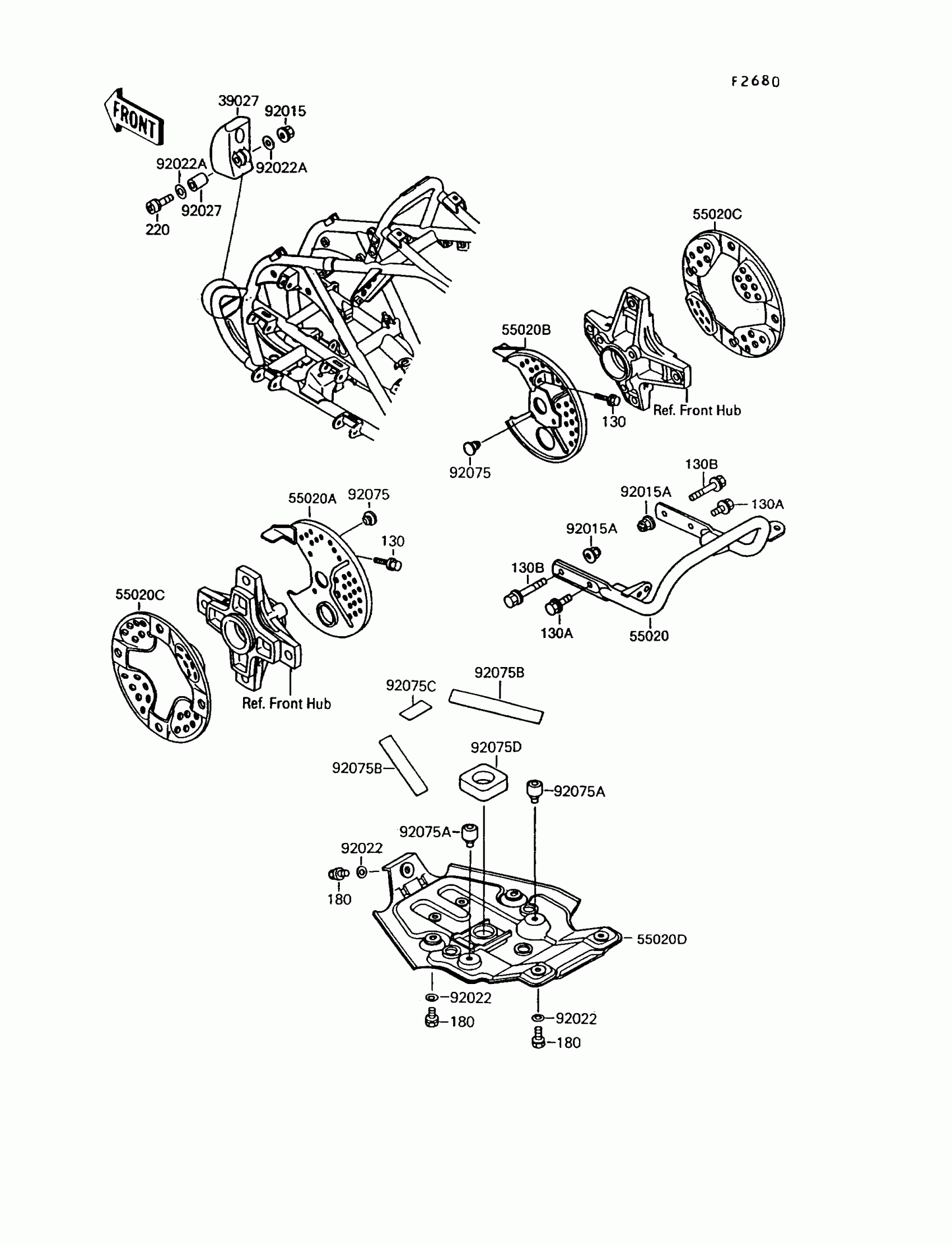

Kawasaki Mojave 250 Guard(s) Diagram

BUMPER-FRONT

GUARD,RR

GUARD,FRONT HUB,INNER,LH

GUARD,FRONT HUB,INNER,RH

GUARD,FRONT HUB,OUTER

GUARD,ENGINE,L.GREEN

NUT,FLANGED,6MM,BLACK

NUT,8MM

WASHER,6.5X20X1.6

WASHER,7X16X1.2

COLLAR,6.8X10X20

DAMPER,INNER

DAMPER

DAMPER

DAMPER

DAMPER

BOLT-FLANGED,6X10

BOLT-FLANGED,8X20

BOLT-FLANGED,8X60

BOLT-UPSET-WS,6X16

SCREW-PAN HEAD,6X30
