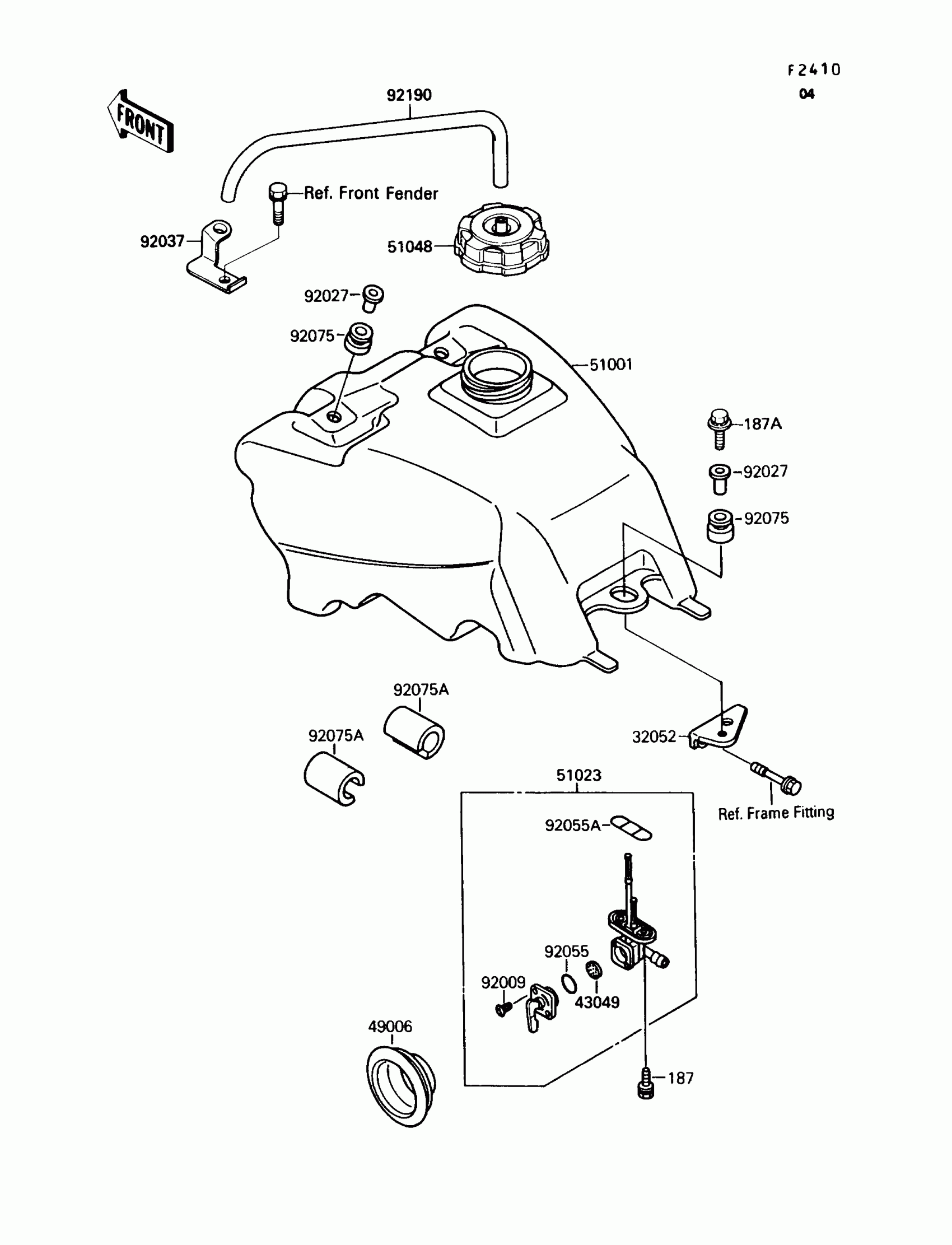

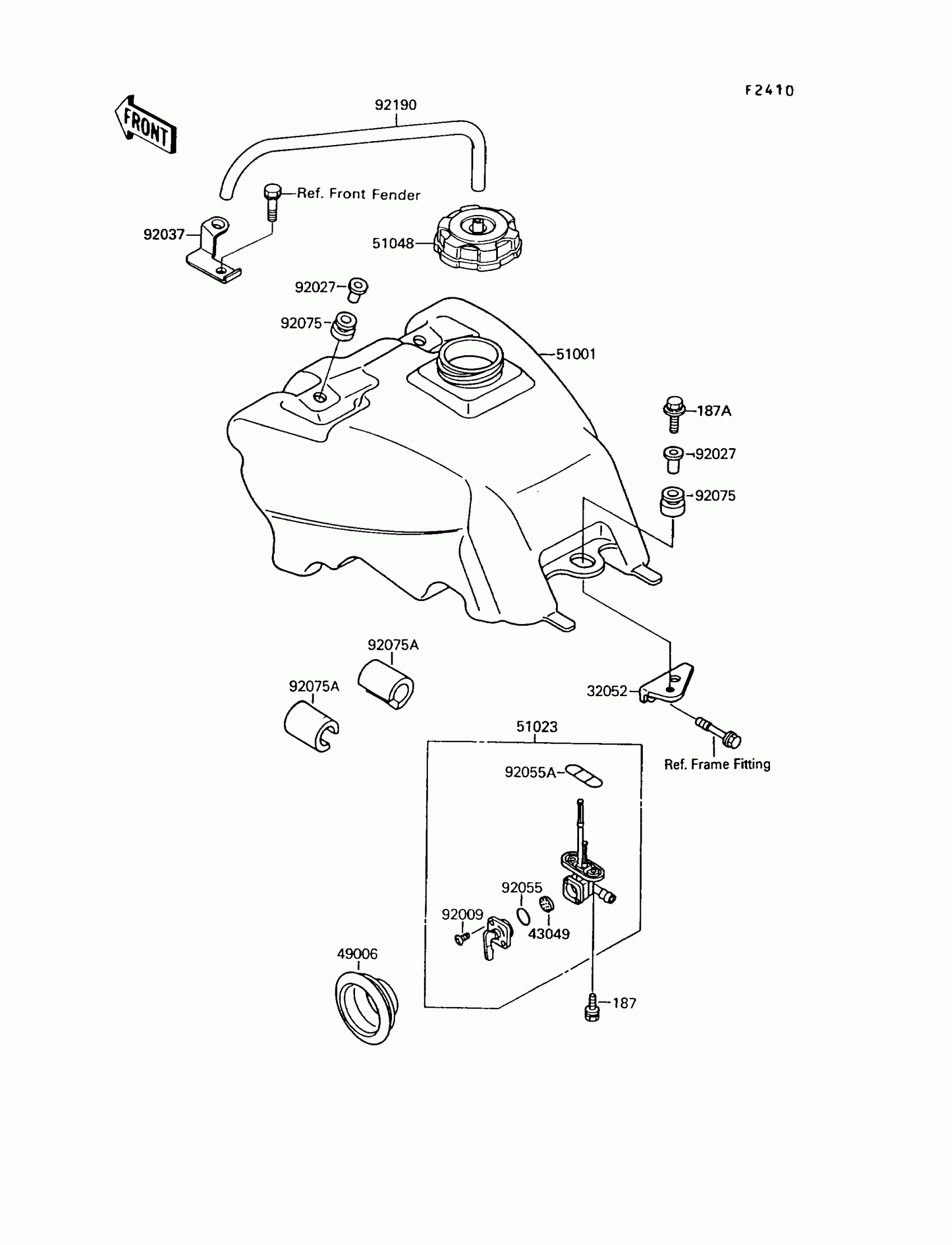

Kawasaki Mojave 250 Fuel Tank Diagram

Description

Price

32052

BRACKET-TANK

32052-1232

$12.04

43049

PACKING,FUEL TAP LEVER

43049-1017

$7.26

49006

BOOT

49006-1192

$22.10

51001

TANK-COMP-FUEL

51001-1244

$200.45

51023

TAP-ASSY,FUEL

51023-1146

$107.88

51048

CAP-ASSY-TANK,FUEL

51048-1090

$63.66

92009

SCREW,3X5

92009-1123

$0.59

92027

COLLAR,L=16.1

92027-1847

$6.22

92037

CLAMP,TUBE

92037-1961

$9.64

92055

RING-O,FUEL TAP LEVER

92055-1111

$5.00

92055A

RING-O,FUEL TAP PACKING

92055-1348

$7.34

92075

DAMPER

92075-1787

$6.57

92075A

DAMPER,FUEL TANK

92075-1835

$15.94

92190

TUBE,4.7X9.5X350

92190-1022

$12.02

187

BOLT 6X14

187B0614

$0.88

187A

BOLT-UPSET-WSP

187D0630

Unavailable
