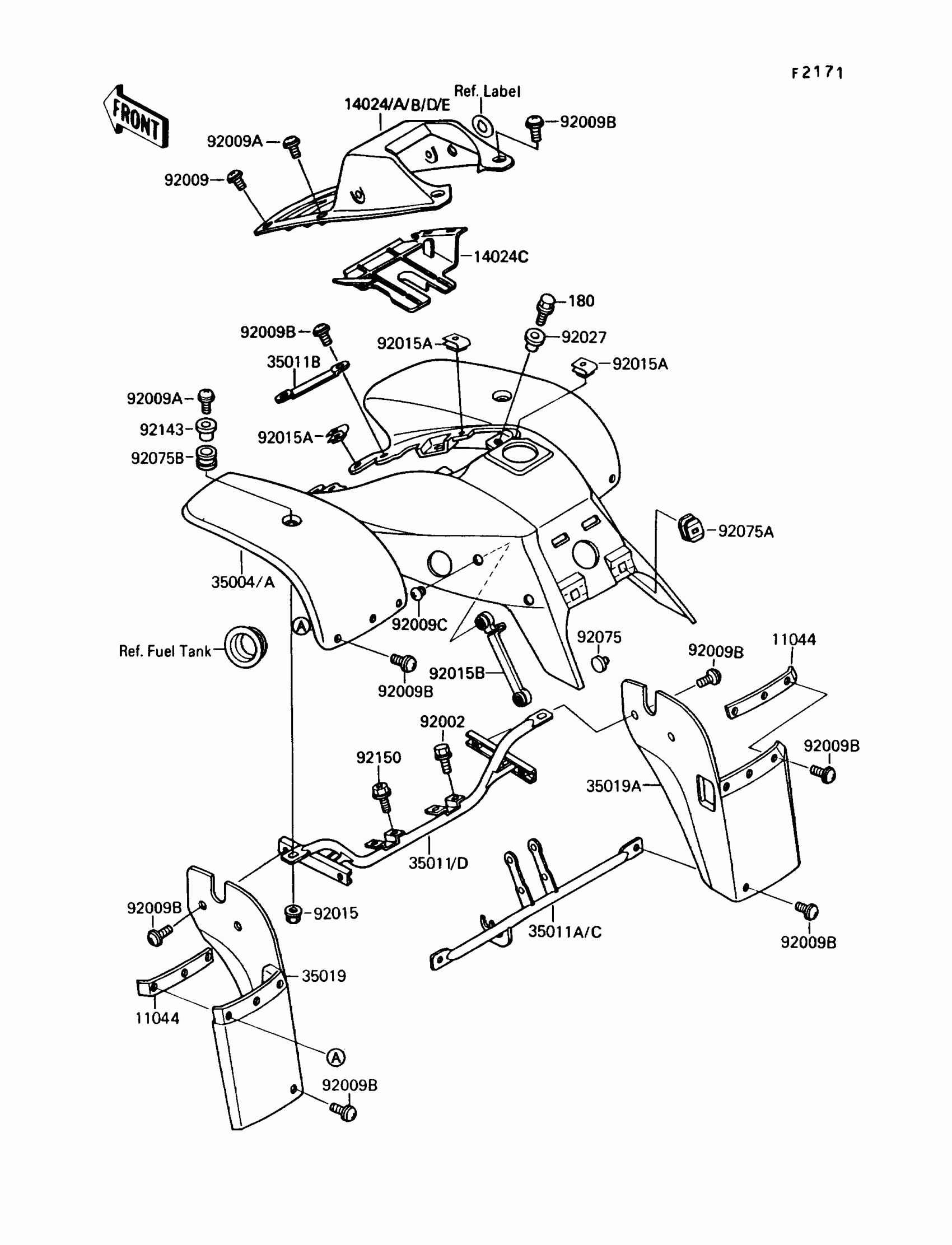

Kawasaki Mojave 250 Front Fender Diagram
#
Description
Price
11044
BRACKET,FLAP
11044-1934
$11.40
14024
COVER,FRONT FENDER,J.S.VIOLET
14024-1268-RE
Unavailable
14024C
COVER,FRONT FENDER,INNER
14024-1297
$11.30
14024D
COVER,FRONT FENDER,J.S.VIOLET
14024-1442-RE
Unavailable
35004
FENDER-FRONT,P.WHITE
35004-1192-6F
$192.09
35011B
STAY,FRONT FENDER
35011-1324
$12.14
35011C
STAY,FLAP,L.GREEN
35011-1637-CC
$32.53
35011D
STAY,FRONT FENDER,L.GREEN
35011-1642-CC
$43.93
35019
FLAP,LH
35019-1172
$26.21
35019A
FLAP,RH
35019-1173
$26.21
92002
BOLT
92002-1626
$4.44
92009
SCREW,6X18,BLACK
92009-1181
$2.80
92009A
SCREW,6X22,BLACK
92009-1256
$2.78
92009B
SCREW,6X14
92009-1288
$3.92
92009C
SCREW,16MM
92009-1508
Unavailable
92015
NUT,FLANGED,6MM,BLACK
92015-1237
$5.52
92015A
NUT,CLAMP,6MM
92015-1678
$5.52
92015B
NUT
92015-1701
$12.48
92027
COLLAR,L=5.6
92027-1933
$5.78
92027
COLLAR,L=5.6
92027-1933
$5.78
92075
DAMPER,DUAL SEAT
92075-023
$4.92
92075A
DAMPER
92075-1834
$9.18
92075B
DAMPER,CASE
92075-222
$7.34
92143
COLLAR,L=9.6
92143-1016
$6.22
92150
BOLT,FLANGED,6X16
92150-1358
$4.39
180
BOLT-UPSET-WS,6X35
180D0635
Unavailable
