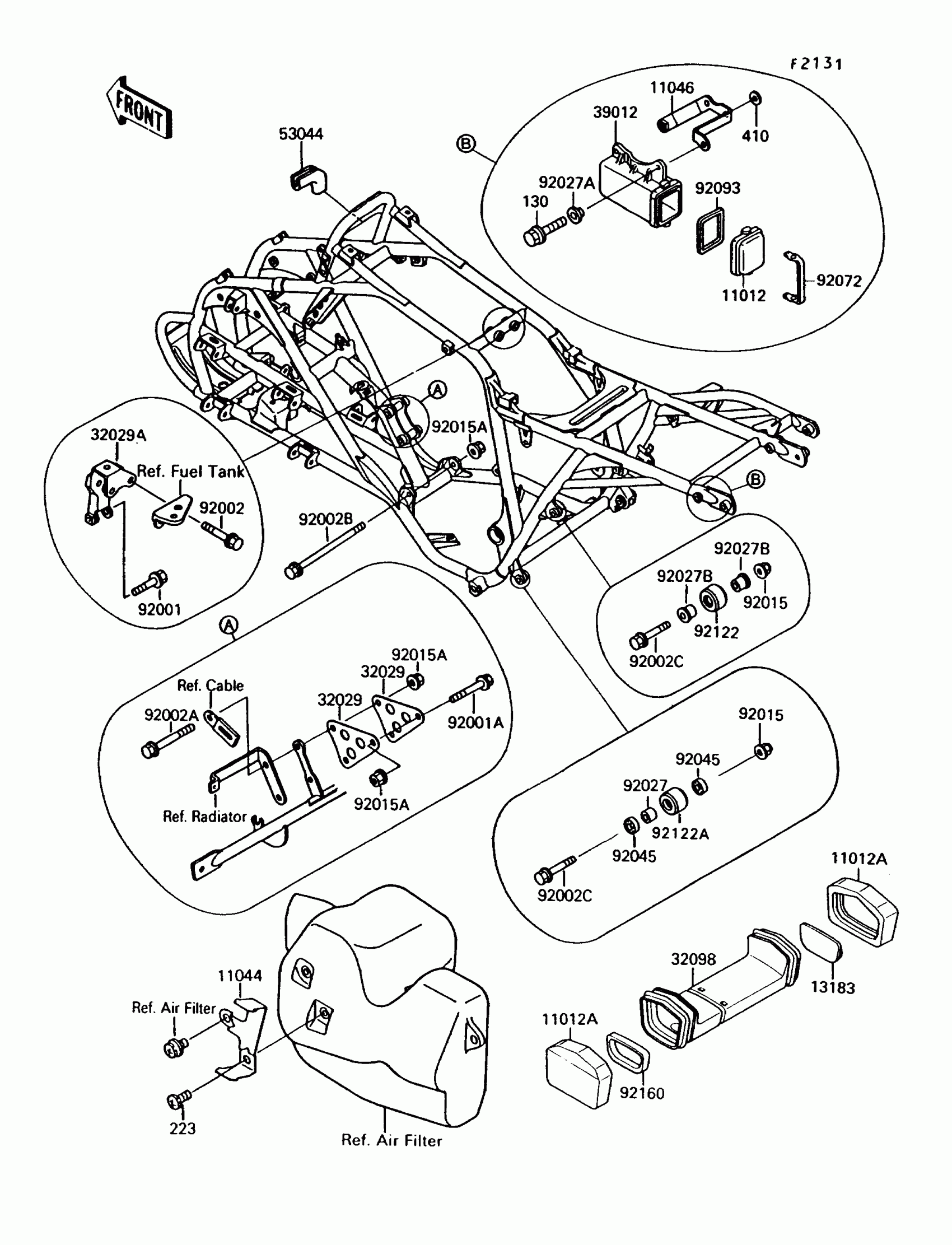

Kawasaki Mojave 250 Frame Fitting Diagram
#
Description
Price
11012
CAP,TOOL CASE
11012-1606
$11.27
11012A
CAP,TOOL CASE
11012-1622
$5.43
11044
BRACKET,IGNITER
11044-1932
$14.96
11046
BRACKET,STORAGE CASE
11046-1911
$26.08
13183
PLATE,TOOL CASE
13183-1220
$9.64
32029
BRACKET-ENGINE,FR
32029-1474
$15.60
32029A
BRACKET-ENGINE,TOP
32029-1475
$36.78
32098
CASE-TOOL
32098-1090
$41.44
39012
CASE-STORAGE
39012-1055
$30.56
53044
TRIM,L=50
53044-1185
$5.29
92001
BOLT,FLANGED,8X45
92001-1579
$5.59
92001A
BOLT,10X75
92001-4021
$8.86
92002
BOLT,8X50
92002-1182
$8.98
92002A
BOLT,FLANGED,10X80
92002-1764
$7.45
92002B
BOLT,FLANGED,10X145
92002-1765
$11.37
92002C
BOLT,FLANGED,8X52
92002-1857
$4.99
92015
NUT,8MM
92015-1432
$6.57
92015A
NUT,LOCK,10MM
92015-1597
$5.52
92027
COLLAR
92027-1081
$9.59
92027A
COLLAR
92027-1354
$5.00
92027B
COLLAR,CHAIN GUIDE
92027-1383
$8.60
92045
BEARING-BALL,608DMC3 AV2S
92045-1227
Unavailable
92072
BAND,TOOL CASE CAP
92072-1226
$6.22
92093
SEAL,TOOL CASE CAP
92093-1247
$5.29
92122
ROLLER,CHAIN GUIDE
92122-1021
$13.38
92122A
ROLLER,CHAIN GUIDE
92122-1102
$80.04
92160
DAMPER,TOOL CASE
92160-1010
$7.65
130
BOLT-FLANGED,8X20
130G0820
$4.06
223
SCREW-PAN-WS-CROS
223C0610
$4.12
410
WASHER PLAIN 8MM
410B0800
$0.93
