Description

Price

32160

FRAME-COMP,L.GREEN

32160-1279-CC

Unavailable

39111

ROD-TIE

39111-1069

$36.47

39112

RODEND-TIE

39112-1063

$92.76

39112A

RODEND-TIE

39112-1064

$92.76

39114

SHAFT-COMP-STRG,L.GREEN

39114-1073-CC

Unavailable

59266

JOINT-BALL

59266-1066

Unavailable

92015

NUT,LOCK,10MM

92015-1460

$6.52

92015A

NUT,LOCK,10MM

92015-1494

$6.22

92015B

NUT,LOCK,FLANGED,10MM

92015-1717

$9.91

92022

WASHER,10.5X20X1

92022-239

$3.92

92027

COLLAR,10X21.3X7

92027-1817

$15.14

92037

CLAMP,STEERING SHAFT

92037-1839

$69.53

92049

SEAL-OIL,SR7 25 34 7.8 NS

92049-1278

$7.29

92066

PLUG

92066-1220

$4.96

115

BOLT-SMALL-UPSET

115H0830

Unavailable

120

BOLT,8X50

120P0850

$4.89

183

BOLT-UPSET-WS-SMALL

183G0822

$5.21

317

NUT-HEX-SMALL,8MM

317H0800

$1.63

318

NUT-HEX-SMALL,8MM

318B0800

$0.59

320

NUT-CASTLE

320H1000

$7.88

550

PIN COTTER 2.0X15

550D2015

$1.04

550A

PIN-COTTER,2.5X18

550D2518

$0.59

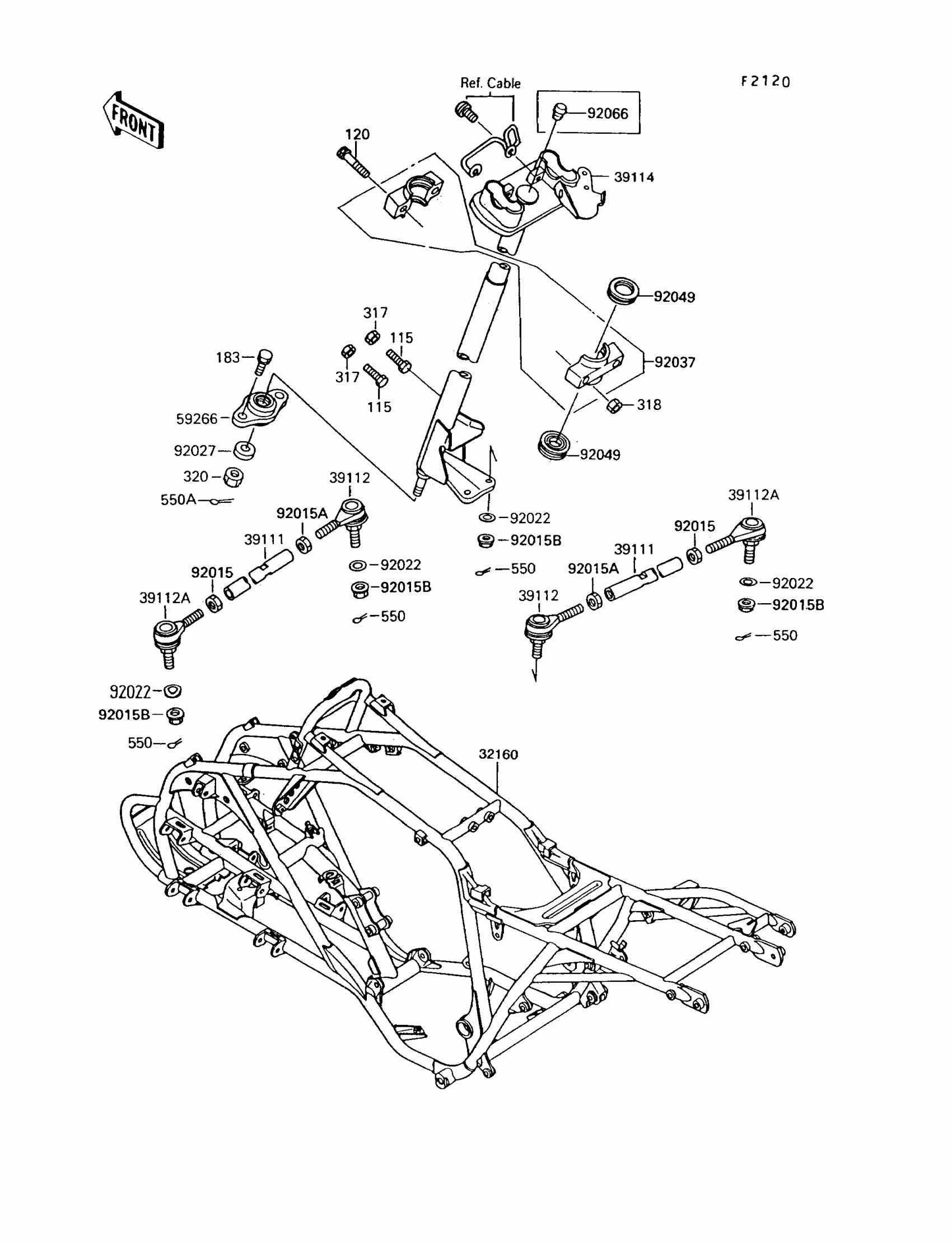

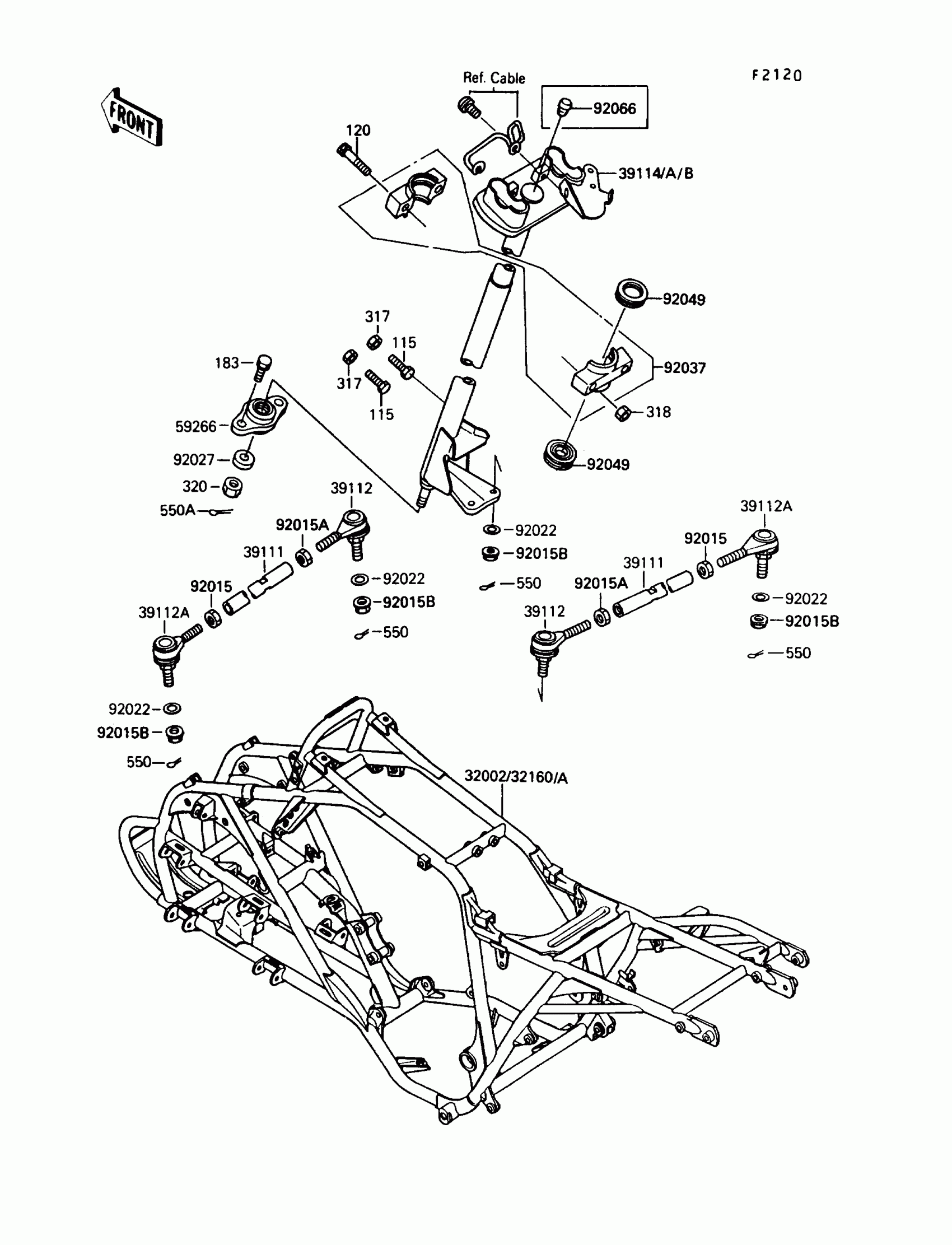

Kawasaki Mojave 250 Frame Diagram

FRAME-COMP,L.GREEN

ROD-TIE

RODEND-TIE

RODEND-TIE

SHAFT-COMP-STRG,L.GREEN

JOINT-BALL

NUT,LOCK,10MM

NUT,LOCK,10MM

NUT,LOCK,FLANGED,10MM

WASHER,10.5X20X1

COLLAR,10X21.3X7

CLAMP,STEERING SHAFT

SEAL-OIL,SR7 25 34 7.8 NS

PLUG

BOLT-SMALL-UPSET

BOLT,8X50

BOLT-UPSET-WS-SMALL

NUT-HEX-SMALL,8MM

NUT-HEX-SMALL,8MM

NUT-CASTLE

PIN COTTER 2.0X15

PIN-COTTER,2.5X18
