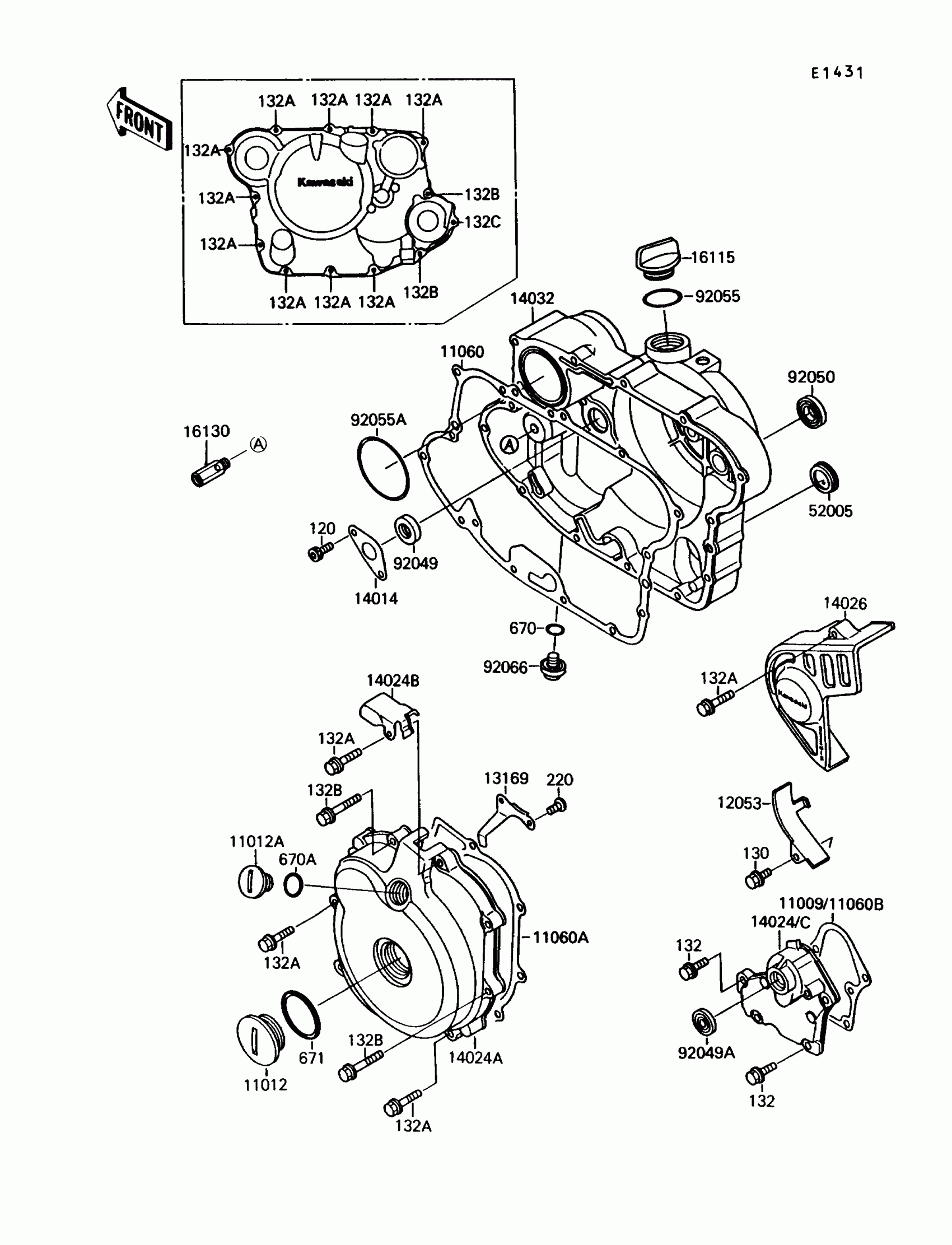

Kawasaki Mojave 250 Engine Cover Diagram
#
Description
Price
11012
CAP
11012-1362
$8.79
11012A
CAP,TOP MARK
11012-1363
$6.51
11060
GASKET,CLUTCH COVER
11060-1238
$32.81
11060A
GASKET,GENERATOR
11060-1239
$20.97
11060B
GASKET,REVERSE COVER
11060-1240
$7.90
12053
GUIDE-CHAIN
12053-1196
$9.55
13169
PLATE,GENERATOR LEAD
13169-1692
$7.58
14014
PLATE-POSITION
14014-1079
$5.46
14024A
COVER,GENERATOR
14024-1270
$166.32
14024B
COVER
14024-1363
$7.89
14024C
COVER,REVERSE
14024-1860
$75.54
14026
COVER-CHAIN
14026-1125
Unavailable
14032
COVER-CLUTCH
14032-1251
Unavailable
16115
CAP-OIL FILLER
16115-1009
$14.30
16130
VALVE-ASSY-RELIEF
16130-1001
Unavailable
52005
GAUGE,OIL LEVEL
52005-1009
$18.40
92049
SEAL-OIL
92049-1191
$24.41
92049A
SEAL-OIL,TB12205.5
92049-1271
$9.28
92050
SEAL-OIL
92050-078
$8.58
92055
RING-O,31.5X2.6
92055-049
$4.31
92055A
RING-O,62.6X66X3.1
92055-1221
$8.86
92066
PLUG,DRAIN
92066-1156
$9.20
120
BOLT-SOCKET,6X10
120P0610
$1.60
130
BOLT-FLANGED
130J0610
$2.33
132
BOLT-FLANGED-SMALL,6X20
132J0620
$3.64
132A
BOLT-FLANGED-SMALL,6X30
132J0630
$3.84
132B
BOLT-FLANGED-SMALL,6X40
132J0640
$4.44
132C
BOLT-FLANGED-SMALL
132J0695
Unavailable
220
SCREW-PAN-CROS
220B0512
$0.47
670
O RING,11MM
670B2011
$1.28
670A
O RING,18MM
670B2018
$1.42
671
O RING,40MM
671B2540
$6.22
