Description

Price

11005

CYLINDER-ENGINE

11005-1387

$583.25

11007

LINER-CYLINDER

11007-1070

$145.44

11060

GASKET,CYLINDER BASE

11060-1125

$11.03

13001

PISTON-ENGINE,STD

13001-1280

$128.42

13002

PIN-PISTON,12X18X57.2

13002-1023

$26.26

13008

RING-SET-PISTON,STD

13008-1066

$72.04

13024

RING-SET-PISTON LL,O/S 1.00

13024-1068

$84.94

13025

RING-SET-PISTON L,O/S 0.50

13025-1065

Unavailable

13027

PISTON-ENGINE LL,O/S 1.00

13027-1152

$137.62

13029

PISTON-ENGINE L,O/S 0.50

13029-1175

Unavailable

39062

HOSE-COOLING,PUMP-CYLINDER

39062-1193

$26.16

92005

FITTING

92005-1122

$21.09

92015

NUT,CAP,8MM,BLACK

92015-1174

$5.00

92033

RING-SNAP

92033-1182

$4.35

92043

PIN,10.1X12X14

92043-4009

$6.22

92055

RING-O,80.6X2.4

92055-1247

$13.07

92170

CLAMP,COOLING HOSE

92170-1033

$15.16

132

BOLT-FLANGED-SMALL,6X12

132J0612

$1.92

132A

BOLT-FLANGED-SMALL,6X20

132J0620

$3.64

132B

BOLT-FLANGED-SMALL,6X25

132J0625

$2.62

670

O RING,18MM

670B2018

$1.42

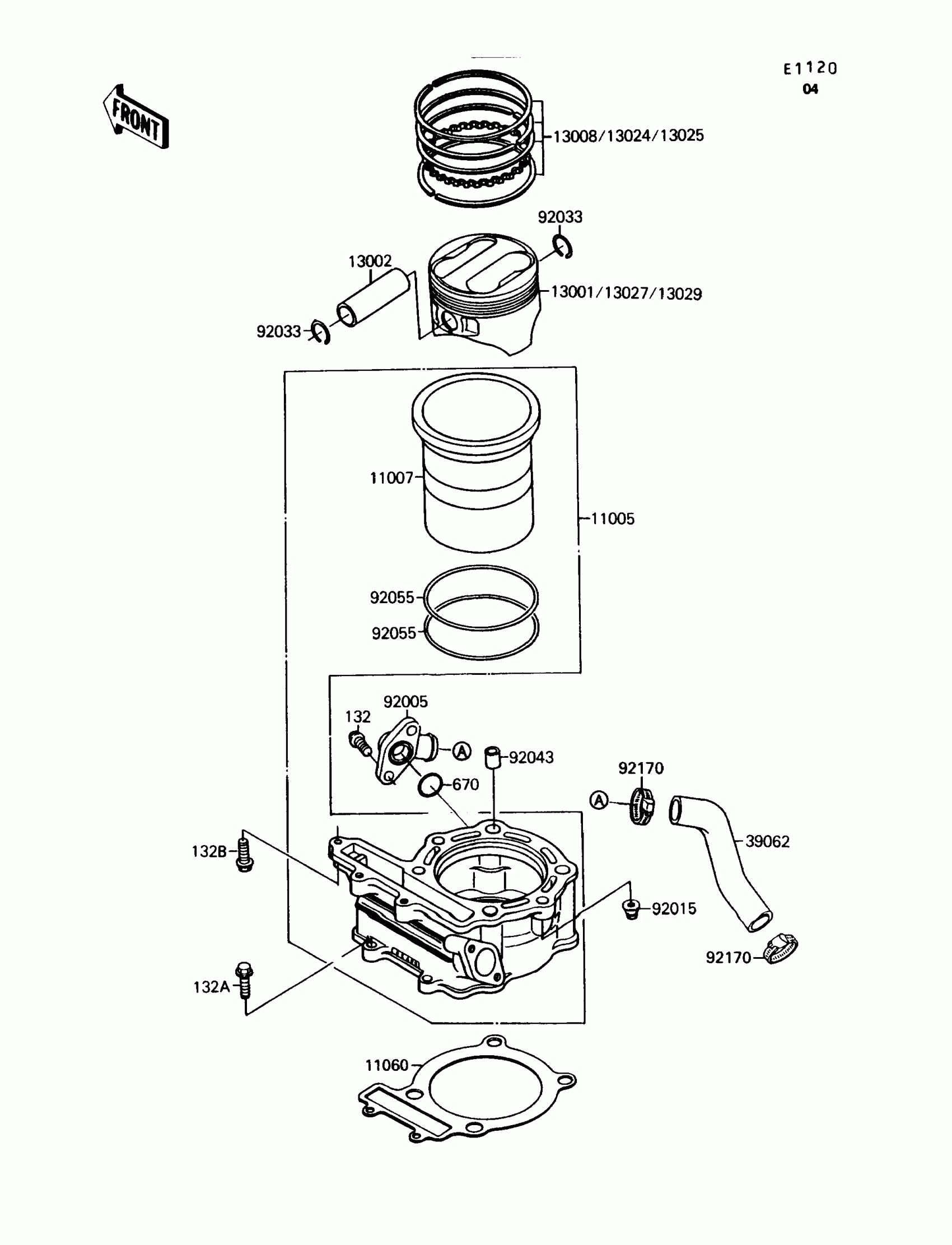

Kawasaki Mojave 250 Cylinder/Piston Diagram
