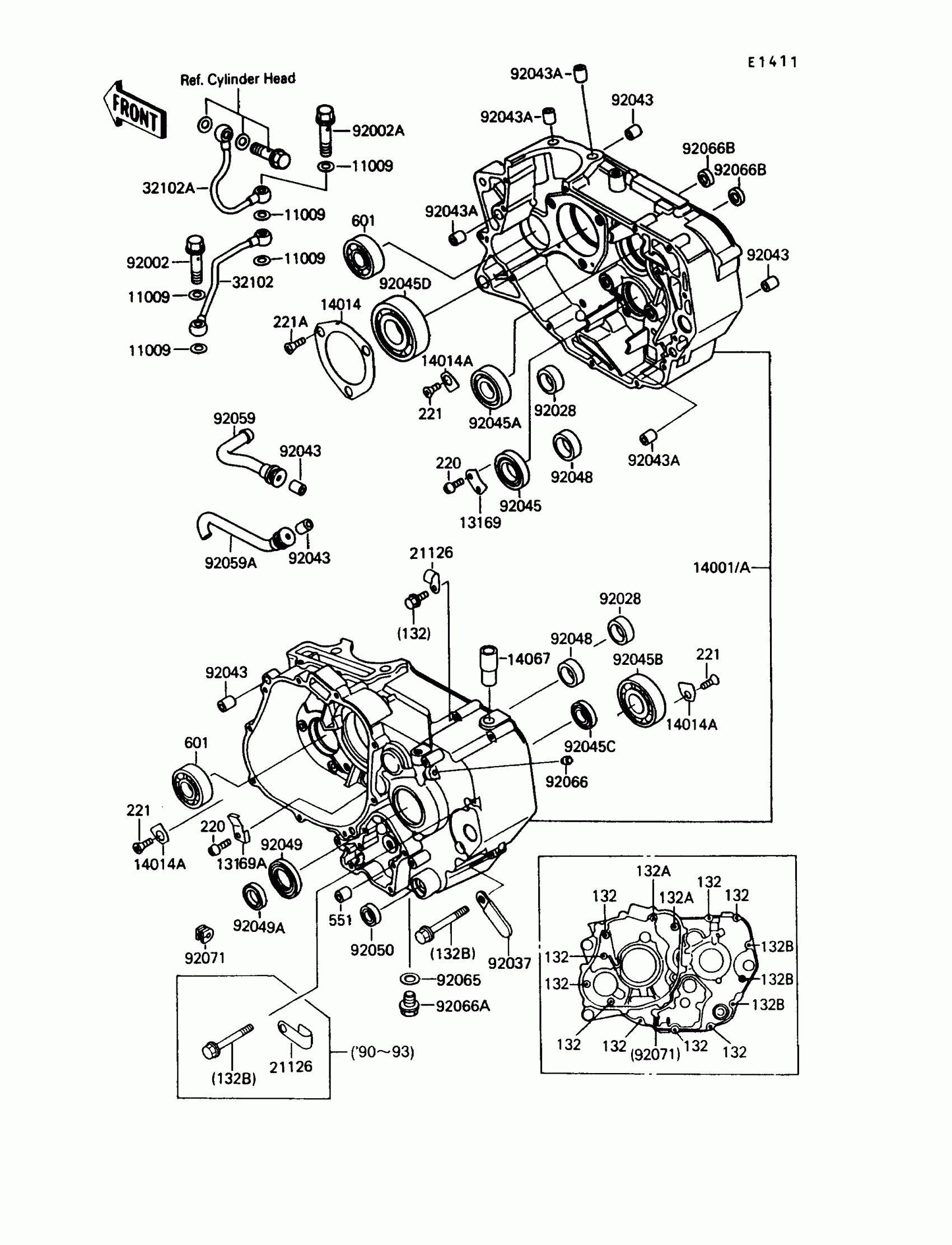

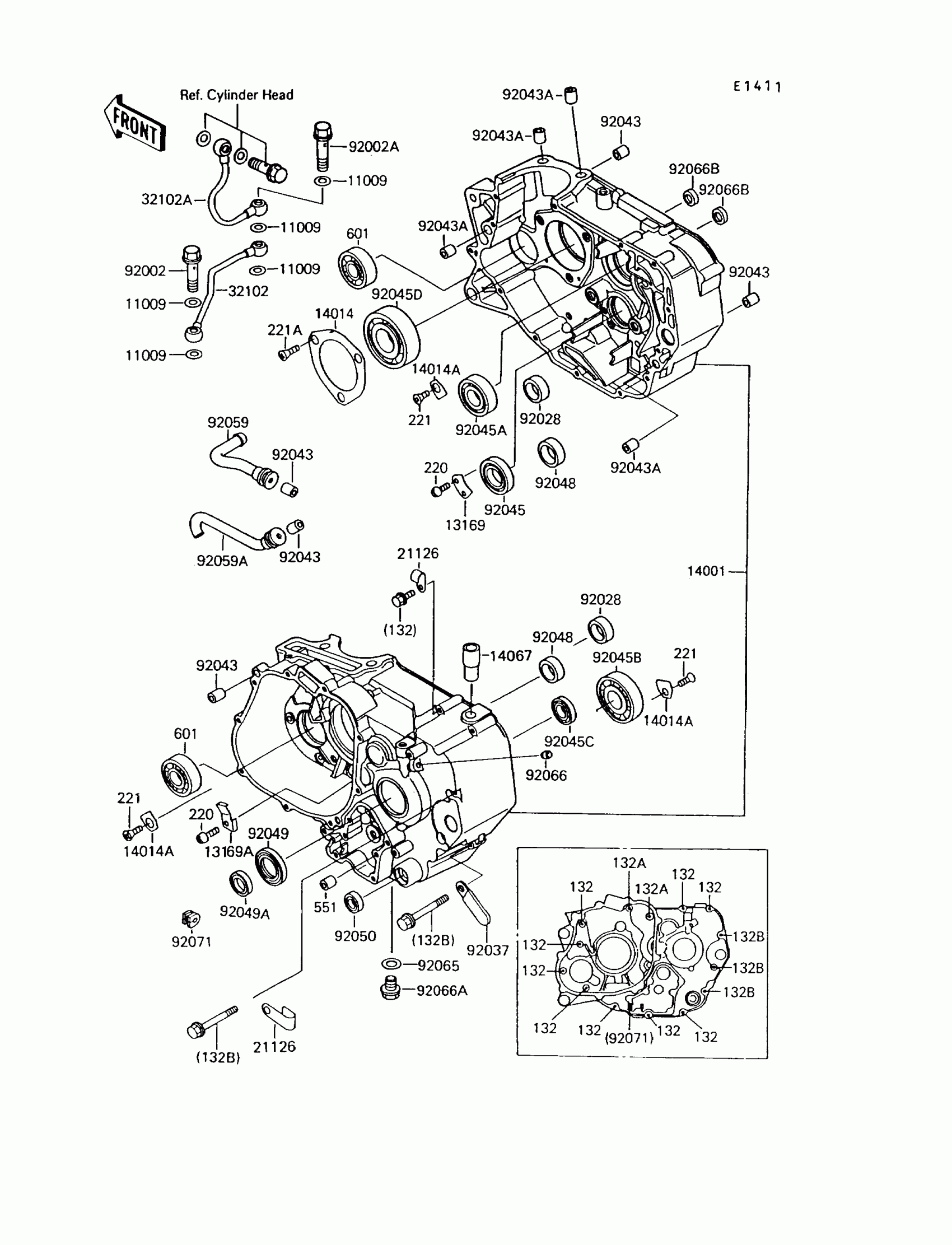

Kawasaki Mojave 250 Crankcase Diagram
#
11009
GASKET,10X14.5X1.5
11009-1105
$6.51
13169
PLATE,GEAR CHANGE DRUM
13169-014
$5.23
13169A
PLATE
13169-1691
$5.18
14001
SET-CRANKCASE
14001-5271
Unavailable
14014
PLATE-POSITION,CRANK BEARING
14014-1004
$11.61
14014A
PLATE-POSITION
14014-1057
$4.69
14067
FITTING,BREATHER
14067-006
$21.09
21126
CLAMP,WIRING HARNESS
21126-008
$4.73
32102
PIPE
32102-1127
$42.77
32102A
PIPE
32102-1187
$64.39
92002
BOLT,BANJO,10X25
92002-1170
$9.51
92002A
BOLT,BANJO,10X36.5
92002-1751
$13.38
92028
BUSHING,23X30X13
92028-132
$38.06
92037
CLAMP,L=45
92037-1539
$5.00
92043
PIN,6.2X8X14
92043-1263
$0.43
92043A
PIN,10.1X12X14
92043-4009
$6.22
92045
BEARING-BALL,#6905
92045-036
$27.88
92045A
BEARING-BALL,TMB204 JR
92045-1041
$32.24
92045B
BEARING-BALL,TM-SX0597LU
92045-1127
$43.34
92045C
BEARING-BALL,6804
92045-1171
$29.86
92045D
BEARING-BALL
92045-1172
$48.87
92048
RACE,26X33X13
92048-1057
$31.78
92049
SEAL-OIL,TC32457
92049-1159
$8.60
92049A
SEAL-OIL,SD20307HS
92049-1261
$9.79
92050
SEAL-OIL
92050-082
$8.58
92059
TUBE
92059-1694
$24.61
92059A
TUBE
92059-1695
$39.96
92065
GASKET,12X22X2
92065-097
$0.74
92066
PLUG,OIL LINE,7.2X8
92066-1012
$6.51
92066A
PLUG,OIL DRAIN,12X15
92066-1174
$6.16
92066B
PLUG
92066-1282
$6.51
92071
GROMMET
92071-1139
$6.38
132
BOLT-FLANGED-SMALL,6X40
132J0640
$4.44
132A
BOLT-FLANGED-SMALL,6X75
132J0675
$4.89
132B
BOLT-FLANGED-SMALL
132J0695
Unavailable
220
SCREW-PAN-CROS,6X14
220B0614
$1.48
221
SCREW-CSK-CROS,6X12
221B0612
$2.06
221A
SCREW-CSK-CROS,6X16
221B0616
$0.59
551
PIN-DOWEL,6X12
551A0612
$0.94
601
BEARING-BALL,#6204C3
601B6204
$13.65
