Description

Price

11043

BRACKET,CLUTCH CABLE

11043-1931

Unavailable

13087

HUB,CLUTCH

13087-1001

$108.45

13088

PLATE-FRICTION

13088-1057

$15.46

13089

PLATE-CLUTCH,T=1.6

13089-013

$13.16

13095

HOUSING-COMP-CLUTCH

13095-1148

Unavailable

13102

RELEASE-COMP-CLUTCH

13102-1064

$64.52

13187

PLATE-CLUTCH OPERATING

13187-1008

Unavailable

46102

ROD,CLUTCH PUSH

46102-1033

$28.64

92001

BOLT,CLUTCH SPRING,6X18

92001-1576

Unavailable

92002

BOLT,FLANGED,6X9.5

92002-1356

$6.22

92022

WASHER,20.5X30X1,STEEL

92022-112

$8.86

92022A

WASHER,6.2X11X1

92022-304

$3.65

92026

SPACER,20.1X30X4

92026-1274

Unavailable

92033

RING-SNAP,18MM

92033-029

$9.82

92045

BEARING-BALL,6001C3ML01

92045-1235

$16.25

92081

SPRING,CLUTCH

92081-083

$8.53

132

BOLT-FLANGED-SMALL,6X12

132J0612

$1.92

670

O RING,9MM

670B1509

$3.65

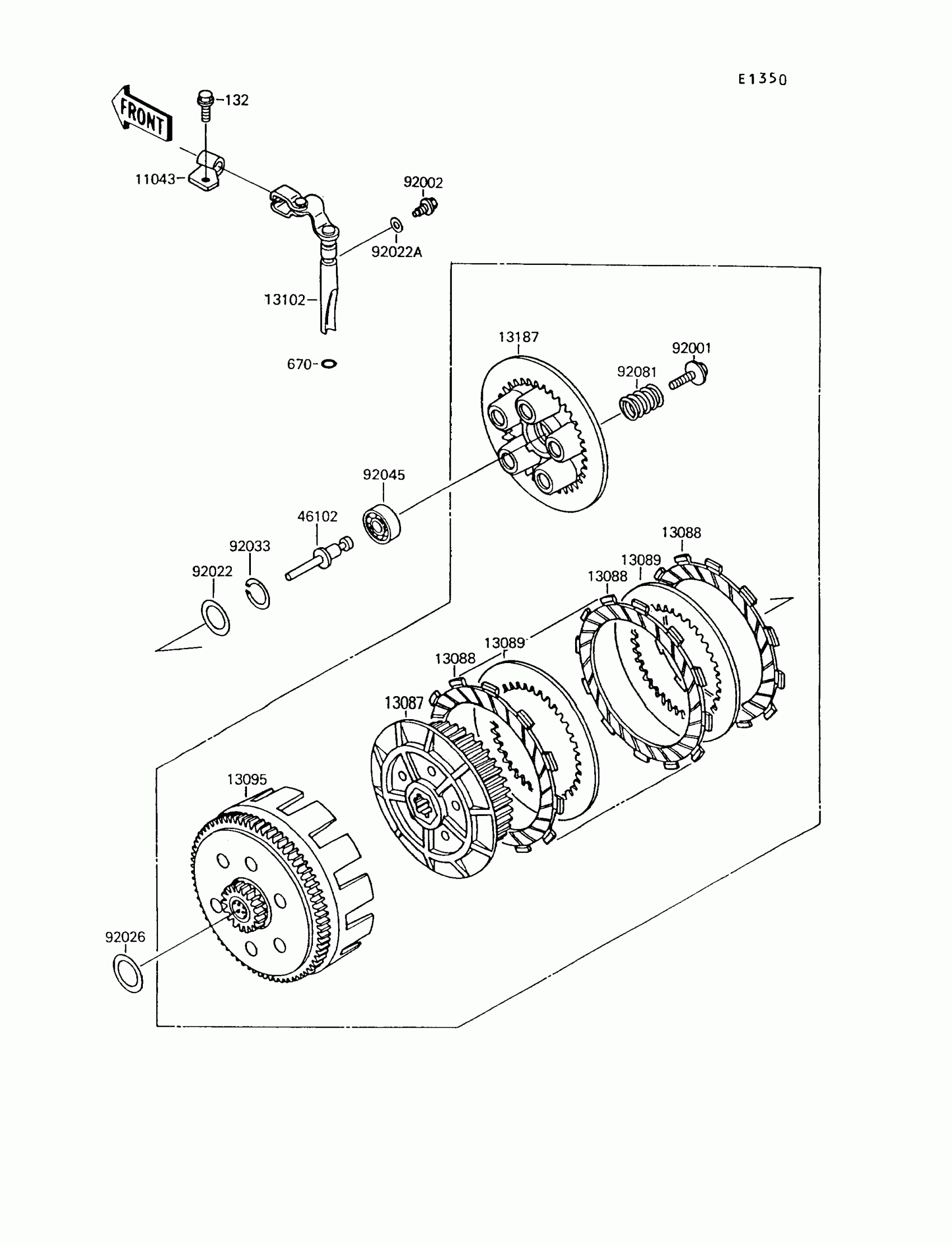

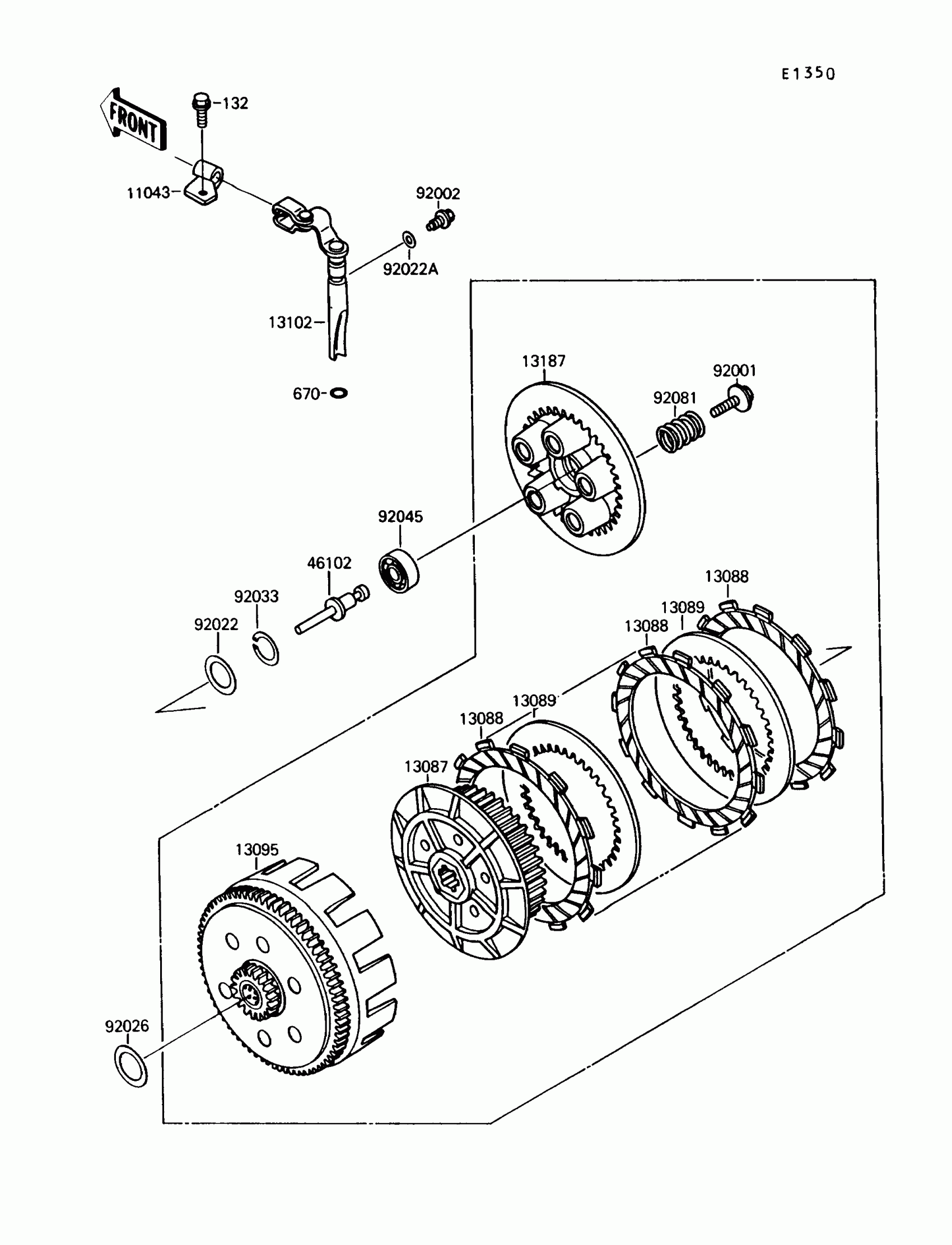

Kawasaki Mojave 250 Clutch Diagram

BRACKET,CLUTCH CABLE

HUB,CLUTCH

PLATE-FRICTION

PLATE-CLUTCH,T=1.6

HOUSING-COMP-CLUTCH

RELEASE-COMP-CLUTCH

PLATE-CLUTCH OPERATING

ROD,CLUTCH PUSH

BOLT,CLUTCH SPRING,6X18

BOLT,FLANGED,6X9.5

WASHER,20.5X30X1,STEEL

WASHER,6.2X11X1

SPACER,20.1X30X4

RING-SNAP,18MM

BEARING-BALL,6001C3ML01

SPRING,CLUTCH

BOLT-FLANGED-SMALL,6X12

O RING,9MM
