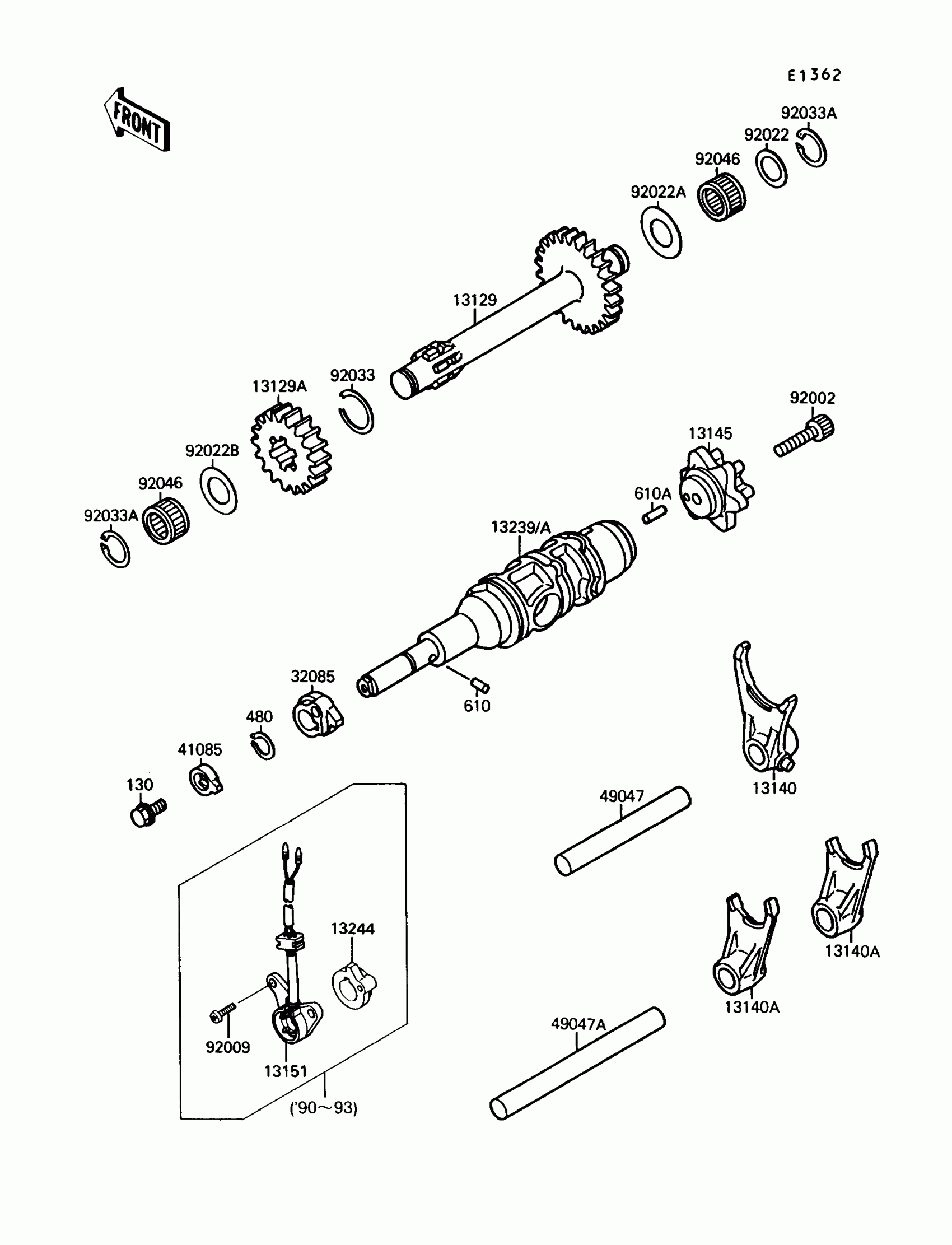

Kawasaki Mojave 250 Change Drum/Shift Fork Diagram

Description

Price

13129

GEAR-REVERSE,SHAFT

13129-1806

$193.57

13129A

GEAR-REVERSE,18T

13129-1807

$76.24

13140

FORK-SHIFT

13140-1134

$109.79

13140A

FORK-SHIFT

13140-1135

$109.79

13145

CAM-CHANGE DRUM

13145-1061

$60.19

13151

SWITCH-COMP

13151-1074

$95.87

13239A

DRUM-ASSY-CHANGE

13239-1161

$195.41

13244

STOPPER-ASSY,REVERSE

13244-1053

Unavailable

41085

INDICATOR,CHANGE DRUM

41085-1004

$23.01

49047

ROD-SHIFT,L=93.7

49047-1003

Unavailable

49047A

ROD-SHIFT

49047-1062

$29.43

92002

BOLT,SOCKET,6X25

92002-1696

$1.94

92009

SCREW,5X14

92009-1341

$4.18

92022

WASHER,17.3X22X0.5

92022-1799

$3.92

92022A

WASHER,17.3X30X0.5

92022-1805

$5.35

92022B

WASHER,17.3X28X1

92022-255

$8.58

92033

RING-SNAP,20X25.5X1.2

92033-025

$4.96

92033A

RING-SNAP

92033-032

$4.96

92046

BEARING-NEEDLE,K17X23X13.8X

92046-1059

$21.25

130

BOLT-FLANGED

130C0510

Unavailable

610

ROLLER,4X6

610A0406

$4.31

610A

ROLLER,4X10

610A0410

$4.31
