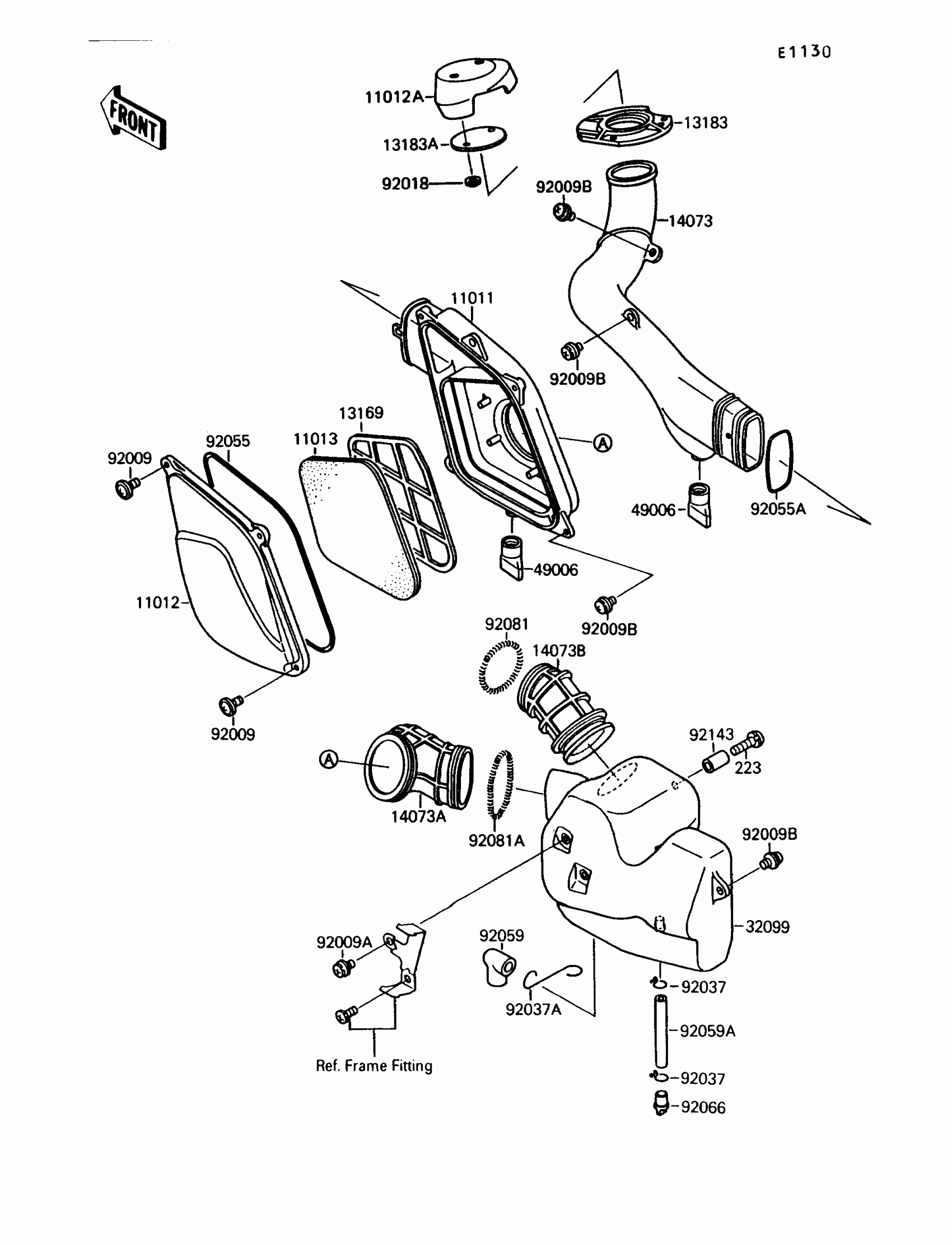

Kawasaki Mojave 250 Air Filter Diagram

#

Description
Price

11011

CASE-AIR FILTER

11011-1227

Unavailable

11012

CAP,AIR FILTER

11012-1524

Unavailable

11012A

CAP,SNORKL DUCT

11012-1537

$25.39

11013

ELEMENT-AIR FILTER

11013-1145

$17.04

13169

PLATE,ELEMENT

13169-1689

Unavailable

13183

PLATE,SNORKL DUCT

13183-1019

$23.50

13183A

PLATE,SNORKL CAP

13183-1020

$6.88

14073

DUCT,SNORKL

14073-1264

$72.75

14073A

DUCT,CHAMBER-AIRFILTER

14073-1266

$31.29

14073B

DUCT,CARBURETER-CHAMBER

14073-1267

$34.18

32099

CASE,AIR CHAMBER

32099-1086

$93.53

49006

BOOT

49006-1199

$8.64

92009

SCREW,6X18,BLACK

92009-1181

$2.80

92009A

SCREW,6X14

92009-1275

$4.60

92009B

SCREW,6X16

92009-1276

$4.80

92018

NUT,PUSH,3MM

92018-005

$2.76

92037

CLAMP,TUBE

92037-147

$7.34

92037A

CLAMP

92037-1821

$6.45

92055

RING-O,AIR FILTER CASE

92055-1344

$16.66

92055A

RING-O,57.3X3

92055-1345

$6.45

92059

TUBE,BREATHER

92059-1693

$12.50

92059A

TUBE,7X10X100

92059-1736

$4.46

92066

PLUG,DRAIN

92066-1211

$8.51

92081

SPRING,COIL

92081-1177

$9.95

92081A

SPRING,DUCT

92081-1638

$9.80

92143

COLLAR

92143-1046

$5.00

223

SCREW-PAN-WS-CROS

223C0635

$3.84
