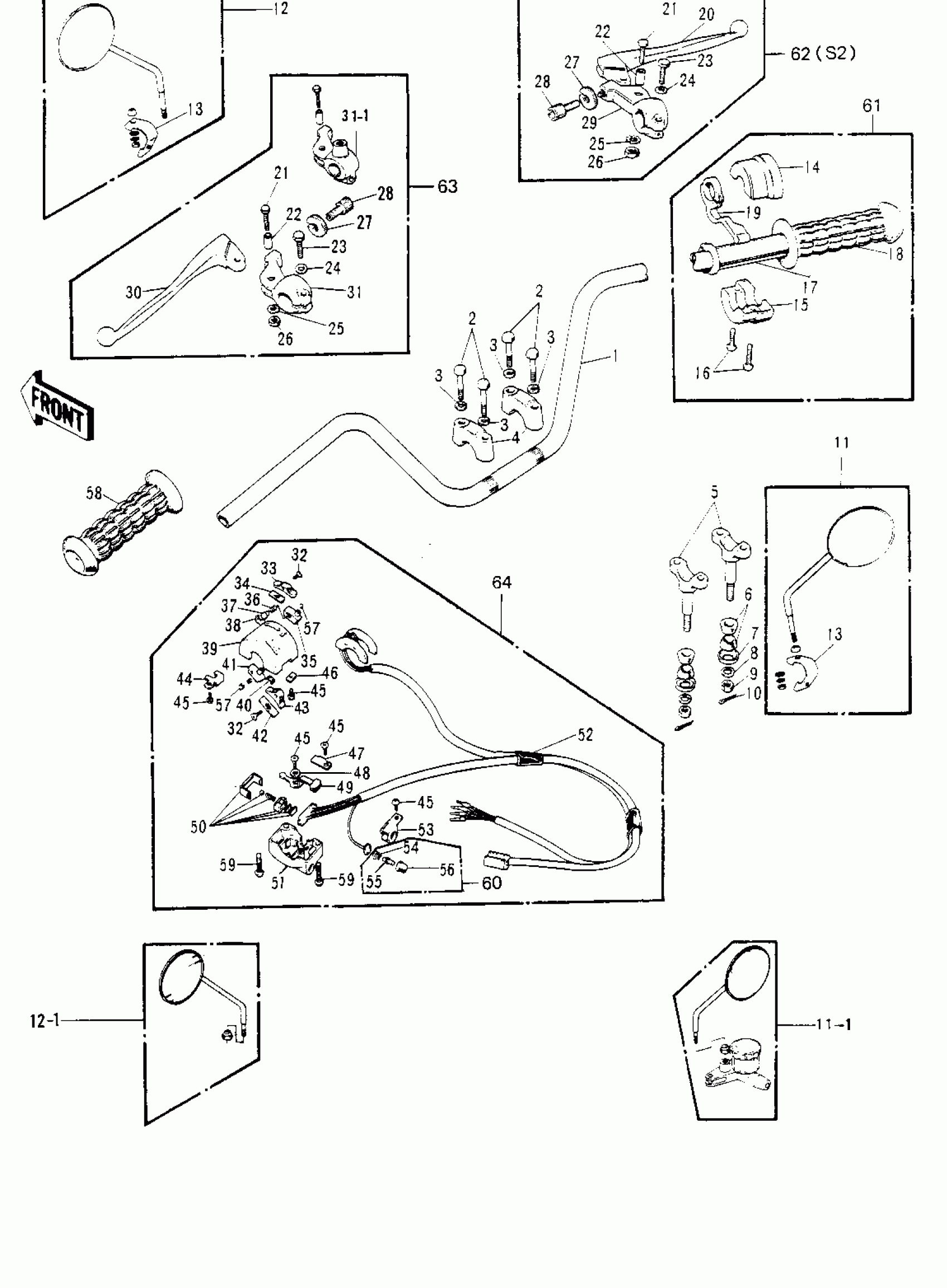

Kawasaki Mach II HANDLEBAR Diagram
#
1
HANDLEBAR
46003-026
Unavailable
1
HANDLEBAR
46003-030
Unavailable
2
BOLT 8X38
92001-1405
Unavailable
2
BOLT 8X38
92001-1405
Unavailable
3
WASHER SPRING 8MM
461F0800
Unavailable
4
HOLDER-HANDLE,UPP
46012-008
Unavailable
5
HOLDER-HANDLE,LWR
46012-010
Unavailable
6
DAMPER,HANDLE HOLDER
92075-039
Unavailable
7
PLATE,HANDLE HOLDER
46016-003
Unavailable
8
WASHER SPRING 10MM
461F1000
Unavailable
9
UNAVAILABLE IN PRICE BOOK
31381000
Unavailable
10
PIN-SNAP,8MM
554A0800
Unavailable
11
REAR VIEW MIRROR R.H.
56002-024
Unavailable
11-1
MIRROR-ASSY,RH
56002-020
Unavailable
12
REAR VIEW MIRROR LH
56003-016
Unavailable
12-1
MIRROR-ASSY,LH
56003-009
Unavailable
13
BRACKET
56006-001
Unavailable
14
CASE-R.H UPPER
46041-006
Unavailable
15
CASE-R.H LOWER
46023-006
Unavailable
16
SCREW PAN HEAD 5X22
220B0522
Unavailable
17
GRIP ASSY-THROTTLE
46019-017
Unavailable
17
GRIP ASSY-THROTTLE
46019-023
Unavailable
18
RUBBER-R.H GRIP
46061-012
Unavailable
19
LEVER-STARTER
46096-007
Unavailable
20
LEVER-GRIP,FRONT BRAKE
46058-004
Unavailable
21
BOLT HEX HEAD 5X20
92007-020
Unavailable
22
COLLAR LEVER
46059-011
Unavailable
23
BOLT,6X22
110N0622
Unavailable
23
BOLT HEX HEAD 6X25
110N0625
Unavailable
24
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
25
WASHER LOCK 5MM
464H0500
Unavailable
26
NUT-HEX,5MM
312B0500
Unavailable
27
NUT,CABLE ADJUST LOCK,8MM
46056-005
Unavailable
28
SCREW ADJUST
46055-006
Unavailable
29
HOLDER-FR BRAKE LEVER
46060-006
Unavailable
30
LEVER-GRIP,CLUTCH
46092-015
Unavailable
30
LEVER-GRIP,CLUTCH
46092-015
Unavailable
31
HOLDER,CLUTCH LEVER
46094-010
Unavailable
31
HOLDER,F.BLACK
46094-011-21
Unavailable
32
SCREW CNTSNK HD 3X8
221B0308A
Unavailable
33
KNOB-L.H SWITCH,B
46044-008
Unavailable
34
SPRING-L.H SW KNOB,B
46031-006
Unavailable
35
SWITCH-L.H,A
46089-005
Unavailable
36
SPRING-L.H SWITCH
46031-007
Unavailable
37
CONTACT-L.H SWITCH
46079-004
Unavailable
38
PLATE-L.H SW CNTACT,B
46080-004
Unavailable
39
CASE-L.H UPPER
46086-014
Unavailable
40
PLATE-L.H SW CNTACT,A
46080-003
Unavailable
41
SWITCH-L.H,B
46089-006
Unavailable
42
SPRING L.H SW KNOB
46031-003
Unavailable
43
KNOB-L.H SWITCH
46044-011
Unavailable
44
HOLDER-L.H SW UPPER,A
46085-018
Unavailable
45
SCREW PAN HEAD 3X5
220B0305A
Unavailable
46
HOLDER-L.H SW UPPER,B
46085-019
Unavailable
47
HOLDER-L.H SW LOWER,A
46085-016
Unavailable
48
WASHER
92095-010
Unavailable
49
KNOB-SWITCH
46044-007
Unavailable
50
SLIDE BLOCK AY-L.H SW
46089-007
Unavailable
51
CASE-L.H LOWER
46077-016
Unavailable
52
WIRING HARNESS-L.H SW
46082-018
Unavailable
53
HOLDER-L.H SW LOWER,B
46085-017
Unavailable
54
SWITCH,PUSH BUTTON
27010-1009
Unavailable
55
SWITCH,PUSH BUTTON
27010-1009
Unavailable
56
SWITCH,PUSH BUTTON
27010-1009
Unavailable
57
CONTACT-L.H SWITCH
46079-004
Unavailable
58
RUBBER-L.H GRIP
46075-017
Unavailable
59
SCREW PAN HEAD 5X22
220B0522
Unavailable
60
SWITCH,PUSH BUTTON
27010-1009
Unavailable
61
CASE ASSY-R.H
46018-018
Unavailable
62
LEVER ASSY,FRNT BRAKE
46021-025
Unavailable
63
LEVER ASSY-CLUTCH
46076-026
Unavailable
63
LEVER-ASSY-GRIP,CLUTCH
46076-044
Unavailable
64
CASE ASSY-L.H
46091-005
Unavailable
